FiTech EFI 4 600 HP Bright Aluminum w/ In-Tank Module (36301)
KEY FEATURES AND BENEFITS:
600 HP Rating: Suitable for a broad range of street and mild performance engines.
850 CFM Throttle Body: Delivers ample airflow for optimal engine performance.
In-Tank Fuel Pump Included: Provides consistent fuel pressure and simplifies installation.

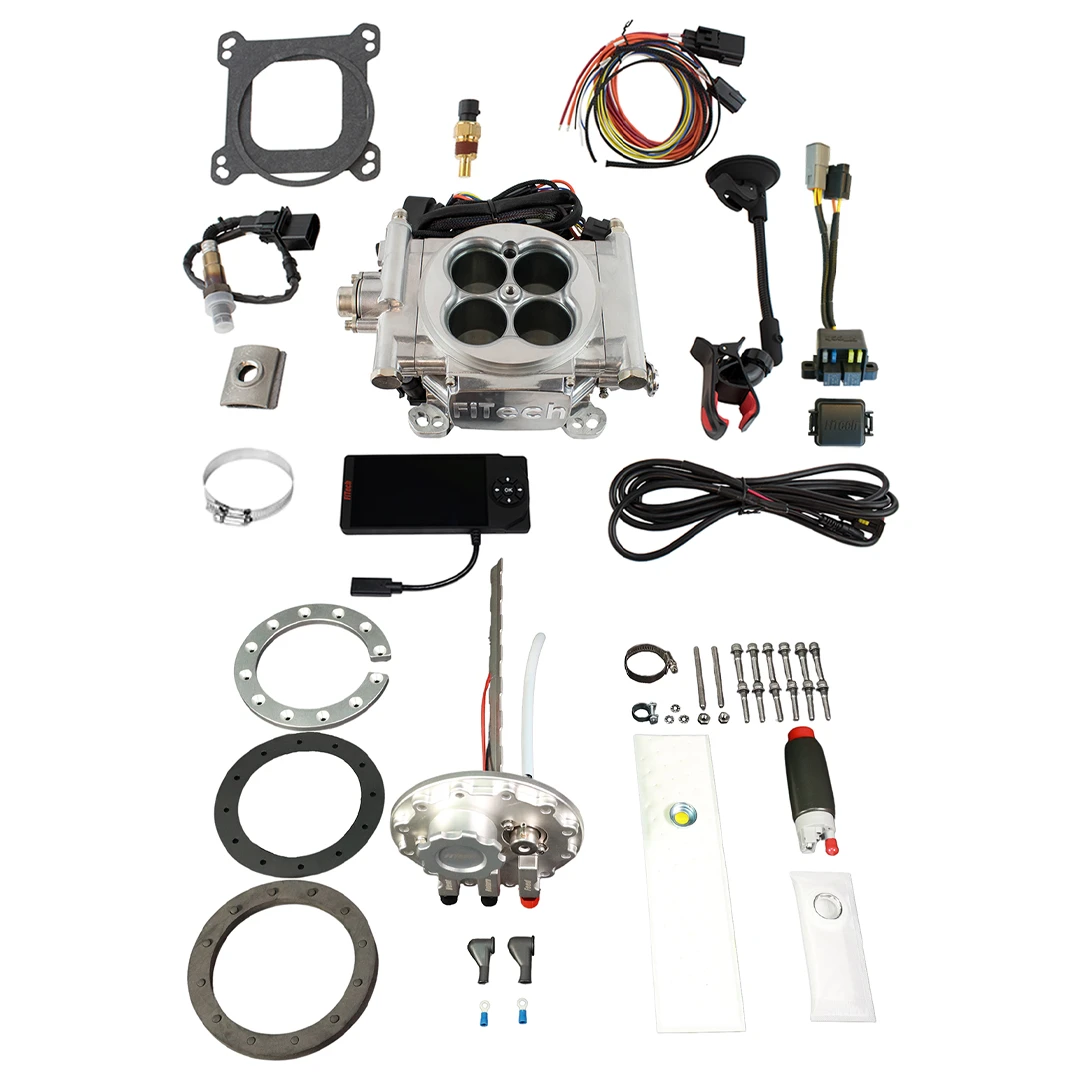

Complete Kit: Includes all necessary sensors, wiring harness, and components for a full EFI conversion.
Timing Control Compatible: Allows for precise ignition timing adjustments.
Multiple Fuel Compatibility: Designed to run on Alcohol, Gasoline, Methanol, and Flex fuel.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
Power Adder Compatible: No
ECU Included: Yes
Fuel Pump Included: Yes (In-tank)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore
Airflow Rate: 850 CFM
Injector Size: 80 lbs/hr
Remove Existing Carburetor: Disconnect fuel lines, linkage, and remove the carburetor.
Install Throttle Body: Mount the FiTech throttle body onto the intake manifold.
Install Fuel Pump: Place the in-tank fuel pump within the fuel tank.
Connect Wiring Harness: Connect the wiring harness to the ECU and engine sensors (MAP, IAT, TPS, O2).
Install Sensors: Install the included sensors in their designated locations.
Connect Fuel Lines: Connect fuel lines from the fuel pump to the throttle body, including the fuel pressure regulator.
Connect ECU Power and Ground: Connect the ECU to a 12V power source and ground.
Initial Setup: Use the calibration module to enter basic engine parameters.
Start Engine: Start the engine and allow the self-tuning ECU to calibrate.
Fine-Tune (if needed): Make adjustments as necessary using the calibration module.
BENEFITS OF USING THE FITECH EFI 4 600 HP BRIGHT ALUMINUM W/ IN-TANK MODULE (36301):
Improved Fuel Efficiency: Offers better fuel efficiency compared to carburetors.
Enhanced Performance: Delivers improved engine performance and throttle response.
Simplified Start Procedures: Simplified cold start and hot restart procedures.
Reduced Emissions: Helps reduce emissions for a cleaner operation.
Consistent Performance: Ensures consistent performance across varying altitudes and temperatures.
Easier Tuning: Simplifies engine tuning with the self-tuning ECU.
Complete Sensor Kit: Includes a complete sensor kit for accurate engine data.
Universal Fit: Universal fit for a wide range of engine types.
Fuel Compatibility: Designed to work with multiple fuel types.
Product identification
- Brand: FiTech
- Model / MPN: 36301
