FiTech fuel pump details

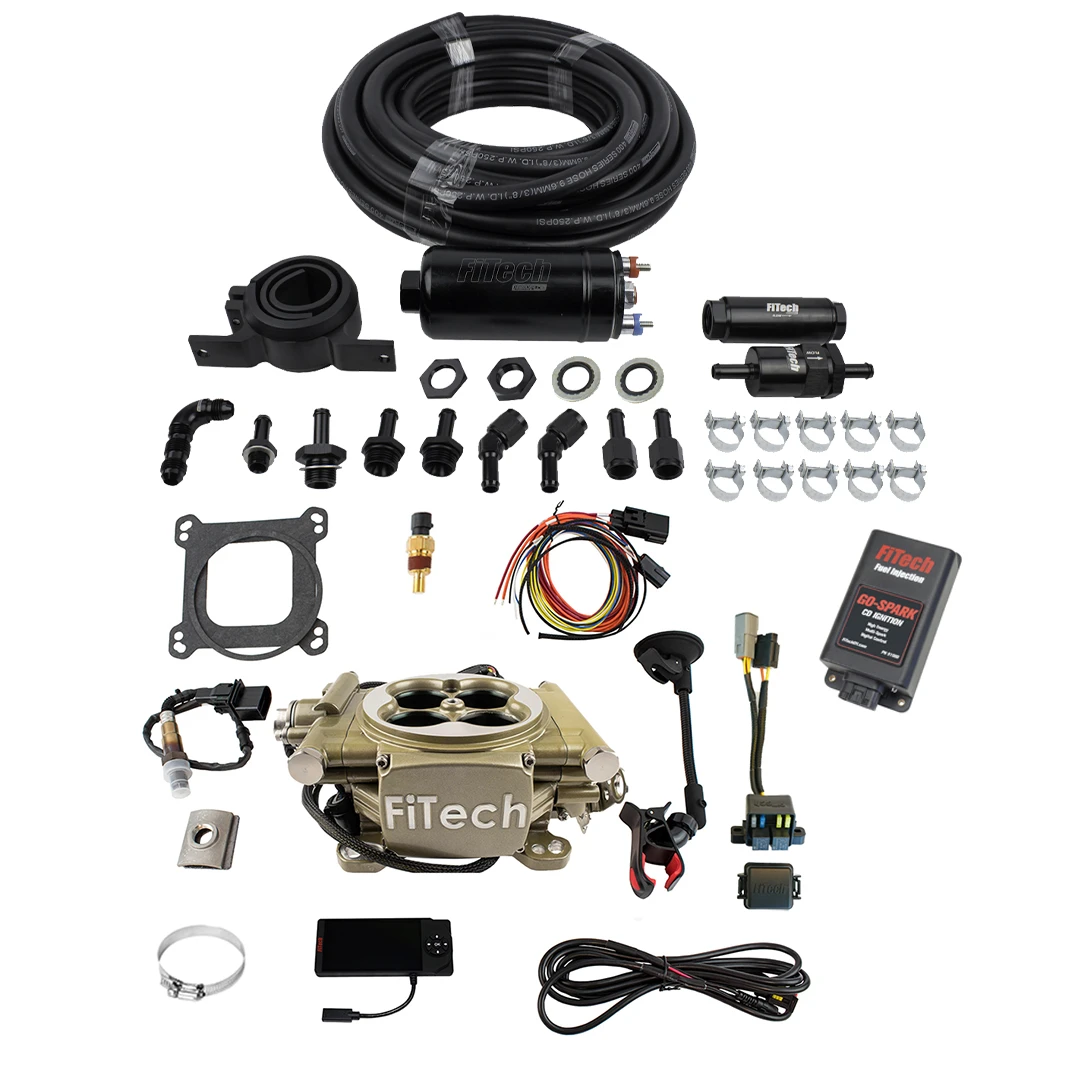

FiTech Easy Street EFI Gold w/ Inline Fuel Pump & CDI Box (93105)
The FiTech Easy Street EFI Gold w/ Inline Fuel Pump & CDI Box (93105) provides a complete electronic fuel injection solution for carbureted engines. This kit offers a straightforward way to convert to EFI, improving engine performance, idle quality, and fuel efficiency. It includes a 600 HP throttle body, an inline fuel pump, and a Go-Spark CD ignition box, providing everything needed for a seamless upgrade.
KEY FEATURES AND BENEFITS:
Self-Learning ECU: Simplifies tuning by automatically adjusting fuel mixtures for optimal performance.
High-Performance Throttle Body: The 600 HP throttle body replaces traditional carburetors, improving throttle response and smooth operation.
Complete Fuel and Ignition Solution: Includes an inline fuel pump and Go-Spark CD ignition box to enhance combustion and power output.
Easy Installation: Designed for square-bore intake manifolds for straightforward setup.
Fuel Injection Style: Throttle body
Maximum Horsepower: 600 HP
Fuel Pump Flow Rate: 255 lph
Injector Size: 80 lbs/hr
Throttle Body Mounting: 4-barrel square bore
ECU: Self-learning, user-tunable
Ignition: Go-Spark CD ignition box
Metering Style: Speed density (MAP-N) or speed throttle (Alpha-N)
Display: 4.5-inch handheld
Fuel Type: Gasoline, alcohol, methanol, flex fuel
Preparation: Remove the existing carburetor and ensure the intake manifold surface is clean.
Installation: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
Fuel System: Install the inline fuel pump, fuel filters, and connect fuel lines to the throttle body and fuel tank.
Wiring: Connect the wiring harness to the vehicle’s electrical system, including the battery, ignition, and sensors.
Sensor Installation: Install the wideband O2 sensor, MAP sensor, IAT sensor, and coolant sensor.
Ignition Hookup: Connect the Go-Spark CD ignition box to the distributor and power source.
ECU Setup: Connect the handheld controller and input basic engine parameters.
Initial Start: Start the engine and allow the self-learning ECU to begin adjusting fuel mixtures.
Fine Tuning: Use the handheld controller to monitor and make any necessary adjustments.
BENEFITS OF USING THE FITECH EASY STREET EFI GOLD W/ INLINE FUEL PUMP & CDI BOX (93105):
Improved Engine Performance: Enhances throttle response and overall power.
Enhanced Fuel Efficiency: Results in smoother idle and better fuel economy.
Simplified Tuning: Self-learning capabilities make adjustments easier.
Complete Kit: Provides everything needed for an easy conversion from carburetor to EFI.
Enhanced Ignition Performance: With the included Go-Spark CD ignition box.
Gold Finished Throttle Body: Offers a classic look.
850 CFM Airflow Capacity: For high-performance applications.
Wideband O2 Sensor: For precise fuel mixture monitoring.
Integrated IAC Motor: Ensures stable idle control.
Comprehensive Wiring Harness: For straightforward connections.
Included Fuel Pressure Regulator: Maintains consistent fuel pressure.
Multiple Spark Discharge: Below 2500 RPM provided by the Go-Spark ignition.
Multi-Fuel Capability: Ability to use various fuel types.
Product identification
- Brand: FiTech
- Model / MPN: 93105
