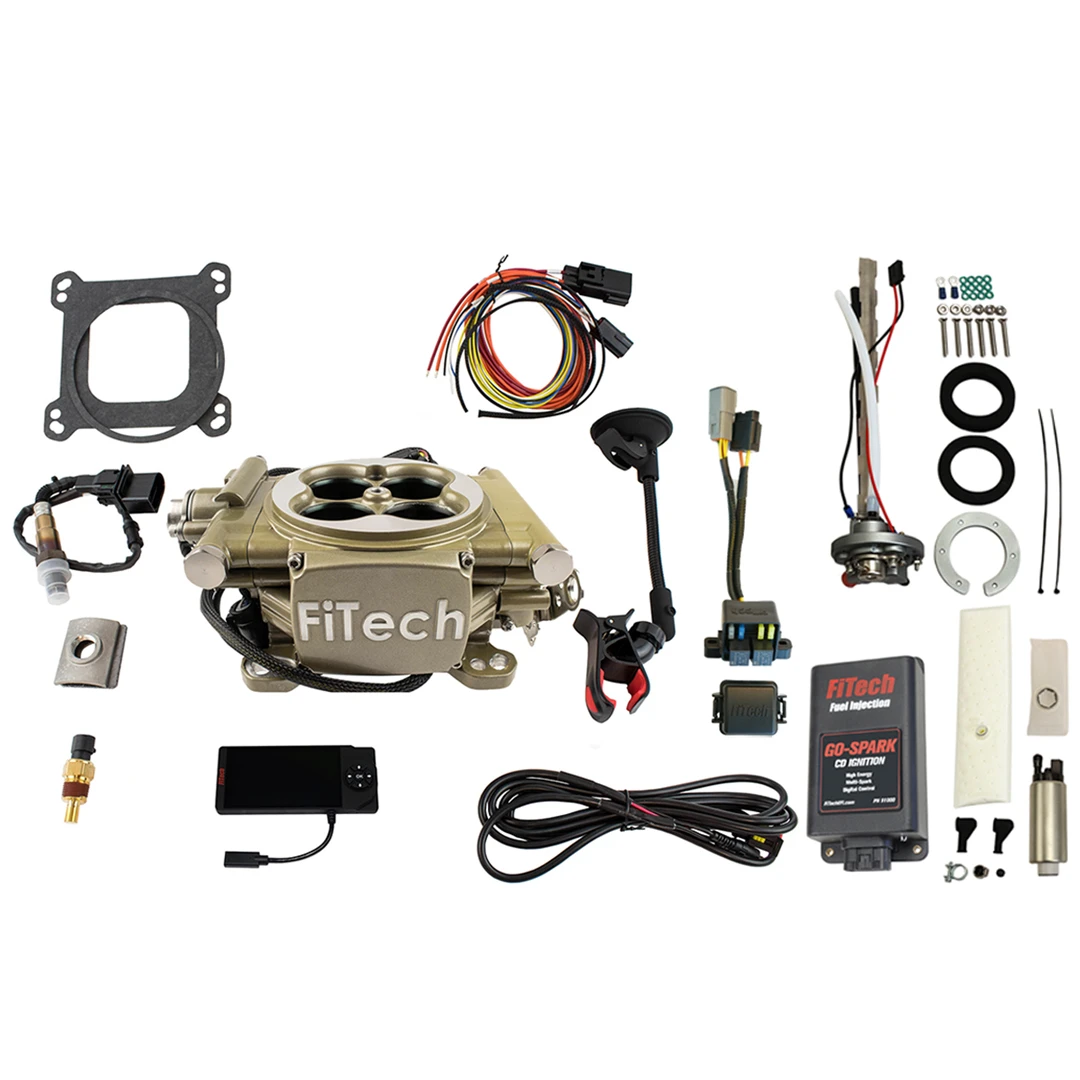

FiTech Easy Street 600HP Classic Gold EFI w/340 LPH Pump & CDI (96205)
KEY FEATURES AND BENEFITS:
Converts carbureted engines to electronic fuel injection for improved performance and efficiency.
Go-Spark CDI ignition system enhances spark performance for better starting and throttle response.
Handheld controller allows for easy monitoring and adjustments.
Rated for up to 600 horsepower.
850 cfm airflow.
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 600
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Ignition System Included: Ignition box
User Interface Included: 4.5 in. display
Metering Style: Speed density
Throttle Body Material: Cast aluminum
Throttle Body Color: Gold
Injector Size (lbs/hr): 80 lbs./hr.
Airflow Rate (cfm): 850 cfm
Remove the Existing Carburetor: Disconnect fuel lines, vacuum lines, and linkage from the carburetor. Remove the carburetor from the intake manifold.
Install the FiTech Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
Install the Fuel System: Install the chosen fuel pump (in-tank or inline) and connect the fuel lines according to the instructions.
Connect the Wiring Harness: Connect the wiring harness to the throttle body, sensors, and ignition system.
Install the Oxygen Sensor: Install the wideband O2 sensor in the exhaust system.
Connect the Handheld Controller: Connect the handheld controller to the wiring harness.
Initial Setup: Follow the instructions on the handheld controller to perform the initial setup and calibration.
Fine Tuning: Use the handheld controller to fine-tune the settings as needed.
BENEFITS OF USING THE FITECH EASY STREET 600HP CLASSIC GOLD EFI W/ 340 LPH PUMP & CDI (96205):
Improved fuel efficiency compared to carbureted systems.
Enhanced engine performance and throttle response.
Simplified tuning with the self-learning ECU.
More consistent performance across varying conditions.
Reliable starting.
80 lbs/hr fuel injectors.
44mm venturi diameter.
Wideband O2 sensor included.
4-barrel square bore throttle body.
Fuel pressure regulator included.
MAP, IAT, TPS, and IAC sensors included.
Product identification
- Brand: FiTech
- Model / MPN: 96205
