FiTech Classic Black 650 HP EFI w/ 340 LPH Pump & CDI Box (96721)

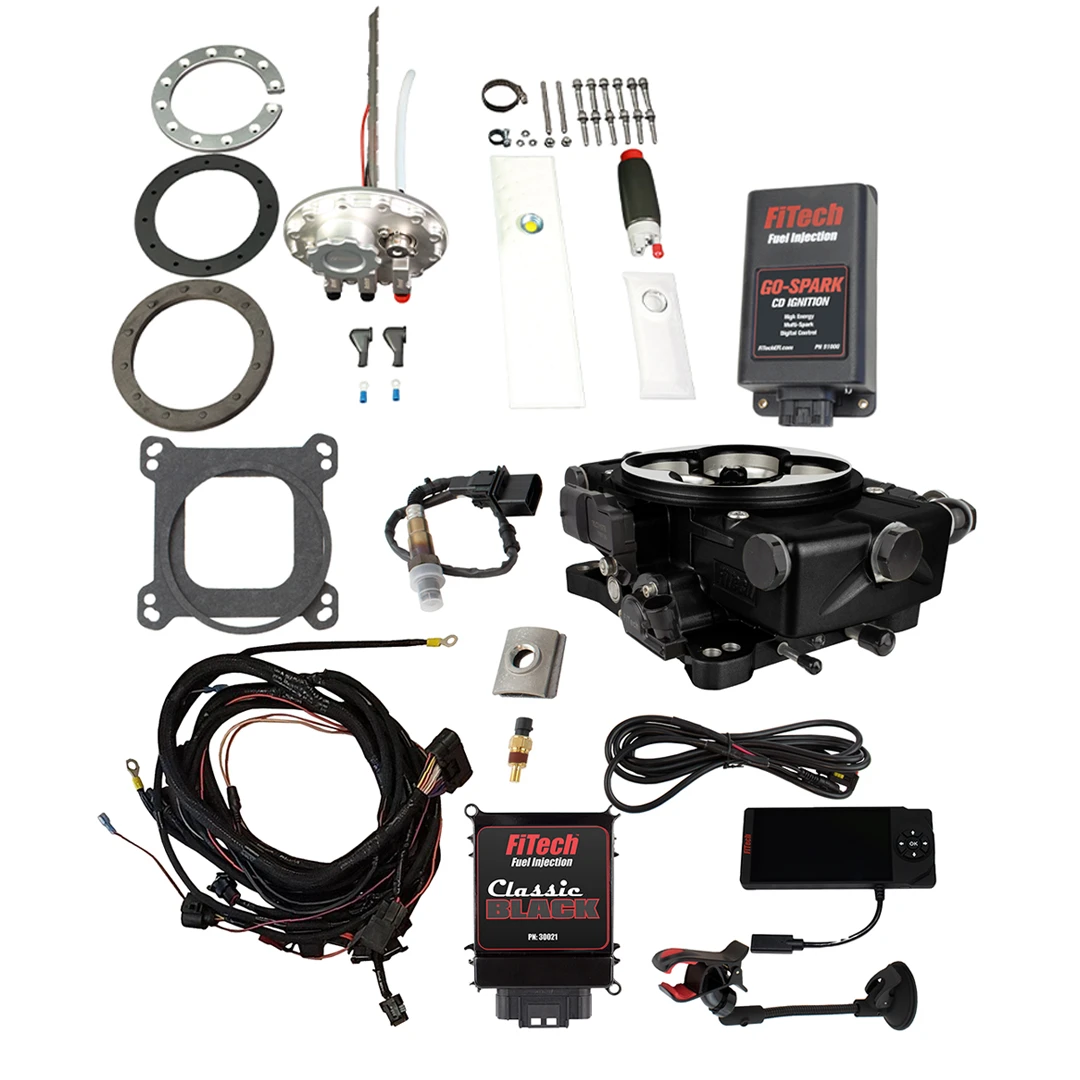

The FiTech Classic Black 650 HP EFI w/ 340 LPH Pump & CDI Box (96721) is a comprehensive electronic fuel injection conversion kit designed to replace traditional carburetors. This master kit includes a throttle body, in-tank fuel pump module, and Go-Spark CDI ignition, providing a complete solution for improved engine performance and fuel efficiency. Ideal for engines producing up to 650 horsepower, this system combines classic aesthetics with modern EFI technology.
KEY FEATURES AND BENEFITS:
Complete EFI Conversion: Includes throttle body, fuel pump, and ignition for a full upgrade.
650 HP Rating: Supports engines up to 650 horsepower.
Self-Tuning ECU: Simplifies setup and optimizes engine performance.
Go-Spark CDI Ignition: Enhances spark performance for improved combustion.
Classic Look: Designed to resemble a traditional carburetor.
Fuel Compatibility: Works with gasoline, alcohol, methanol, and flex fuel.
Speed Density Metering: Uses a MAP sensor to calculate engine load.
Maximum Horsepower: 650 HP
Throttle Body: 4-barrel square bore (4150 flange), 850 CFM, 44mm venturi
Injectors: 80 lbs/hr
Fuel Pump: In-tank module, returnless
Ignition: Go-Spark CDI
ECU: Included, self-tuning
Display: 4.5-inch handheld
Sensors: MAP, IAT, TPS, Oxygen
Remove Existing Carburetor: Disconnect and remove the existing carburetor and related components.
Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the 4150 flange.
Install Fuel Pump: Place the in-tank fuel pump module into the fuel cell or custom tank.
Connect Wiring Harness: Connect the provided wiring harness to the engine sensors and ignition system.
Install Go-Spark Ignition: Install the CDI ignition box and connect it to the distributor.
Connect Sensors: Install the MAP, IAT, TPS, and oxygen sensors.
Connect Fuel Lines: Connect the fuel lines from the pump to the throttle body.
Power Connections: Connect the power and ground wires to the vehicle's electrical system.
Initial Setup: Use the handheld display to input engine parameters and start the self-tuning process.
Fine-Tuning: Allow the ECU to self-tune, and make adjustments as needed using the display.
BENEFITS OF USING THE FITEC CLASSIC BLACK 650 HP EFI W/ 340 LPH PUMP & CDI BOX (96721):
Improved fuel efficiency compared to traditional carburetors.
Enhanced engine performance and throttle response.
Simplified starting and drivability in various conditions.
Reduced risk of flooding and vapor lock.
Modern EFI technology with a classic aesthetic.
Wide range of fuel compatibility.
Dual bolt pattern throttle body for easy intake manifold mounting.
Internal fuel pressure regulator within the fuel pump module.
User interface via a 4.5-inch handheld display.
850 CFM airflow rate.
80 lbs/hr fuel injectors.
Cast aluminum throttle body.
Black throttle body finish.
Product identification
- Brand: FiTech
- Model / MPN: 96721
