FiTech BB Chevy Victor JR 454-O EFI Intake Manifold (30458-1)
The FiTech BB Chevy Victor JR 454-O EFI Intake Manifold (30458-1) is a complete electronic fuel injection solution designed specifically for Big Block Chevy engines with oval port cylinder heads. This system allows for the conversion from a traditional carburetor to modern EFI, offering enhanced performance and improved fuel management. This kit provides a comprehensive solution, including all necessary components for a streamlined installation.
KEY FEATURES AND BENEFITS:
Integrated ECU: The ECU is directly within the throttle body, simplifying the installation process.

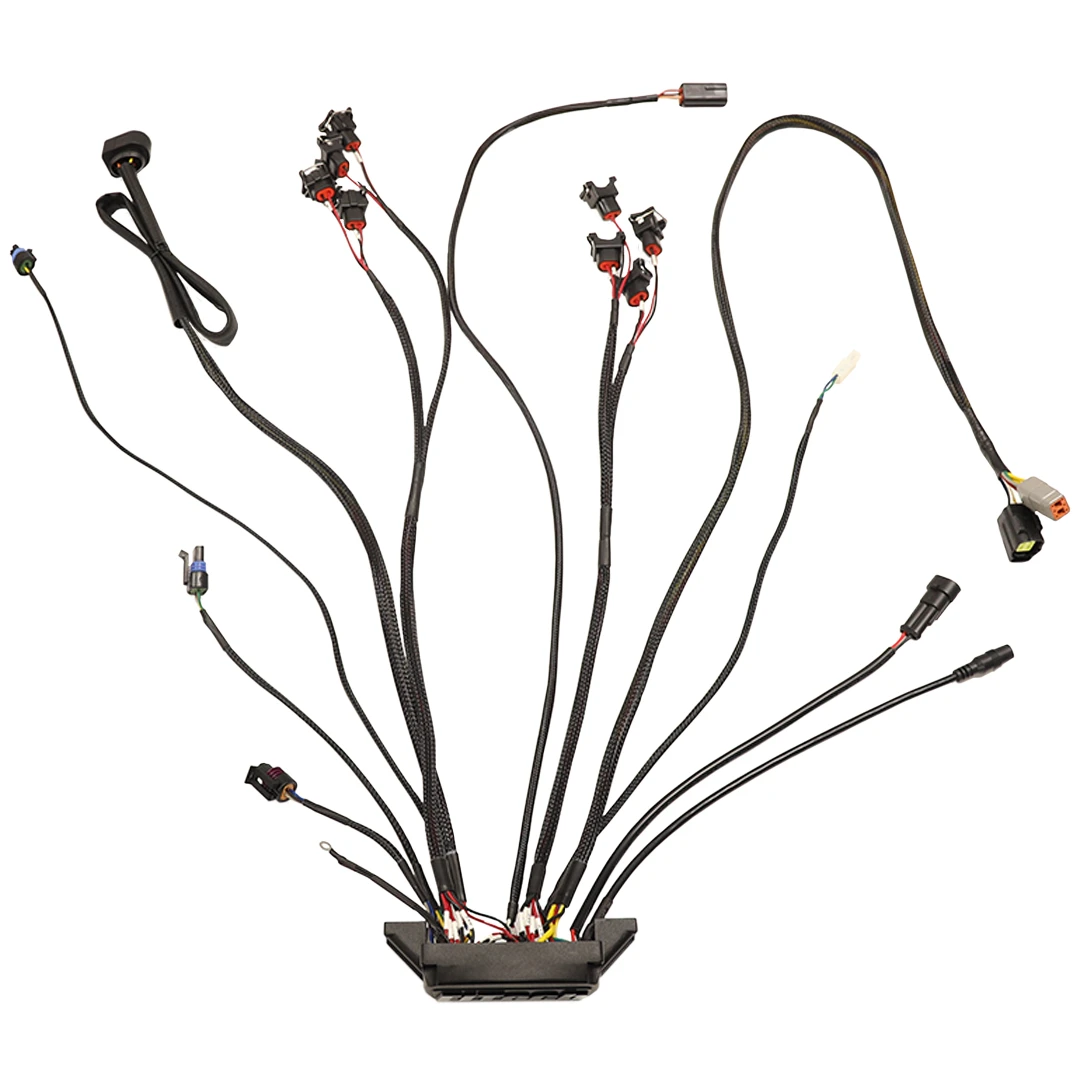

Complete Kit: Includes an intake manifold, fuel rails, injectors, sensors, wiring harness, and hand-held touchscreen tuner.
User-Friendly Tuner: The hand-held tuner eliminates the need for laptop tuning, allowing for straightforward adjustments.
Engine Compatibility: Big Block Chevy with Oval Port Cylinder Heads.
Horsepower Range: 500-1050 HP.
ECU: Integrated into Throttle Body.
Injector Type: 8 High Impedance Injectors.
Tuning: Hand-held Touchscreen.
Intake Manifold: Included, Oval Port Design.
Wiring: Simplified Harness.
Preparation: Remove the existing carburetor and intake manifold.
Installation: Install the FiTech intake manifold onto the engine.
Fuel System: Mount the fuel rails and injectors, and connect the fuel lines.
Sensor Installation: Install all provided sensors (MAP, TPS, etc.) as per the instructions.
Wiring: Connect the wiring harness to the engine sensors and power source.
ECU Connection: Ensure the integrated ECU is properly connected.
Initial Setup: Use the hand-held tuner to input engine parameters.
Tuning: Make necessary adjustments using the hand-held tuner.
Testing: Start the engine and verify proper operation.
Final Adjustments: Fine-tune as needed for optimal performance.
BENEFITS OF USING THE FITECH BB CHEVY VICTOR JR 454-O EFI INTAKE MANIFOLD (30458-1):
Improved Fuel Efficiency: Offers better fuel efficiency compared to a carburetor, potentially lowering fuel consumption.
Simplified Installation: The integrated ECU simplifies the installation process.
Easy Adjustments: The hand-held tuner allows for easy adjustments without needing a laptop.
Modern Upgrade: Provides a contemporary enhancement for classic Big Block Chevy engines.
Wide Horsepower Range: Designed for various horsepower capabilities.
Simplified Wiring: Reduced installation time with an easy-to-install wiring harness.
Oval Port Manifold: Matches the cylinder heads for optimal performance.
Direct Replacement: Designed for straightforward installation.
Product identification
- Brand: FiTech
- Model / MPN: 30458-1
