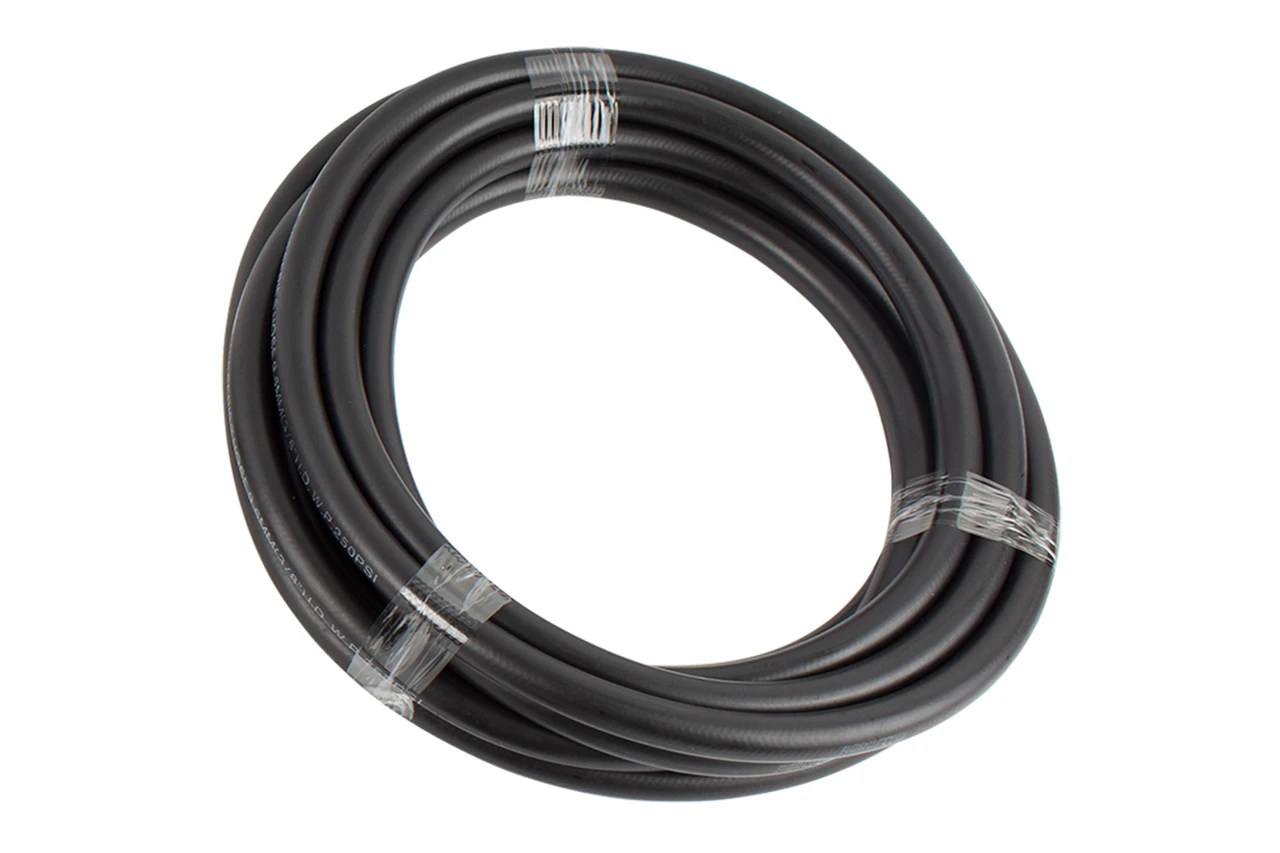

FiTech -8 High Pressure Fuel Hose (80151)
The FiTech -8 High Pressure Fuel Hose (80151) provides a reliable and flexible solution for various fluid transfer needs. This hose, identified by FiTech code 80151 when sold per foot, offers dependable performance for fuel, lubricating oils, air, and water applications. Its robust construction and wide temperature range make it suitable for a broad spectrum of uses.
KEY FEATURES AND BENEFITS:
Versatile Use: Designed for gasoline, fuel, lubricating oils, air, and water.
Temperature Range: Operating temperature from -40°F to 300°F.
High Pressure Rating: Working pressure of 245 psi, with a burst pressure of 1000 psi.
Durable Construction: Includes an AQP inner tube, textile reinforcement, and an elastomer cover.
Flexible Installation: Compatible with reusable hose fittings.
Sold Per Foot: Allows for purchase of the exact required length.
Conductive: Enhances safety in various applications.
Inside Diameter (ID): 0.5 inches
Outside Diameter (OD): 0.81 inches
Tube Wall Thickness: 0.155 inches
Minimum Bend Radius: 4 inches
Weight: 0.19 lb per foot
Construction: 1 Ply Braid
Lay Line Style: Ink Jet
Measure Length: Determine the required length of hose for your application.
Cut Hose: Cut the hose to the measured length.
Select Fittings: Choose appropriate reusable fittings for the hose and connections.
Attach Fittings: Securely attach the fittings to the hose ends, ensuring a leak-free connection.
Install Hose: Route the hose carefully to avoid sharp bends or abrasions.
Test Installation: Pressurize the system and check for leaks to ensure proper installation.
BENEFITS OF USING THE FITECH -8 HIGH PRESSURE FUEL HOSE (80151):
Consistent fluid transfer under varied operating conditions.
High pressure and temperature resistance for demanding applications.
Flexible construction allows ease of installation in tight spaces.
Compatibility with reusable fittings enables easy modifications and repairs.
Versatile usage in many different situations.
Conductivity adds an extra layer of safety.
Textile Reinforcement: Enhances structural integrity.
AQP Inner Tube: Provides fluid compatibility.
Elastomer Cover: Offers exterior protection.
-8 Dash Sizing: Standard size for compatibility.
Black Color: Aesthetic and practical.
Bulk Packaging: Convenient for various applications.
Standard Abrasion Resistance: Protects against wear.
Conditional Temperature Range: Suitable for air and water.
Product identification
- Brand: FiTech
- Model / MPN: 80151
