FiTech efi fuel tank details
FiTech 75-77 Camaro/75-78 Firebird 340 LPH EFI Fuel Tank Kit (58019)

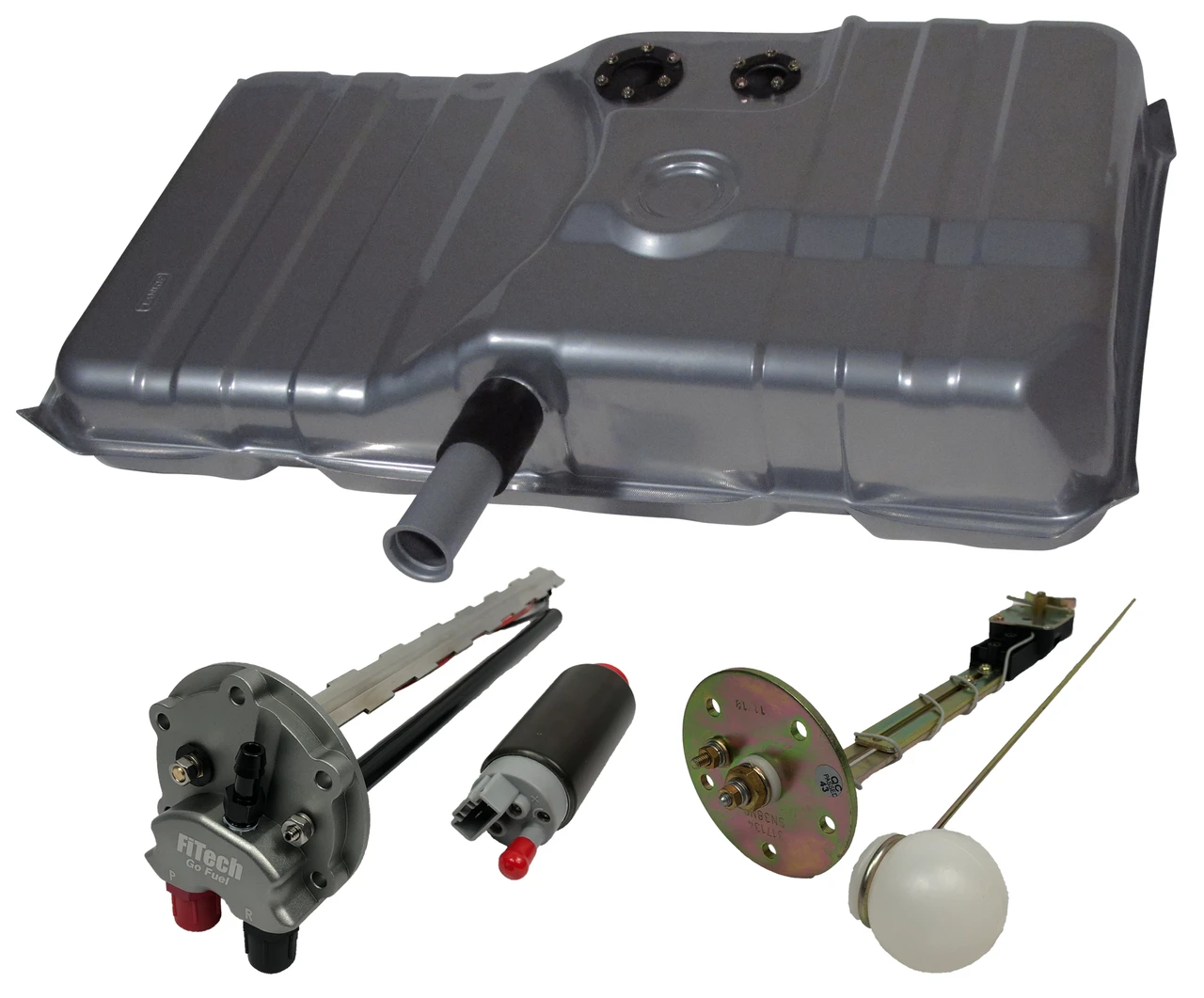

The FiTech 75-77 Camaro/75-78 Firebird 340 LPH EFI Fuel Tank Kit (58019) is designed to simplify your EFI conversion for 1975-1977 Chevrolet Camaros and 1975-1978 Pontiac Firebirds. This comprehensive kit provides a complete fuel system solution, including a 21-gallon steel tank, a high-flow 340 LPH fuel pump, and all necessary components for a seamless installation.
KEY FEATURES AND BENEFITS:
Ready-to-Install EFI System: Eliminates the need for complex modifications.
Baffled Tank Design: Prevents fuel starvation during aggressive driving conditions.
Secure Connections: -6 AN ports provide leak-free connections.
Factory Gauge Compatibility: The sending unit allows for proper gauge function.
Vehicle Compatibility: 1975-1977 Chevrolet Camaro, 1975-1978 Pontiac Firebird
Fuel Tank Capacity: 21 gallons
Fuel Pump Flow Rate: 340 LPH (90 GPH)
Horsepower Rating: Up to 800 HP
Fuel Tank Material: Steel, silver powdercoated
Fitting Size: -6 AN (Inlet/Outlet)
Sending Unit: Included
Baffled Sump: Yes
Dimensions: 28 × 11 × 47 in
Drain and remove the existing fuel tank from your vehicle.
Install the new FiTech 58019 tank using the provided mounting straps.
Connect the fuel lines to the -6 AN inlet and outlet ports.
Install the sending unit and connect it to the factory gauges.
Connect the fuel pump wiring to the vehicle's electrical system.
Install the filler neck if required.
Fill the tank with fuel and check for leaks.
Test the fuel system and verify proper operation.
BENEFITS OF USING FiTech 75-77 CAMARO/75-78 FIREBIRD 340 LPH EFI FUEL TANK KIT (58019):
Simplified Transition to EFI: Provides a reliable and efficient fuel system.
High-Flow Pump Support: Supports high-performance engines for improved power.
Smooth Integration: Enhances performance and reliability in classic vehicles.
Internal Tank Baffling: For consistent fuel flow during operation.
Recessed Mounting: For the pump and sending unit to provide added clearance.
Direct Fit Design: Specifically tailored for the listed vehicle models.
High-Quality Steel Construction: Durable and robust tank material.
Included Mounting Straps: For secure installation.
Collaborative Design: Partnered with Tanks Inc. for quality assurance.
OEM Style Tank: Maintains original aesthetics while upgrading performance.
Product identification
- Brand: FiTech
- Model / MPN: 58019
FiTech fuel tank kit: see the listed specifications for this model.
