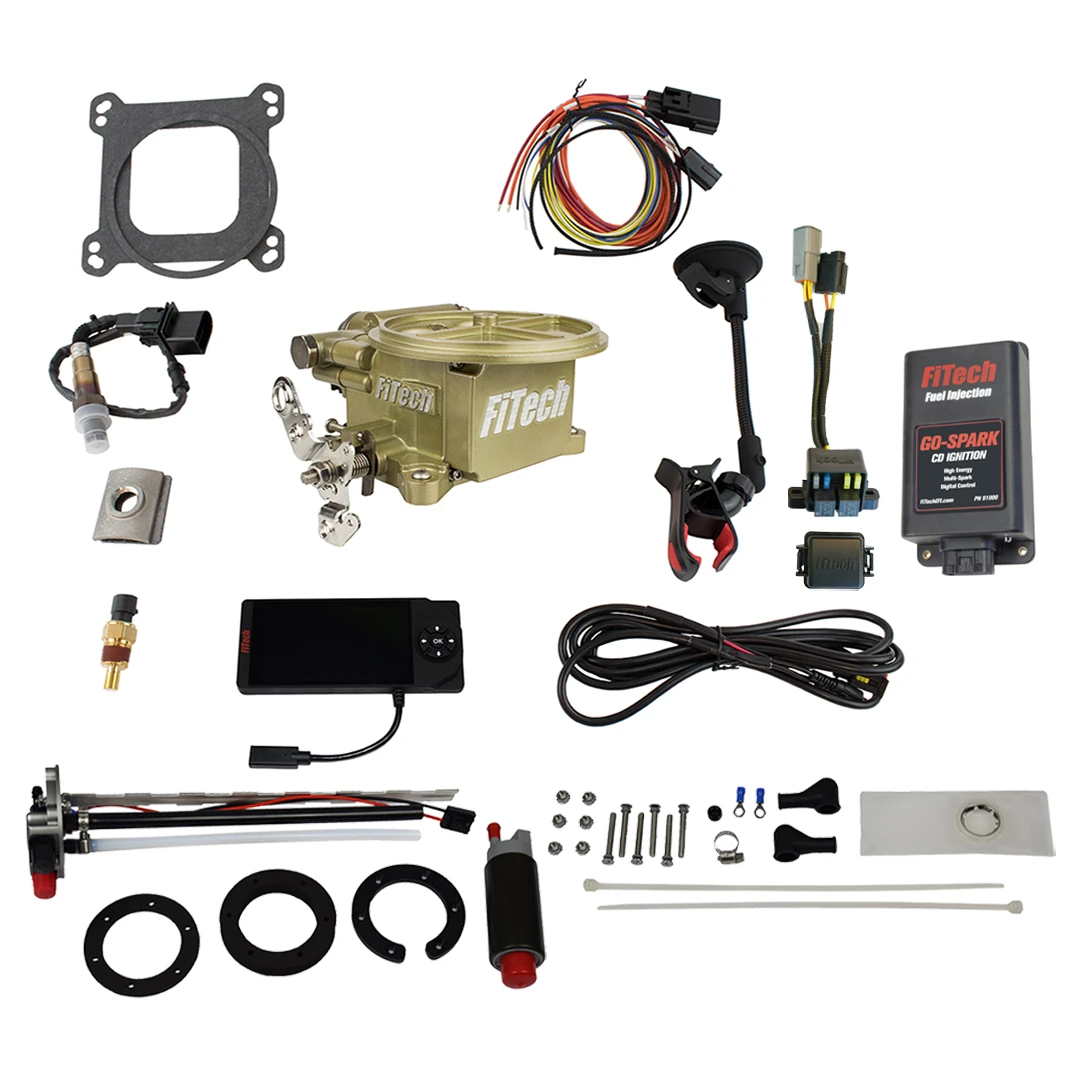

FiTech 2 Barrel EFI 400HP Gold w/ In Tank Retrofit Kit & CDI (93600)
KEY FEATURES AND BENEFITS:
2-Barrel Throttle Body: Features an integrated ECU, simplifying installation with minimal wiring.
Go-Spark CDI Ignition: Enhances spark output, especially at lower RPMs for improved combustion.
Improved Fuel Efficiency: Results in smoother idle and enhanced throttle response.
4.5-Inch Display: Allows for easy monitoring and adjustments during operation.
Maximum Horsepower: 400 HP
Injection Style: Throttle body
Timing Control: Yes
Fuel Pump: Included (in-tank or in-line options)
Metering Style: Speed density (MAP-N)
Throttle Body Flange: Holley 2300
Venturi: 2 x 43mm
Airflow: 500 CFM
Injectors: 62 lbs/hr
Fuel Pump Flow: 340 lph
Display: 4.5 inch
Remove Existing Carburetor: Detach the current carburetor and clean the intake manifold surface.
Install Throttle Body: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
Connect Fuel System: Install the chosen fuel pump (in-tank or in-line) and connect the fuel lines to the throttle body, ensuring proper fuel pressure.
Wire the System: Connect the wiring harness to the throttle body, fuel pump, ignition, power, and tach signals, following the provided instructions.
Install Sensors: Mount the oxygen sensor, coolant sensor, MAP sensor, IAT sensor, and TPS sensor.
Connect Go-Spark Ignition: Install the Go-Spark CDI ignition and connect it to the distributor.
Initial Setup: Use the handheld controller to input basic engine parameters and start the engine.
Self-Tuning Process: Allow the system to self-tune as you drive, making adjustments as needed via the handheld controller.
Final Adjustments: Fine-tune the system as desired using the handheld controller.
BENEFITS OF USING THE FITECH 2 BARREL EFI 400HP GOLD W/ IN TANK RETROFIT KIT & CDI (93600):
Improved Fuel Efficiency: Compared to traditional carburetors.
Enhanced Engine Performance: Offers better throttle response and overall performance.
Smoother Idle: Provides better cold start performance and idle quality.
Simplified Installation: Features self-tuning capabilities for user convenience.
Enhanced Ignition Spark: Improves combustion efficiency.
Integrated ECU: Located within the throttle body for streamlined setup.
Multiple Fuel Pump Options: In-tank and in-line compatibility.
Fuel Type Compatibility: Supports gasoline, alcohol, and methanol.
Holley 2300 Throttle Body Flange: Ensures compatibility with various setups.
Speed Density (MAP-N) Metering Style: For accurate fuel management.
Product identification
- Brand: FiTech
- Model / MPN: 93600
