FiTech 2-Barrel EFI 400HP Classic Gold w/In Tank Retrofit Kit (36001)
KEY FEATURES AND BENEFITS:
Complete EFI Solution: Supports engines up to 400 horsepower.
Throttle Body: 2-barrel design with a Holley 2300 flange and 500 CFM airflow capacity.
Handheld Tuner: Includes a 4.5-inch display for monitoring and adjustments.
Precise Fuel Control: Utilizes speed density (MAP-N) or speed throttle (Alpha-N) metering.
In-Tank Fuel Pump Module: Guarantees reliable fuel supply.
Maximum horsepower: 400 HP
Injection style: Throttle body
Throttle body: 2-barrel, 45mm venturi, 500 CFM, Holley 2300 flange
Injectors: 79 lbs./hr
ECU: Integrated, self-tuning
Display: 4.5-inch handheld tuner
Metering: Speed density (MAP-N) or speed throttle (Alpha-N)
Sensors: Oxygen, TPS, MAP, IAT
Fuel compatibility: Gasoline, alcohol, methanol, flex fuel
Remove Existing Carburetor: Disconnect fuel lines, linkage, and remove the old 2-barrel carburetor.
Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the Holley 2300 flange.
Install Fuel Pump: Place the in-tank fuel pump module in your fuel tank.
Connect Wiring Harness: Link the provided wiring harness to the necessary sensors and power sources.
Install Sensors: Mount the oxygen, TPS, MAP, and IAT sensors.
Connect Display: Plug in the handheld tuner display.
Initial Setup: Follow the on-screen prompts on the handheld tuner for initial configuration.
Drive and Monitor: Drive the vehicle and monitor performance using the handheld tuner.
BENEFITS OF USING THE FITECH 2-BARREL EFI 400HP CLASSIC GOLD W/IN TANK RETROFIT KIT (36001):
Enhanced throttle response and improved fuel efficiency.
Simplified installation compared to complex EFI systems.
Self-tuning capabilities that reduce the need for extensive tuning.
Modern EFI technology available at an affordable price.
Capability to run multiple fuel types.
G-Surge Tank: Internally regulated single-pump design.
Wet Flow Technology: Features swirl-spray annular discharge design for optimal fuel atomization.
Voltage Control: Ensures longevity of the fuel pump.
Classic Aesthetic: Cast aluminum throttle body with a classic gold finish.
Integrated Regulator: Built-in fuel pressure regulator for ease of use.
Idle Air Control: Integrated IAC motor for better idle management.
Comprehensive Sensor Package: Provides accurate readings for optimal performance.

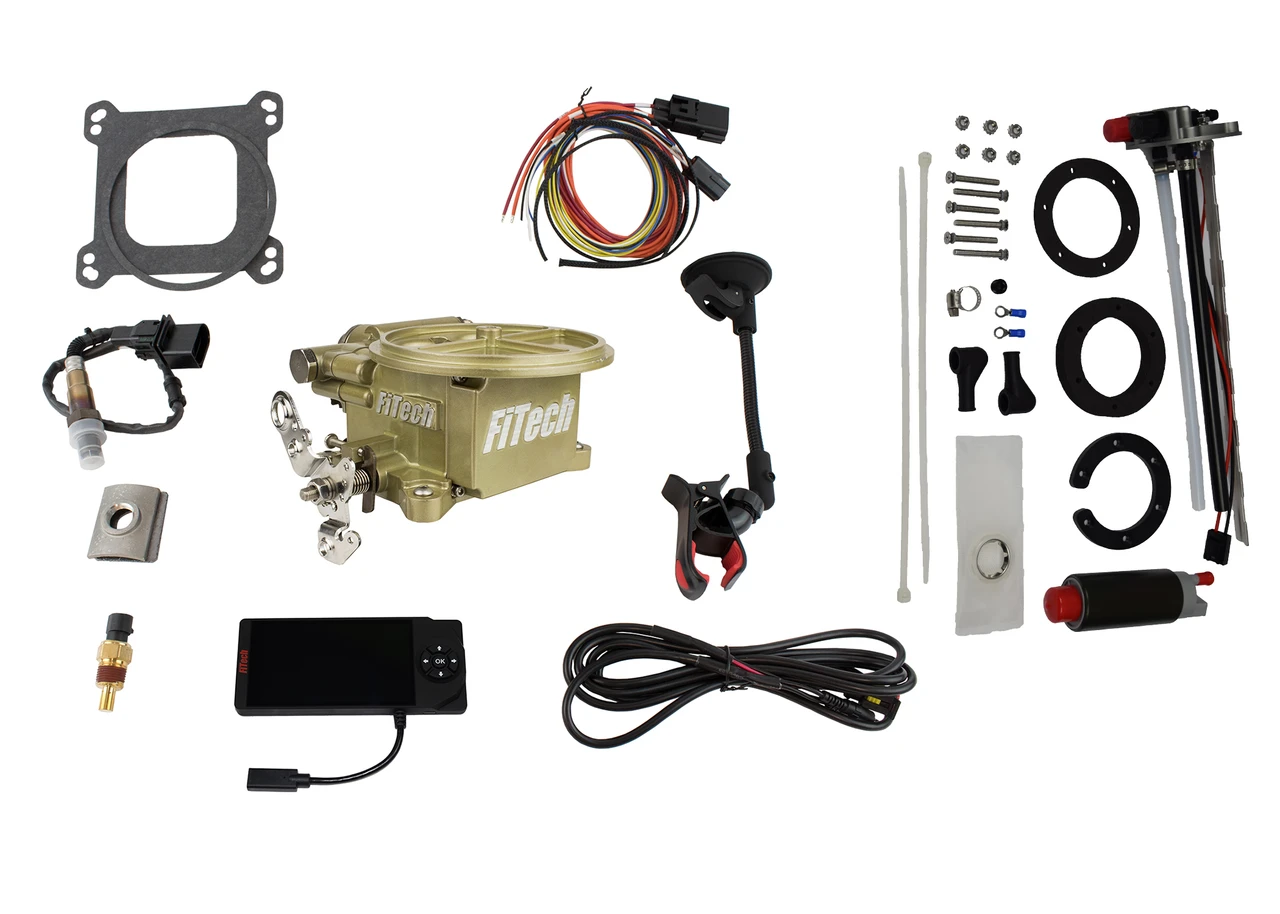

Complete Kit: Includes all necessary wiring and components for installation.
Product identification
- Brand: FiTech
- Model / MPN: 36001
