FiTech 1982-1987 GM Truck 340 LPH EFI Fuel Tank Kit (58015)

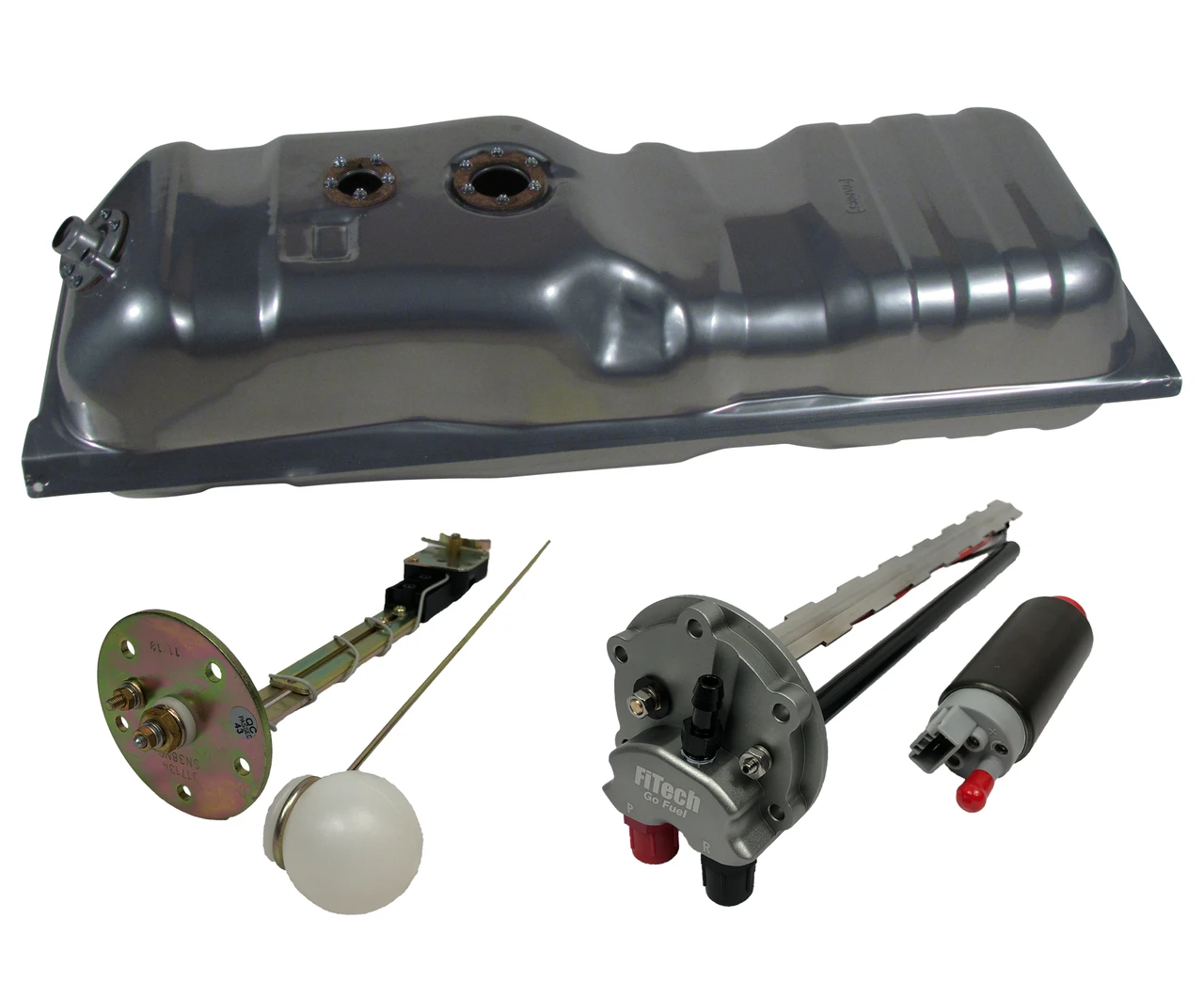

The FiTech 1982-1987 GM Truck 340 LPH EFI Fuel Tank Kit (58015) provides a comprehensive solution for upgrading 1982-1987 GM trucks to electronic fuel injection. This kit, developed in partnership with TANKS Inc., addresses the need for a high-pressure fuel system required by modern EFI setups. Featuring a 16-gallon steel tank, a 340 LPH in-tank fuel pump, and all necessary components, this kit simplifies the EFI conversion process.
KEY FEATURES AND BENEFITS:
High-Performance Fuel Pump: The included 340 LPH in-tank fuel pump supports up to 800 horsepower, suitable for high-performance applications.
Secure Connections: -6 AN inlet and outlet fittings provide secure and leak-free fuel line connections.
Factory Gauge Compatibility: The kit includes a fuel level sending unit compatible with factory gauges, simplifying installation.
Fuel Tank Capacity: 16 gallons
Fuel Pump Flow Rate: 340 LPH (90 GPH)
Horsepower Support: Up to 800 HP
Outlet Fittings: -6 AN male O-ring
Fuel Tank Material: Steel, silver powder-coated
Sending Unit: Included, compatible with factory gauges
Baffled Sump: Yes
Compatibility: 1982-1987 GM Trucks
Dimensions: 28 × 11 × 47 inches
Preparation: Disconnect the vehicle's battery and drain the existing fuel tank.
Removal: Remove the old fuel tank and sending unit from the vehicle.
Installation: Position the FiTech 58015 tank in the vehicle and secure it using the provided mounting straps.
Pump Installation: The 340 LPH pump is pre-installed in the in-tank module. Ensure it is properly seated.
Sending Unit: Connect the included sending unit to the vehicle's wiring harness.
Fuel Lines: Connect the -6 AN fuel lines to the inlet and outlet fittings.
Electrical Connections: Connect the fuel pump's electrical wiring.
Refueling: Refill the tank with fuel.
Testing: Check for leaks and proper fuel pump operation.
Final Checks: Verify fuel gauge operation.
BENEFITS OF USING FiTech 1982-1987 GM TRUCK 340 LPH EFI FUEL TANK KIT (58015):
Simplified EFI Conversion: Provides a complete fuel system solution for an easy upgrade.
In-Tank Fuel Pump: Eliminates the need for external pumps, reducing installation complexity.
High-Performance Support: The kit's high-flow pump makes it ideal for modified vehicles.
Internal Baffles: Designed to maintain consistent fuel supply.
Recessed Mounting: For the pump and sending unit to provide added clearance.
Corrosion Resistant: Steel tank with a protective powder-coated finish.
Included Components: Mounting straps and filler neck included.
Factory Gauge Compatible: Sending unit included for easy integration with factory gauges.
Product identification
- Brand: FiTech
- Model / MPN: 58015
FiTech fuel tank kit: see the listed specifications for this model.
