FiTech efi fuel tank details

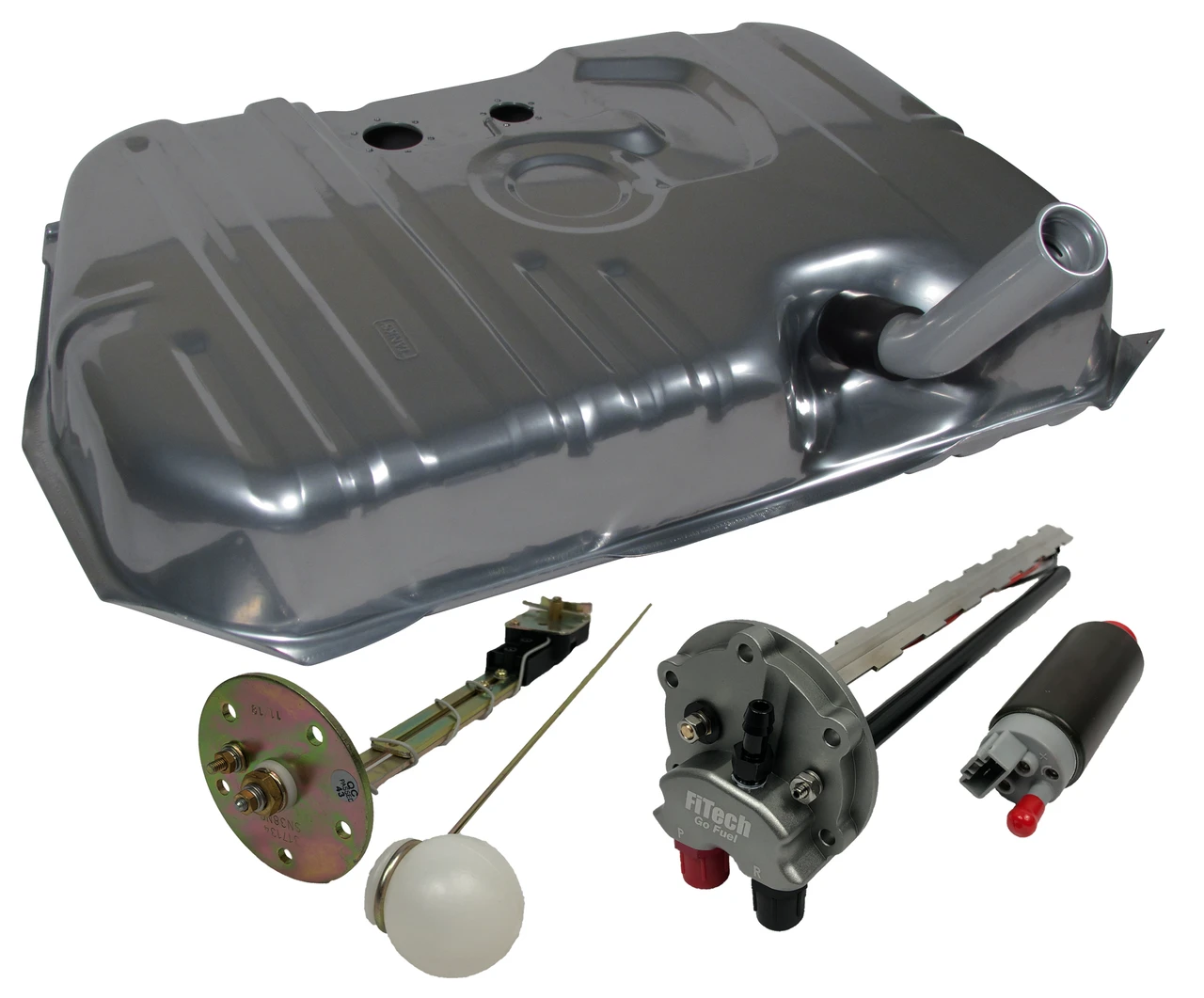

FiTech 1981-87 Cutlass 340 LPH EFI Fuel Tank Kit (58021)
KEY FEATURES AND BENEFITS:
High-Performance Fuel Pump: The included in-tank pump module houses a 340 LPH fuel pump, capable of supporting up to 800 horsepower.
Factory Gauge Compatibility: The kit includes a sending unit that maintains accurate fuel level readings.
Secure Connections: -6 AN inlet and outlet fittings provide secure and leak-free fuel line connections.
Simplified Installation: Mounting straps are provided to ease the installation process.
Vehicle Compatibility: 1981-87 Oldsmobile Cutlass
Tank Capacity: 17 gallons
Fuel Pump Flow Rate: 340 LPH (90 GPH)
Horsepower Support: Up to 800 HP (naturally aspirated)
Fitting Type: -6 AN male O-ring
Tank Material: Coated Steel
Sending Unit: Included
Mounting Straps: Included
Fuel Pump: In-tank 340 LPH
Baffled Sump: Yes
Outlet Quantity: 2
Dimensions: 27 × 13 × 41 in
Remove Existing Fuel Tank: Safely drain and remove the old fuel tank from your vehicle.
Install Sending Unit: Attach the provided sending unit to the new FiTech fuel tank.
Install In-Tank Pump Module: Secure the 340 LPH pump module within the tank's recessed mount.
Mount the Tank: Position the new tank in the vehicle and secure it using the provided mounting straps.
Connect Fuel Lines: Attach the -6 AN fuel lines to the inlet and outlet fittings on the tank.
Connect Sending Unit Wiring: Connect the sending unit wiring to your vehicle's gauge system.
Fill and Test: Fill the tank with fuel and test the fuel system for leaks and proper operation.
BENEFITS OF USING THE FiTech 1981-87 CUTLASS 340 LPH EFI FUEL TANK KIT (58021):
Optimal Performance: Ensures proper fuel pressure and flow for optimal EFI performance.
Accurate Fuel Level Readings: Maintains accurate fuel level readings with the included sending unit.
Reduces Fuel Starvation Risk: Internal baffling ensures consistent fuel supply under various conditions.
Modern Upgrade: Offers a reliable fuel system upgrade for classic vehicles.
Recessed Mount: For the in-tank pump module, providing added clearance.
Corrosion Resistance: Coated steel tank for durability.
Direct Fit: Specifically designed for 1981-87 Oldsmobile Cutlass.
OEM Style Tank: Designed to fit seamlessly with factory components.
Filler Neck: Included when required for refueling.
Product identification
- Brand: FiTech
- Model / MPN: 58021
FiTech fuel tank kit: see the listed specifications for this model.
