FiTech efi fuel tank details

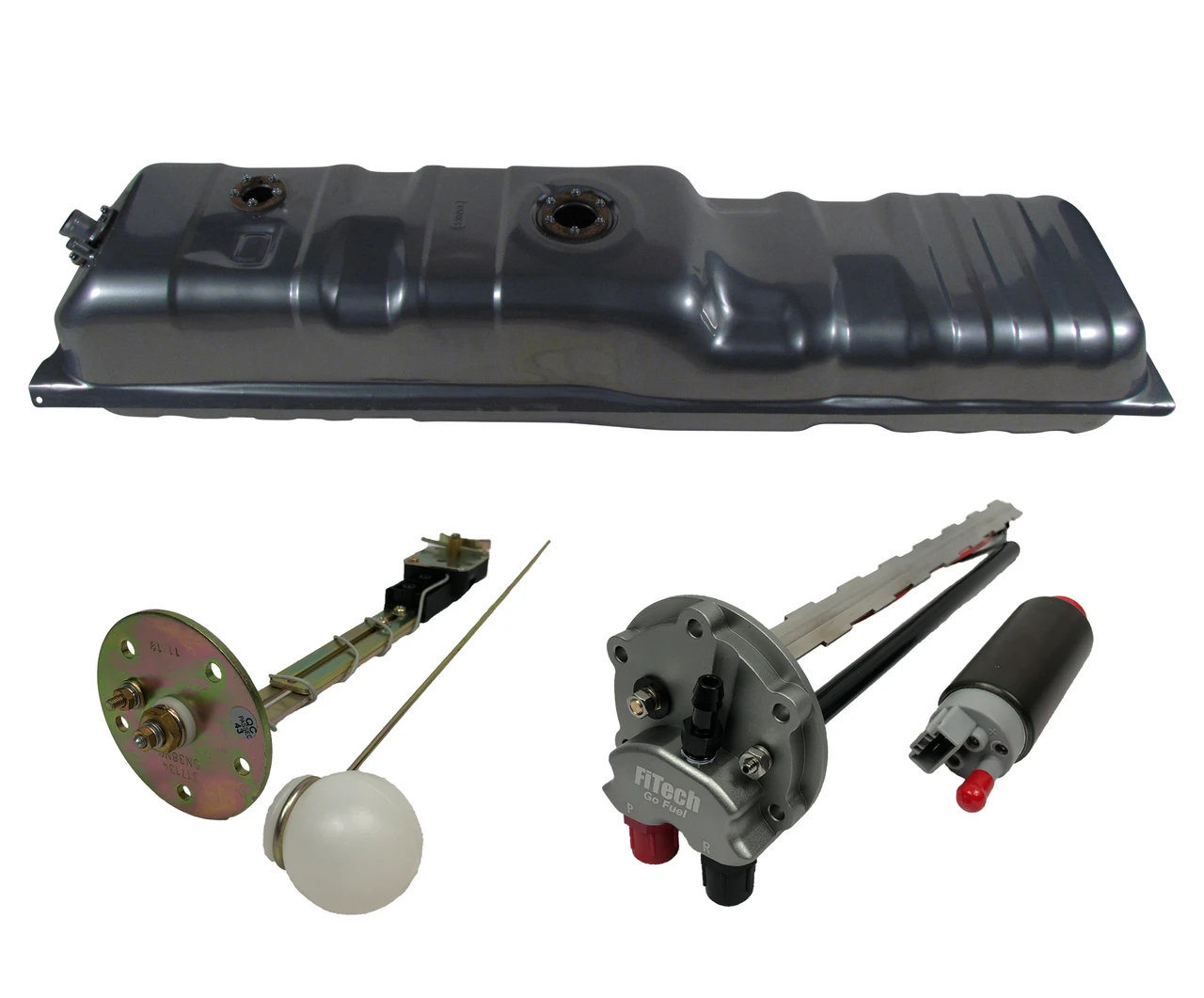

FiTech 1973-1981 GM Truck 340 LPH EFI Fuel Tank Kit (58016)
KEY FEATURES AND BENEFITS:
Complete EFI Solution: This kit includes all essential components for an in-tank fuel pump installation, streamlining the EFI upgrade process.
Direct-Fit Tank: The 20-gallon coated steel tank is designed for a direct fit in 1973-81 GM long wheelbase trucks, simplifying installation.
Factory Gauge Compatibility: The included sending unit is designed to work with your truck's factory gauges.
Reliable Connections: -6 AN inlet and outlet fittings provide leak-free fuel line connections.
Brand: FiTech Fuel Injection
Manufacturer's Part Number: 58016
Part Type: Fuel Tanks
Product Line: FiTech Go EFI Fuel Tank Kits
Fuel Tank Capacity: 20 gallons
Fuel Pump Included: Yes (340 LPH)
Sending Unit Included: Yes
Flow Rate: 90 gph / 340 lph
Baffled Sump: Yes
Outlet Quantity: 2
Fitting Size: -6 AN
Fuel Tank Material: Steel (powdercoated)
Compatibility: 1973-81 GM Long Wheelbase Trucks
Preparation: Disconnect the battery and drain the existing fuel tank. Remove the old fuel tank and sending unit.
Tank Installation: Install the new FiTech 58016 fuel tank using the provided mounting straps. Ensure the tank is securely fastened.
Pump Module Installation: Install the FiTech Go Fuel in-tank module into the tank's recessed mount.
Sending Unit Installation: Install the provided sending unit, connecting it to the factory gauge wiring.
Fuel Line Connections: Connect the fuel lines to the -6 AN inlet and outlet fittings. Ensure all connections are tight and leak-free.
Electrical Connections: Connect the fuel pump wiring to the vehicle's electrical system.
Testing: Refill the tank with fuel and check for leaks. Reconnect the battery and test the fuel pump and gauges.
BENEFITS OF USING THE FiTech 1973-1981 GM TRUCK 340 LPH EFI FUEL TANK KIT (58016):
Simplified EFI Conversion: Provides a complete solution for an easy upgrade.
High-Performance Compatibility: Supports high-horsepower applications.
Maintains Factory Functionality: Compatible with factory gauge functionality.
OEM Style Baffled EFI Tank: Designed to minimize fuel sloshing.
Recessed Mounting: For the sending unit and pump for enhanced clearance.
Included Components: Mounting straps and filler neck provided when needed.
Corrosion Resistance: Silver powdercoated finish for durability.
In-Tank Pump Module: Secures the provided 340 LPH pump.
Designed for FiTech EFI Systems: Optimized for compatibility with FiTech EFI setups.
Product identification
- Brand: FiTech
- Model / MPN: 58016
FiTech fuel tank kit: see the listed specifications for this model.
