FiTech efi fuel tank details

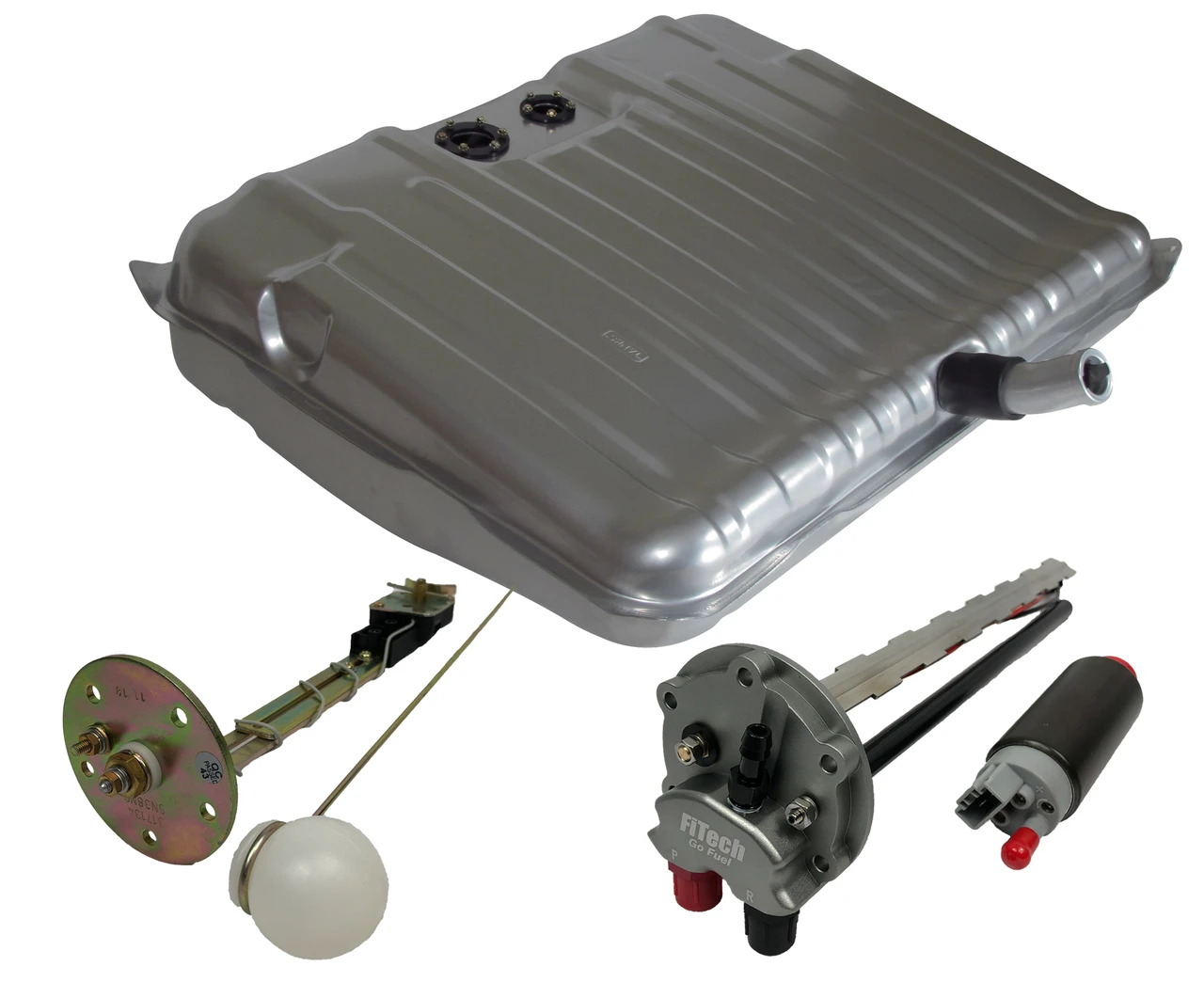

FiTech 1966-1967 Cutlass 340 LPH EFI Fuel Tank Kit (58037)
KEY FEATURES AND BENEFITS:
Direct-Fit Solution: Eliminates the need for extensive modifications during installation.
Internal Baffles: Prevent fuel starvation during aggressive driving, maintaining consistent fuel flow.
Improved Clearance: Recessed sending unit and pump mount offer additional installation space.
Complete Kit: Supplied with all required straps and filler neck for a hassle-free installation.
Compatibility: 1966-1967 Oldsmobile Cutlass, 1966-1967 Oldsmobile 442
Tank Capacity: 24 gallons
Fuel Pump Flow Rate: 340 LPH (90 GPH)
Fuel Pump Support: Up to 800 HP
Fitting Size: -6 AN
Fuel Tank Material: Silver powder-coated steel
Sending Unit: Included
Mounting Straps: Included
Drain the existing fuel tank and disconnect all fuel lines and electrical connections.
Remove the old fuel tank and sending unit from the vehicle.
Install the new FiTech 58037 fuel tank using the provided mounting straps.
Insert the FiTech Go Fuel 340 LPH Pump Module into the tank's recessed mount.
Connect the -6 AN fuel lines to the inlet/outlet fittings on the tank.
Install the included sending unit and connect the electrical wires.
Connect the filler neck as needed.
Refill the tank with fuel and check for any leaks.
Test the fuel system to ensure proper operation.
BENEFITS OF USING THE FiTech 1966-1967 CUTLASS 340 LPH EFI FUEL TANK KIT (58037):
Reduced Noise: In-tank pump design minimizes operating noise while improving cooling.
Simplified Installation: Direct-fit design makes the upgrade process straightforward.
Enhanced Performance: High-flow pump supports high-performance engines for improved power output.
Recessed Pump Mount: Increases clearance and accessibility during installation.
Leak Prevention: -6 AN fittings designed for secure connections.
Easy Install: Direct fit tank ensures a hassle-free upgrade.
Mounting Hardware: All necessary components included for installation.
Factory Gauge Compatibility: Sending unit included for use with factory gauges.
Product identification
- Brand: FiTech
- Model / MPN: 58037
FiTech fuel tank kit: see the listed specifications for this model.
