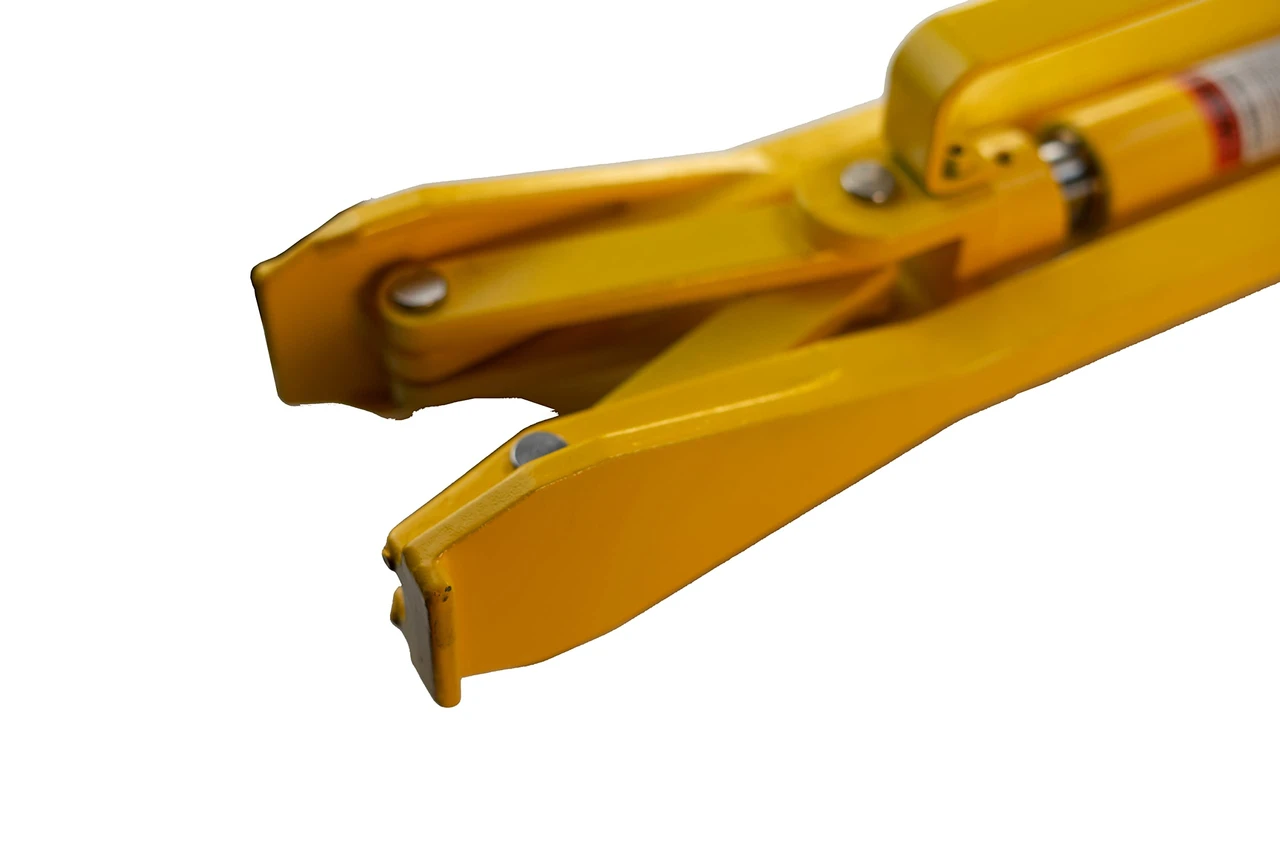

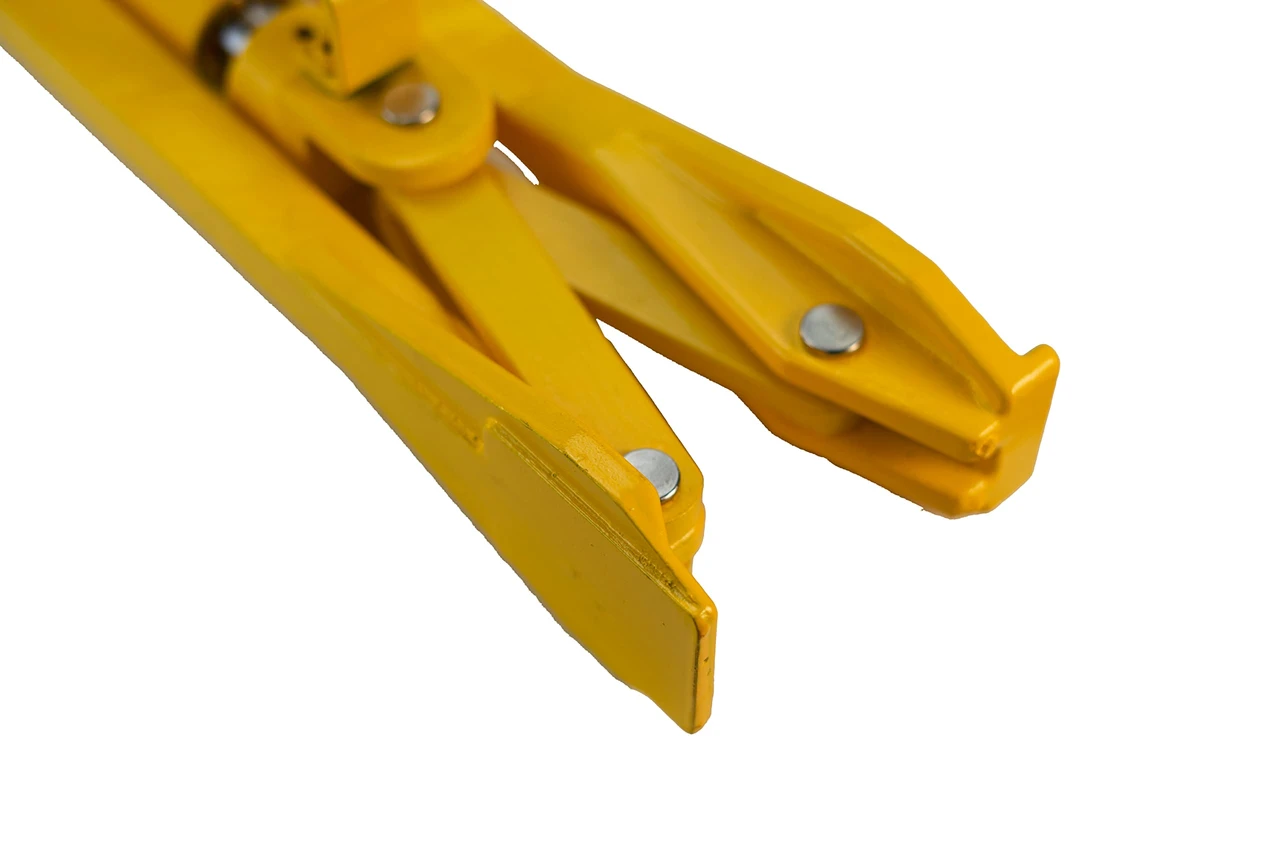

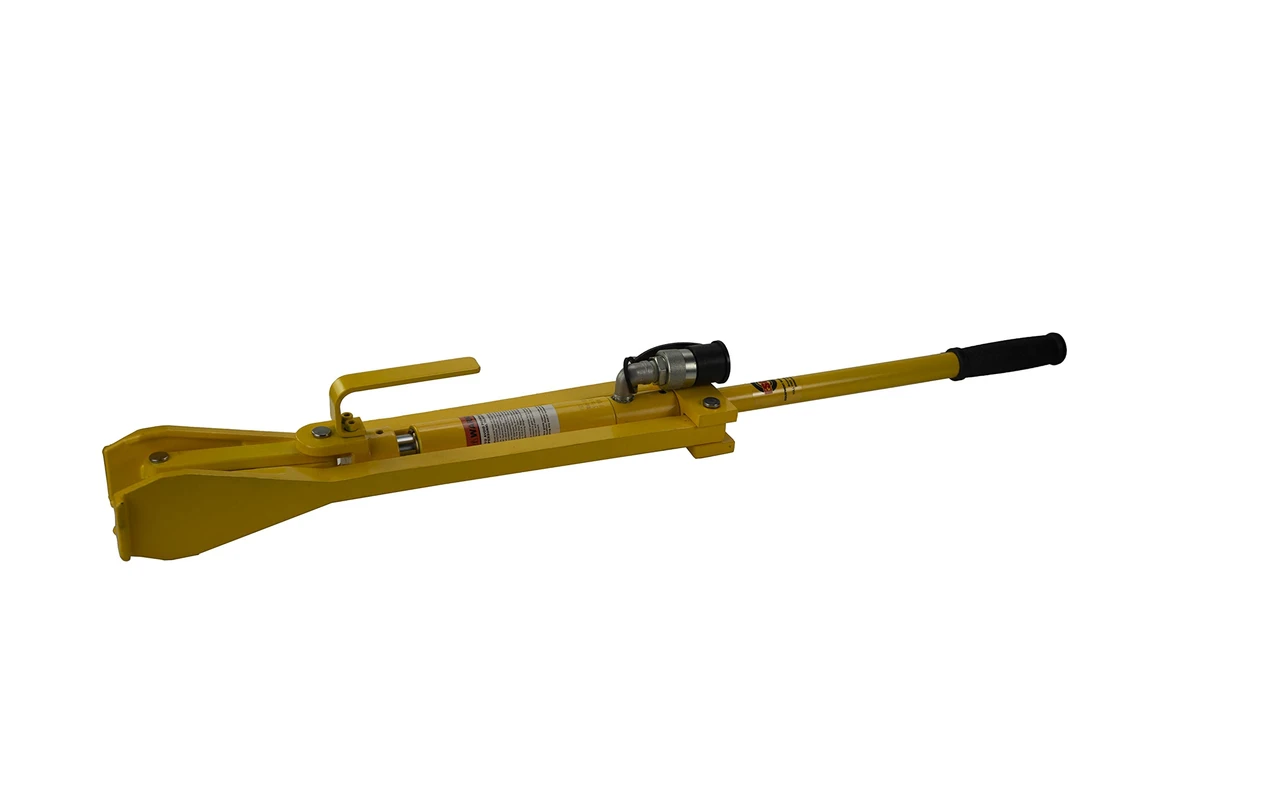

ESCO10165 Dual-Wheel Tractor Hydraulic Bead Breaker
ESCO10165 is a hydraulic bead breaker for accessing the inside bead of an outside tire on a dual-wheel farm tractor. Opening clearance and arm placement are central checks when assessing whether it suits the installed wheel arrangement.
Specifications and included details
- Dual-wheel farm-tractor bead-breaking application.
- Minimum spreader opening 4.5 inches; maximum12 inches.
- 3.5-inch stroke and 10, 000lb hydraulic force described.

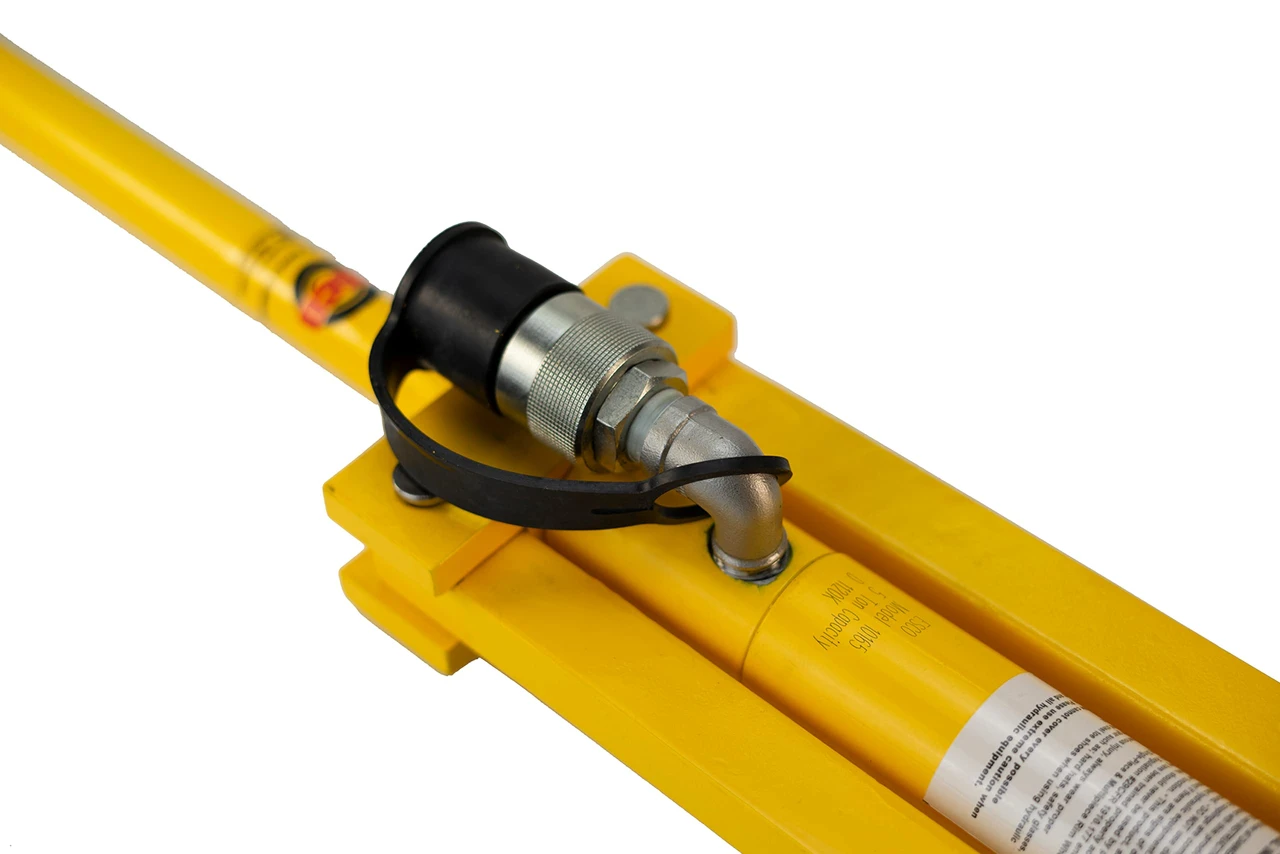

- Positioning handle and 90-degree hydraulic coupler included.
- Listed weight25lb.
Before ordering
Verify wheel spacing and bead/rim configuration and confirm the hydraulic supply requirements under the manufacturer's instructions. Force in pounds is not hydraulic pressure in PSI. A pump and hose are not established as included, and required inlet pressure is not specified here.
Product questions and answers
Does10, 000lb mean the hydraulic inlet is 10, 000PSI?
No. Force and pressure are different quantities. Verify the permitted supply pressure separately.
Is a hydraulic pump included?
Only the tool and listed coupler are established here; no pump or supply hose is confirmed.
What clearance range is listed?
The stated spreader opening is 4.5–12 inches. Check actual dual-wheel spacing and tool placement.
