ESCO 90200 Two-Way Pushing Bar for 5-Piece Rims

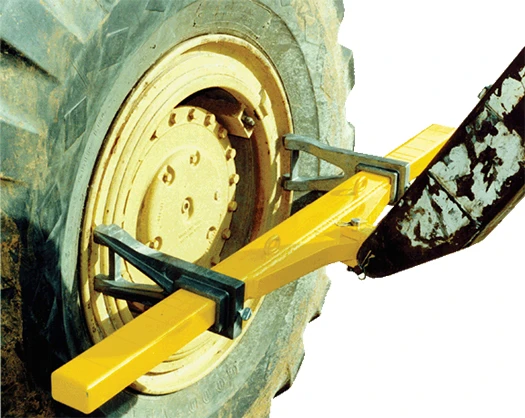

ESCO 90200 is a two-way pushing bar used with a truck boom for work on OTR and earthmover five-piece rims. It is described for depressing the bead seat band and flange ring during locking-ring service. The listed rim range is 25–51 inches; that range is separate from the bar's 56-inch overall length.
Specifications and included details
- Described for OTR/earthmover five-piece rims, 25–51 inches.
- Listed tool length 56 inches.
- Includes two lever-bar inserts and two 12.5-inch steel push teeth.
Before ordering
Confirm the approved boom mounting, wheel application and operating procedure with ESCO. No attachment load rating or universal crane compatibility is established here. Verify any restraint or inflation use with the manufacturer; a generic cage-equivalence statement is not sufficient operating guidance.
Product questions and answers
Is 51 inches the tool length?
No. It is the upper listed rim size. The technical tool length is 56 inches.
Does it mount to every boom truck without modification?
No universal mounting arrangement is established. Verify the exact boom and approved attachment before use.
Which push components are included?
The itemized contents identify two inserts for the lever bar and two 12.5-inch steel push teeth.
