Esco Equipment 10203 Dual Agricultural Bead Breaker Kit 3.5 Quart Hydraulic Pump
ESCO 10203 Dual Agricultural Bead Breaker Kit – 3.5 Quart Hydraulic Pump
The Dual Agricultural Bead Breaker Kit includes the following items:
10106 | Dual Agricultural Bead Breaker
10500 | 3.5 Quart Hydraulic Air Pump
10604 | 8' Hose assembly with Hose Coupler
10601K | 6″ Whip-Hose, Air Reducer
Rim Applications:

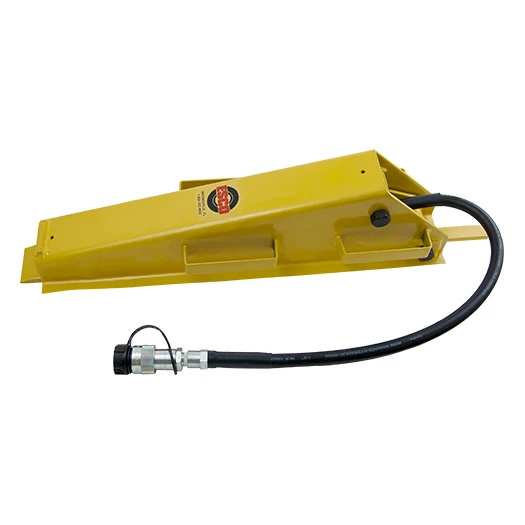

ESCO 10106 Dual Agricultural Bead Breaker
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
10 Tons of Bead Breaking force that breaks the inner bead on dual farm tractor tires
Requires just 3” of operating space between the dual tractor tires
No need to remove the outside wheel to change the tire on the outside dual
Use with a 10,000 psi air/hydraulic pump
Break inner bead on dual farm tractor tires with force
Wedge to properly insert tool between the inside duals of farm tractors
Bead breaking foot
10 tons of bead breaking force
Weight | 54 lbs. (25kg)

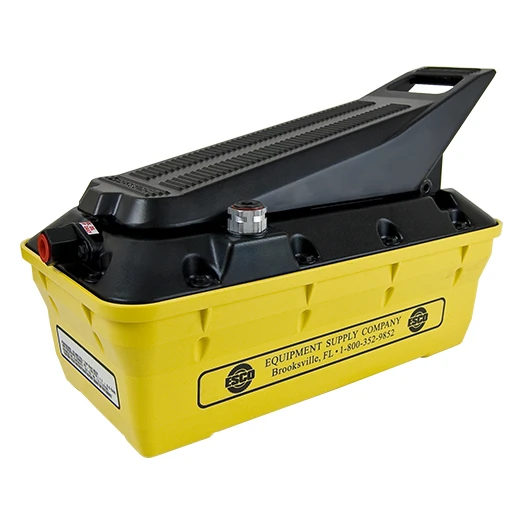

ESCO 10500 3.5 Quart Turbo II Air Hydraulic Pump
Rugged, light-weight plastic reservoir with polyglass sight gauge
10,000 psi hydraulic pressure
Compact design easily fits storage bins
Fastest Pump Available
Weight | 18 lbs. (8 kg)

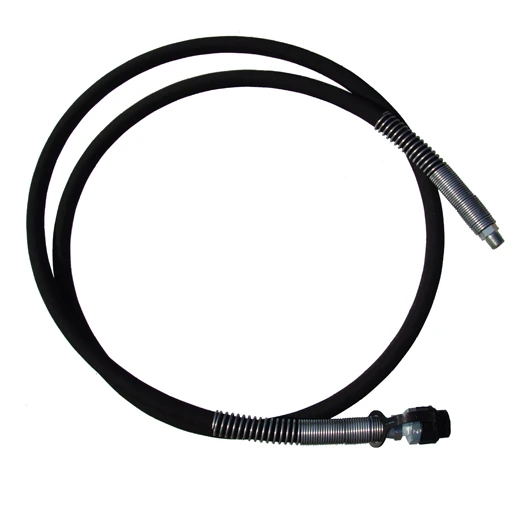

ESCO 10604 Hydraulic Hose Kit
Hydraulic hose with swivel fitting, hose won’t kink. Reinforced with 2 layers of braided steel. Use with any 10,000 psi. pump, ram, or bead breaker.
Length | 8' (8' Hose with 3/8″ 18 Male Ends)
Weight | 5 lbs. (2.2 kg)
Attachments Include:
10605 | Half Coupler

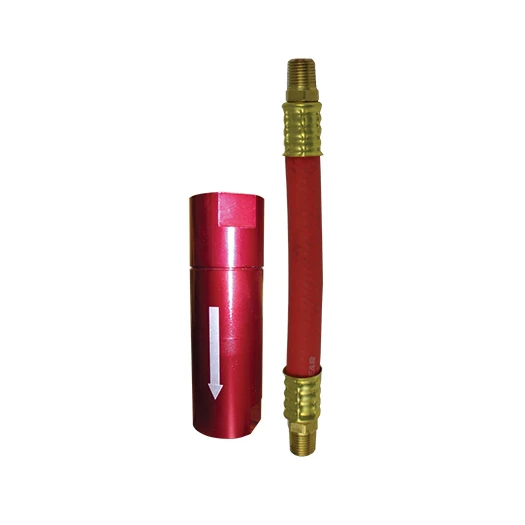

ESCO 10601K Air Reducer with 6" Whip-Hose
The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.
Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, & Keep ESCO Hydraulic Products in their PRIME.
Maintain recommended working air pressure
Easy installation & usage
Model #10601K comes with Air Reducer & 6″ Whip-Hose (Model #10601H)
Can be used in conjunction with multiple ESCO products
Product identification
- Brand: Esco Equipment
- Model / MPN: 10203
