Esco Equipment 10201 Combi Bead Breaker Kit 2.5 Quart Hydraulic Air Pump
Esco 10201 "Combi" Bead Breaker Kit – 2.5 Quart Hydraulic Air Pump
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
10101 | “Combi” Bead Breaker Tool
10590 | 2.5 Quart Hydraulic Air Pump
10604 | 8′ Hose Assembly with Hose Coupler
10601K | 6″ Whip-Hose, Air Reducer
Esco 10101 Combi Bead Breaker
Works on single, two and three piece truck tires/rims, including some new style wheels
Breaks beads in seconds using 13.8 tons of force
Redesigned Replaceable Pushing Foot
Replaceable Teeth
13.8 Tons of Bead Breaking Force – 3.75" Stroke (95mm)
Weight | 36 lbs. (16 kg)
PLEASE NOTE, IMPORTANT INFORMATION:
The "Combi" Bead Breaker will NOT work on five piece Earthmover giant wheel/rim. #10100 or the #10105 is required.

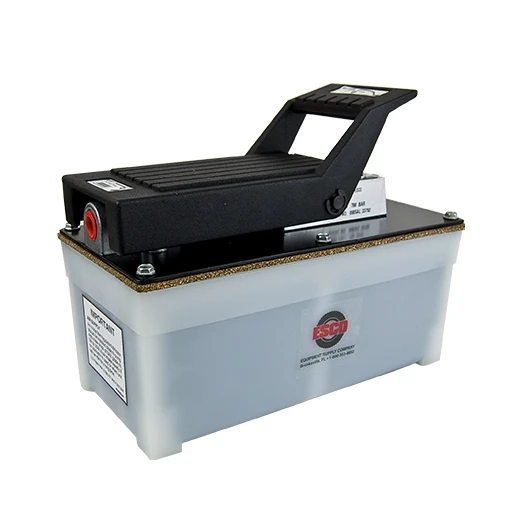

Esco 10590 2.5 Quart Air Hydraulic Pump
High density 2.5 quart polyethylene reservoir
Air inlet filter keeps air clean
10,000 psi hydraulic pressure
All metal air motor

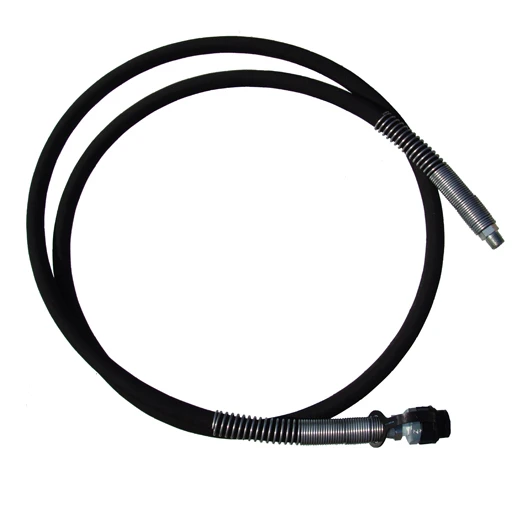

Esco 10604 Hydraulic Hose Kit
Hydraulic hose with swivel fitting, hose won’t kink. Reinforced with 2 layers of braided steel. Use with any 10,000 psi. pump, ram, or bead breaker.
Length | 8' (8' Hose with 3/8″ 18 Male Ends)
Weight | 5 lbs. (2.2 kg)
Attachments Included:
10605 | Half Coupler
Esco 10601K Air Reducer with 6" Whip-Hose
The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.
Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, & Keep ESCO Hydraulic Products in their PRIME.
Maintain recommended working air pressure
Easy installation & usage
Model #10601K comes with Air Reducer & 6″ Whip-Hose (Model #10601H)
Can be used in conjunction with multiple ESCO products
10601K Specifications:
Diameter | 15/16″ (24mm)
Working Air Pressure | 110 PSI
Air Inlet Size | 1/4″ NPT
Weight | 1 lb. (0.5kg)
10601H Specifications:
Length | 6″ (152.4mm)
Product identification
- Brand: Esco Equipment
- Model / MPN: 10201
