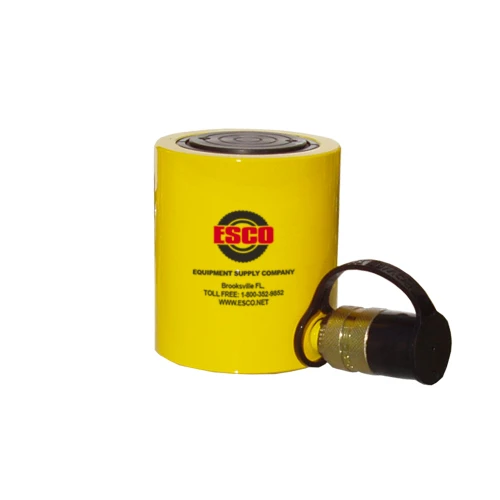

ESCO 30-Ton Hydraulic Cylinder 2.44" Stroke (10306)
The ESCO 30-Ton Hydraulic Cylinder 2.44″ Stroke (10306) is an essential tool for tire dealers and technicians servicing earthmover tires. This hydraulic ram is designed to break beads on the backside of tires, especially when clearance restrictions prevent the use of traditional bead breakers. With its force and stroke, it ensures efficient performance even in confined spaces. It operates at a maximum pressure making it ideal for tough applications.
30-ton ram capacity for heavy-duty applications
2.44″ stroke for effective bead breaking
Maximum pressure of 10,000 PSI for high-efficiency performance
Compact design with a retracted height of 4.63″
Ideal for use in space-restricted areas
Reliable for breaking beads on earthmover tires
Durable and built for high-pressure tasks
Lightweight at 15 lbs (7 kg) for ease of handling
Technical Specifications:
Stroke: 2.44″ (62mm)
Max Pressure: 10,000 PSI

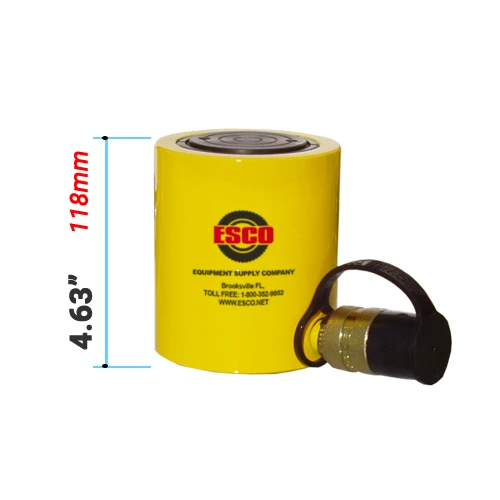

Retracted Height: 4.63″ (118mm)
Weight: 15 lbs (7 kg)
Product identification
- Brand: Esco Equipment
- Model / MPN: 10306
