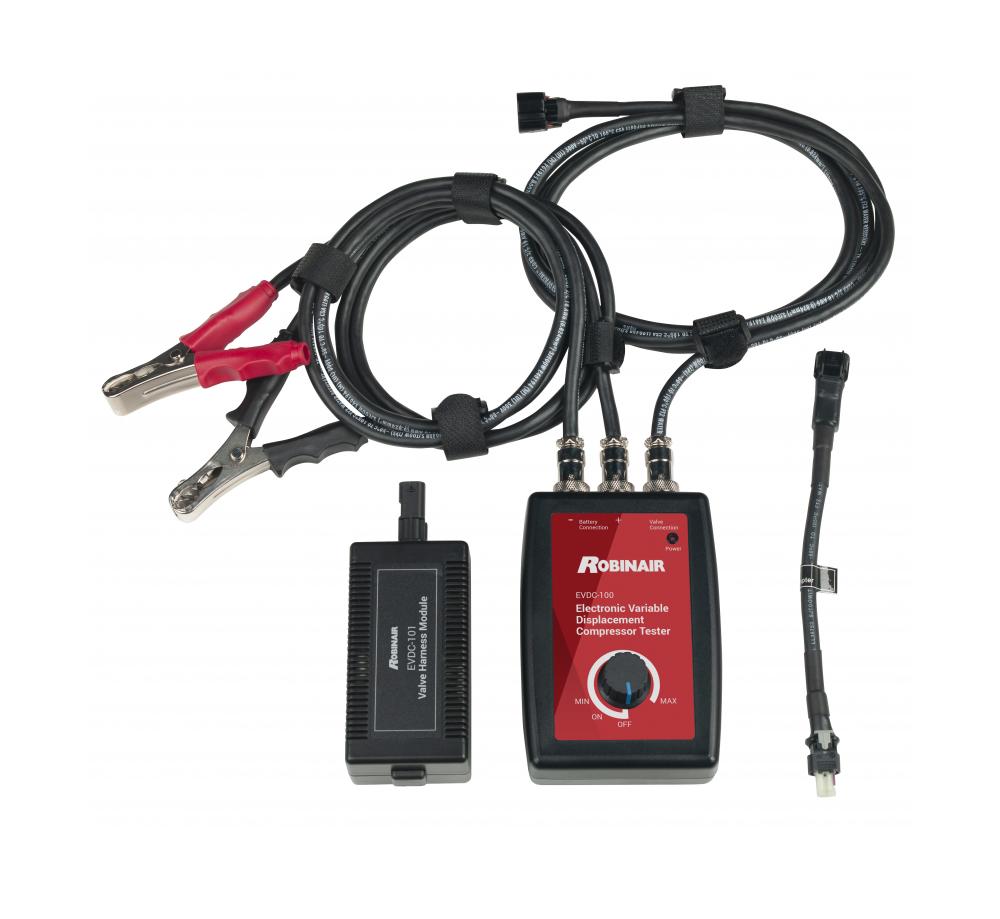

Electronic Variable Compressor Tester
The Robinair EVDC100 enables technicians to quickly test electronic control valves in variable displacement compressors to determine if functioning correctly and eliminating compressor misdiagnosis.
The included Electronic Variable Compressor test module varies voltage supplied to the refrigerant control valve on the compressor to verify valve function, helping lower repair time and costs. Wiring harnesses connect to multiple variable compressors from Denso, Valeo and Hanon used in many Ford, GM, Chrysler and Toyota vehicles. Alligator clips clamp to vehicle battery to supply 12V power to the test module and compressor. A compressor valve module mimics a properly functioning compressor valve, allowing comparison and quick diagnosis.
Wiring harnesses to connect to compressors (6' length) and 12V battery for power (4' length)
Electronic Variable Compressor test module
Compressor valve module
Features
- Eliminates misdiagnosing electronic variable displacement A/C compressors
- Quickly diagnose and verify valve function, lowering total repair time and costs
- Adjustable tester output
- Includes connect adapters for both old and newer style compressors
- Heavy duty battery clips and cable provides power from vehicle battery, eliminating the need for batteries
- Reverse battery connection protection
- Long cable lengths for easier access to valve and battery
- Removable cable assemblies for easy replacement

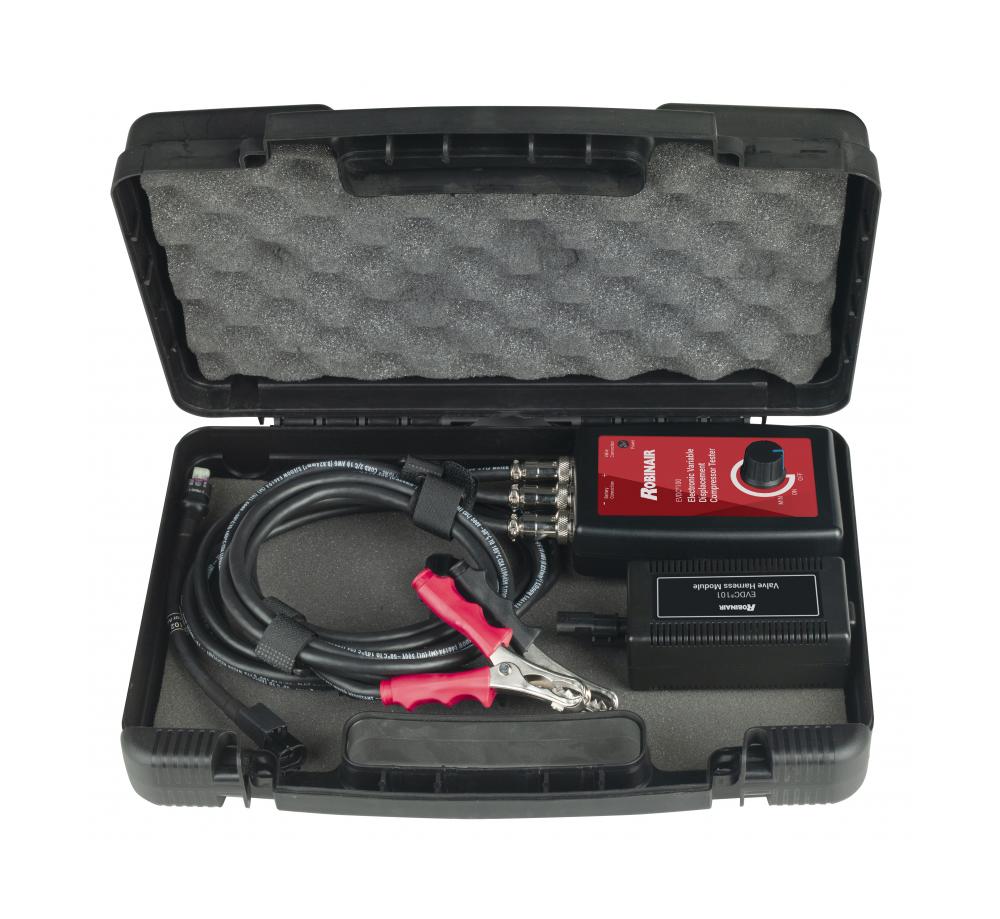

Included components
- Battery cable harness
- A/C compressor valve connection harness
- Valve harness module
- Valve connector adapter
Product identification
- Brand: OTC
