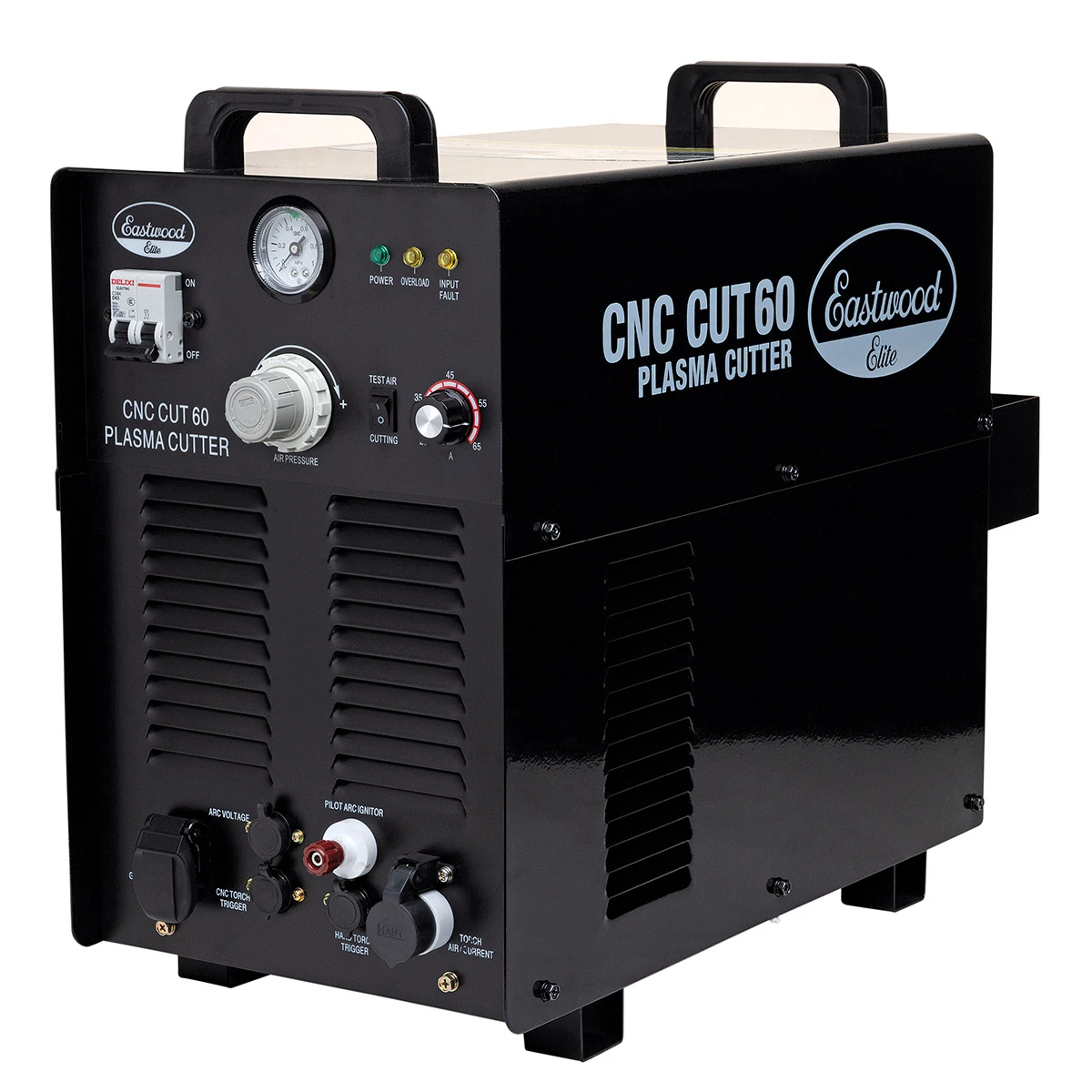

Eastwood Elite CNC Cut 60 Plasma Cutter for 4×4 CNC Plasma Table (55132) (55133)
Eastwood Elite CNC Cut 60 Plasma Cutter for 4×4 CNC Plasma Table (55133) is a high-performance plasma cutting solution designed for precision metalwork. Built with the power to cut through 3/8" steel plates effortlessly, this 60 Amp plasma cutter is the ideal match for your 4×4 CNC plasma table. Its inverter technology ensures clean cuts with excellent accuracy.
It operates on a 240V AC input and features a high-frequency arc ignition system, allowing you to start your cuts with precision. Its 60% duty cycle at 63 amps provides uninterrupted performance, and with a 100% duty cycle at 49 amps, it is built for demanding, high-output tasks.
Specifications and Dimensions
Power Input: 240V, 50/60 Hz
Air Input: ¼” NPT Female Thread
Output Current Adjustment: 10-63 Amps
Duty Cycle: 60% @ 63 Amps; 100% @ 49 Amps
Plasma Torch and Hose Length: 12.3 ft
Ground Cable Length: 9 ft
Weight: 54.5 lbs
Dimensions: 10.83” x 22.44” x 18.70”
Key Features and Benefits
60 Amp plasma cutter designed for 4×4 CNC plasma tables
Clean cuts through 3/8" steel plates with precision
High-frequency arc ignition for accurate cutting
Operates on 240V AC input for reliable power
60% duty cycle at 63 amps, 100% at 49 amps for continuous operation
Product identification
- Brand: Eastwood Elite
- Model / MPN: 55133
