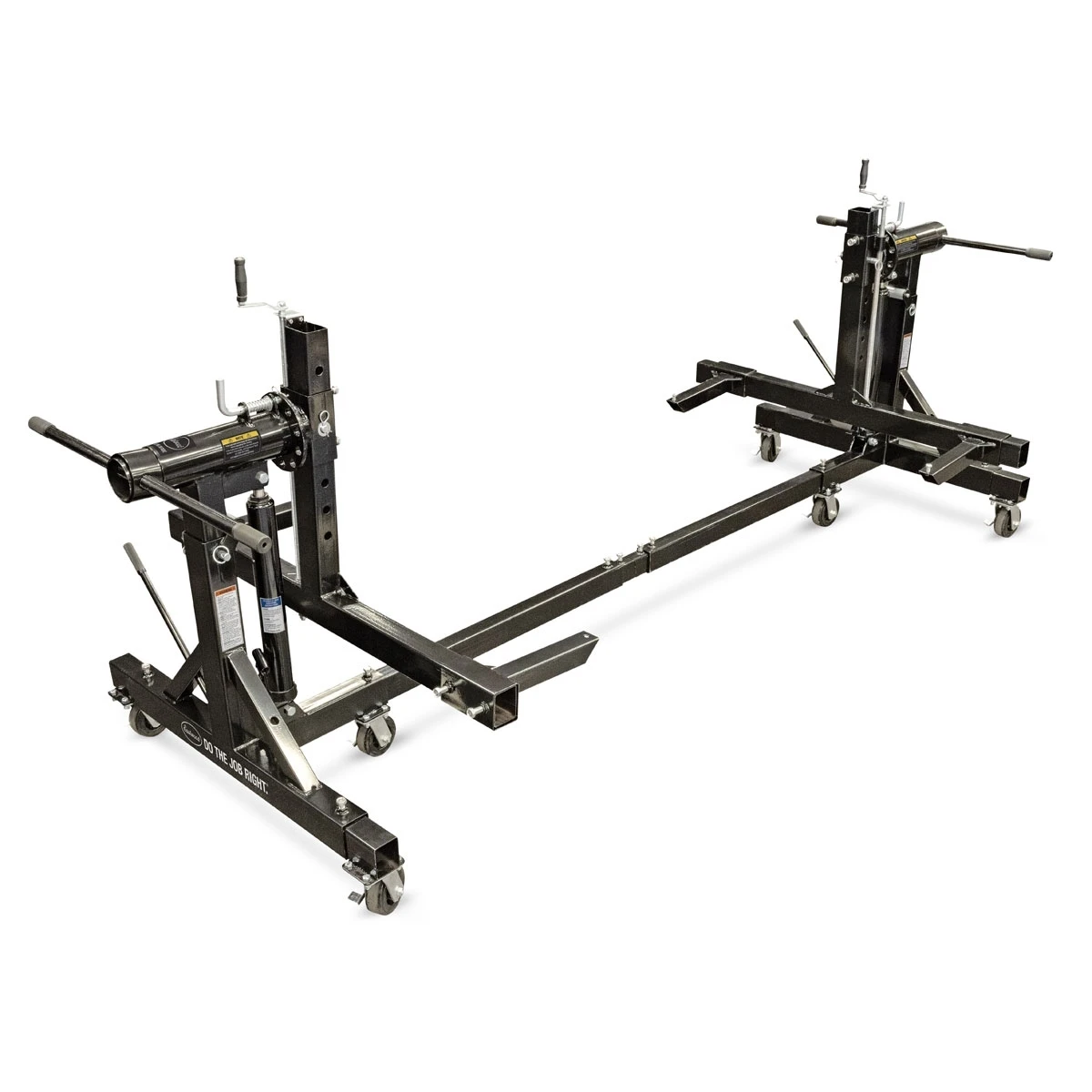

Eastwood 3000lb Capacity Car Rotisserie (32194)
Eastwood 3000lb Capacity Car Rotisserie (32194) is the ideal tool for achieving professional-quality results on your car restoration projects. Designed to support up to 3000 pounds, this heavy-duty rotisserie allows you to access every part of your vehicle with ease.
With a generous 18-foot maximum span, it accommodates large vehicle components, while the adjustable mounting bar heights allow for customized setups. This tool provides the durability and precision needed for efficient off-frame restorations, helping you complete projects faster and more effectively.

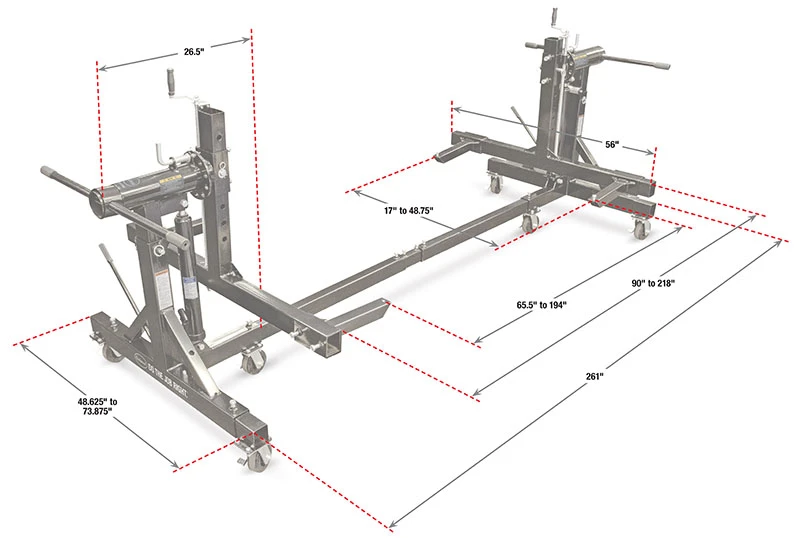

Specifications and Dimensions
Maximum Weight Capacity: 3000lb (1360kg)
Max Weight Capacity per End: 1500lbs (680kg)
Maximum Extended Capacity: 18' (5.5m) Face to Face of "Tee" Beams
Overall Spindle Height (Center Line of Vehicle): 5' (1.5m)
Maximum Extended Length: 22' (6.7m)
Maximum Extended Width: 70" (1.78m)
Minimum Mounting Bar Height: 13.4" (340mm)
Maximum Mounting Bar Height: 49" (1260mm)
Pin Diameter (T-Beam and Spindle Assembly): 0.78" (20mm)
Material: Q235 Carbon Steel
Key Features and Benefits
Supports up to 3000 pounds for large vehicle components
Adjustable height and balance for custom setups
Heavy-gauge steel frame ensures durability and stability
18-foot span accommodates wide vehicles and parts
Six swivel and locking casters for easy maneuverability
Product identification
- Brand: Eastwood
- Model / MPN: 32194
