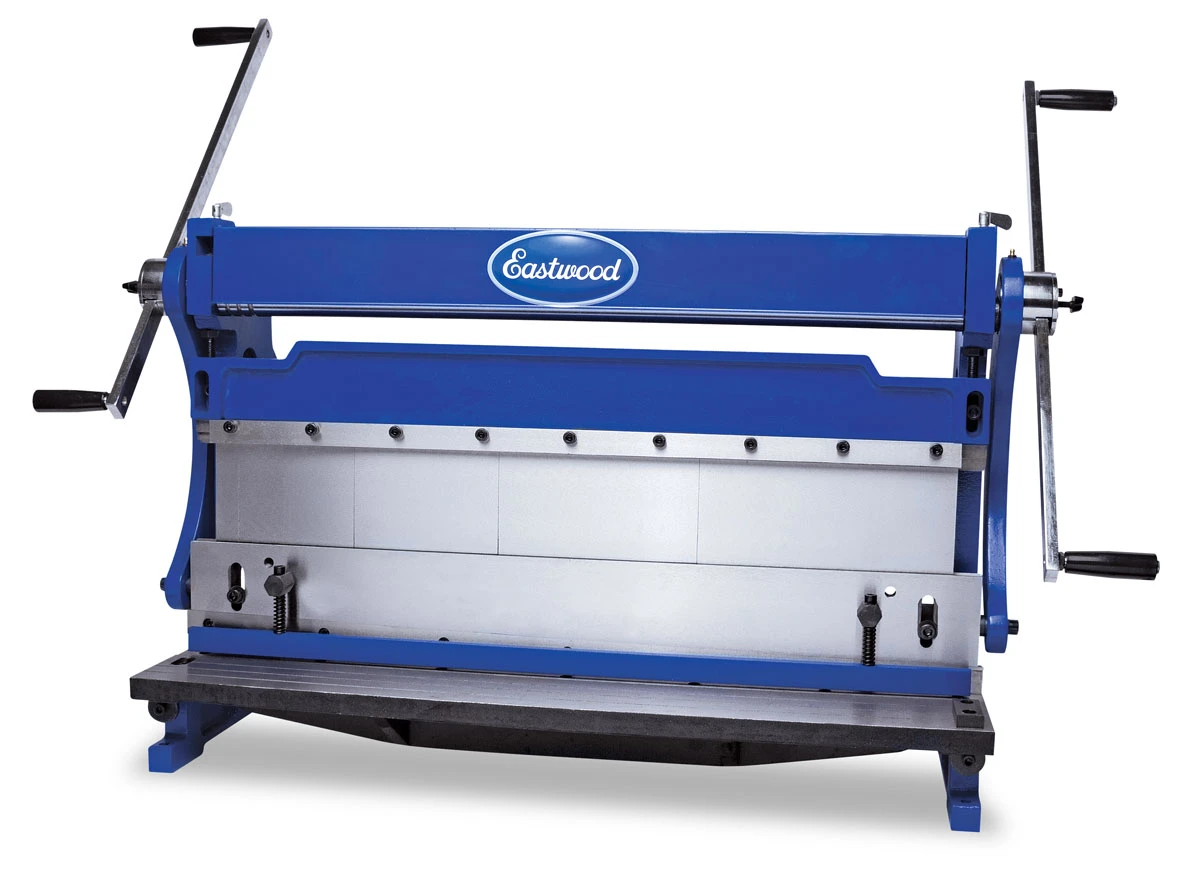

Eastwood 30 Inch 3 in 1 Sheet Metal Shear Brake and Slip Roll Machine (21304)
Eastwood 30 Inch 3 in 1 Shear Brake and Slip Roll (21304) combines three essential metalworking tools into one compact unit. It allows you to bend, roll, and shear sheet metal up to 30 inches wide, making it perfect for automotive, restoration, and fabrication tasks.
Adjustable stops ensure repeatable operations, while the spring-loaded hold-down enables single-handed use. Its sturdy cast iron construction and user-friendly design make it ideal for both professionals and DIY enthusiasts looking to streamline their sheet metal work.
Specifications and Dimensions
Material Length: 30 Inches
Roller Diameter: 1.5 Inches
Maximum Material Thickness (Steel): 20 Gauge
Maximum Material Thickness (Stainless): 24 Gauge
Maximum Material Thickness (Aluminum): 18 Gauge
Finger Lengths: 1", 2", 3", 6", 8", and 10"
Wire Forming Sizes: 1/8", 5/32", and 3/16"
Deepest Box Depth: 2.5 Inches
Smallest Cylinder Diameter: 1.5 Inches
Weight: 316 lbs.
Construction: Cast Iron
Overall Dimensions: 39" x 15.5" x 23" Tall
Mounting Hole Dimensions: 31-1/8" x 13.5"
Key Features and Benefits
Combines shear, brake, and slip roll functions in one compact unit
Handles a variety of metals, including steel, stainless steel, and aluminum

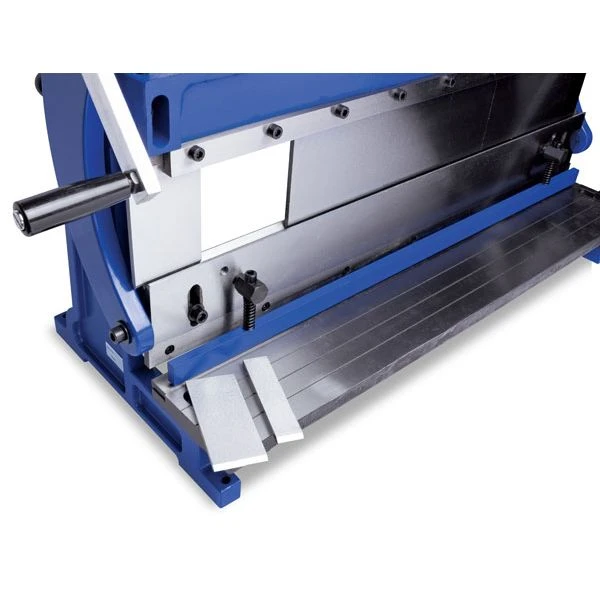

Six removable fingers for creating boxes, pans, and complex shapes
Spring-loaded hold-down for convenient single-handed operation
Product identification
- Brand: Eastwood
- Model / MPN: 21304
