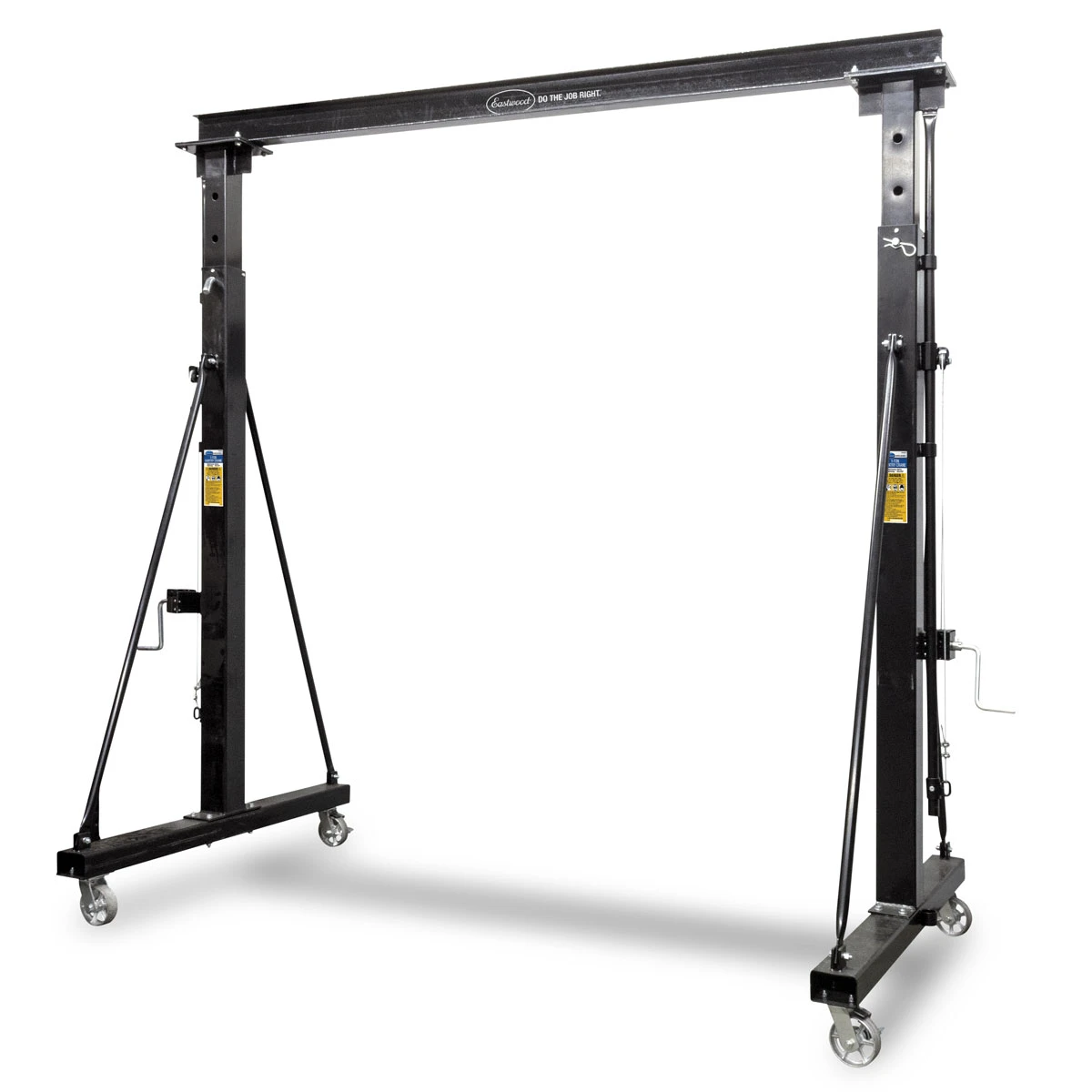

Eastwood 1 Ton Capacity Gantry Crane (31657)
Eastwood 1 Ton Capacity Gantry Crane (31657) is designed to safely and efficiently lift heavy components like engines and car bodies. Built with an all-steel frame and 5-inch swivel casters, it offers exceptional durability and mobility, making it easy to move and store between projects.

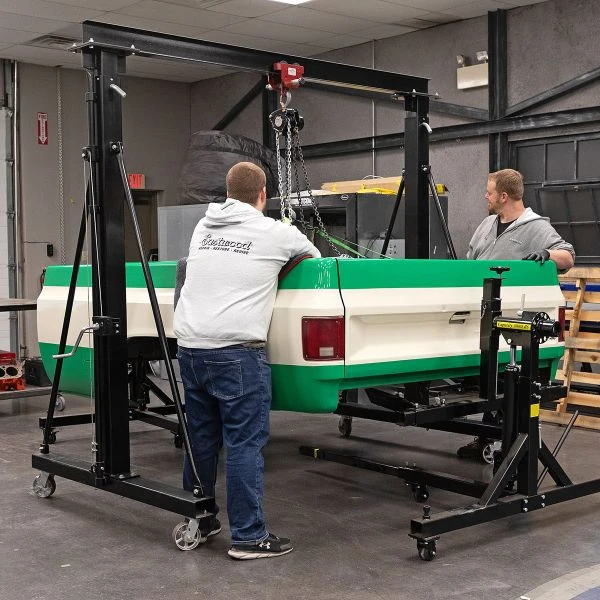

This gantry crane spans a generous 93 inches and features a maximum vertical clearance of 142.5 inches, ensuring it can handle large-scale projects. With locking swivel casters and easy-to-adjust height controls, this crane is both sturdy and flexible, perfect for lifting bodies off the chassis or mounting vehicles on rotisseries.
Specifications and Dimensions
Max Weight Capacity: 2000 lbs (908 kg)
Overall Height: 99" (2.5m) – 147.5" (3.75m)
Width: 128" (3.25m)
Clearance Between Posts: 93.69" (2.36m)
"I"-Beam Dimensions: 3" W x 5" H (76.2 x 127 mm)
Assembled Weight: 550 lbs (250 kg)
Key Features and Benefits
Heavy-duty steel structure for strength and durability

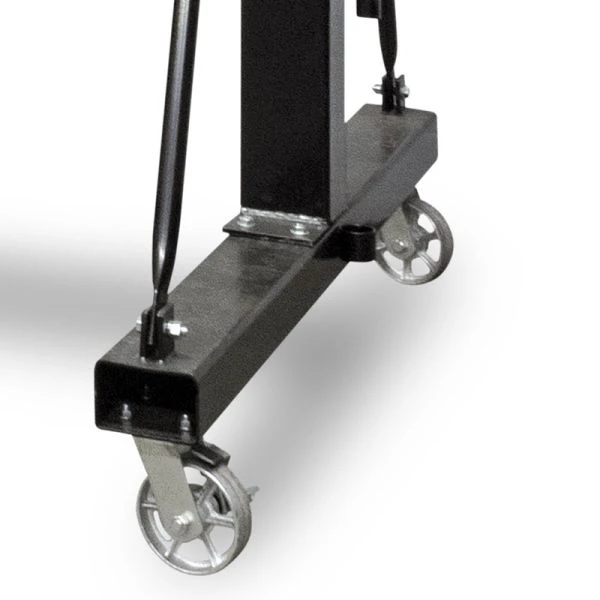

5" swivel casters for easy movement
2000 lb capacity for large lifting jobs

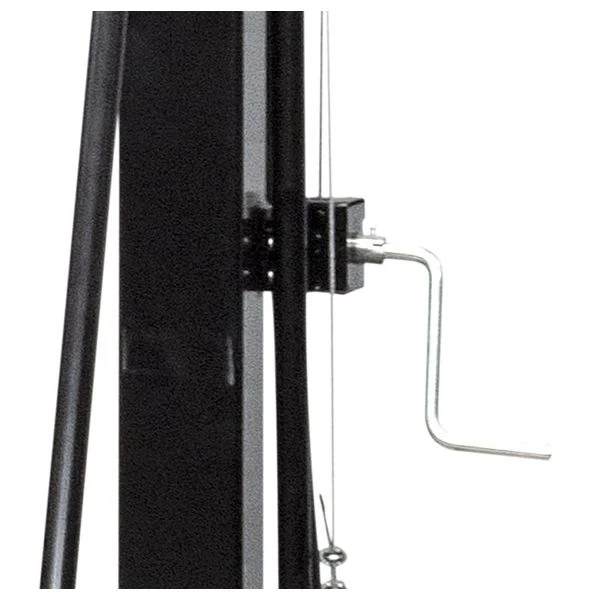

Adjustable height for versatility in different projects
Portable design for easy storage
(2) Post Assemblies
(2) Base Assemblies
(2) Swivel Casters
(2) Locking Swivel Casters
(4) Support Braces
(2) Pin Retaining Clips
Product identification
- Brand: Eastwood
- Model / MPN: 31657
