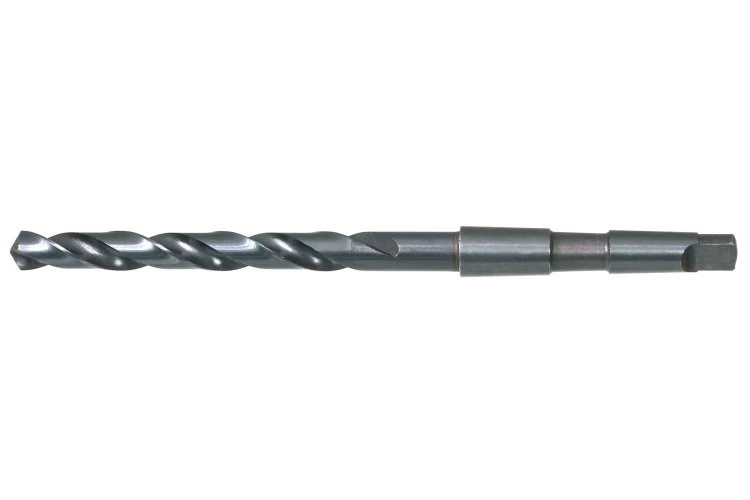

Drillco 1-21/64" Taper Shank Drill #5 M.T. (1400A242)
Drillco 1400A242 1-21/64" Taper Shank Drill #5 M.T. is engineered for general-purpose and deep-hole drilling in a wide range of materials. Its tanged conical shank is designed to fit directly into #5 Morse Taper (M.T.) sockets, sleeves, or drill press spindles—eliminating the need for a chuck. Made from high-speed steel with a black oxide finish, this drill offers exceptional durability, heat resistance, and consistent cutting performance.
Manufactured from premium-grade high-speed steel (HSS) for long tool life.
118° conventional point ensures smooth and accurate drilling starts.
Black oxide coating reduces friction and improves wear resistance.
9" flute length and 12" overall length support deep-hole drilling efficiency.
Tanged round shank with #5 Morse Taper offers a secure fit into industrial machinery.
Ideal for deep drilling applications with excellent chip evacuation.
Minimizes downtime by maintaining cutting performance over extended use.
Direct fit into Morse Taper spindles streamlines setup time.
Performs reliably in various materials, reducing the need for multiple drill types.
Technical Specifications:
Diameter: 1-21/64"
Shank Type: Taper Shank, #5 Morse Taper (M.T.)
Point Angle: 118°
Material: High-Speed Steel (HSS)
Surface Treatment: Black Oxide
Flute Length: 9"
Overall Length: 12"
Application: General-purpose and deep-hole drilling
Product identification
- Brand: Drillco
- Model / MPN: 1400A242
