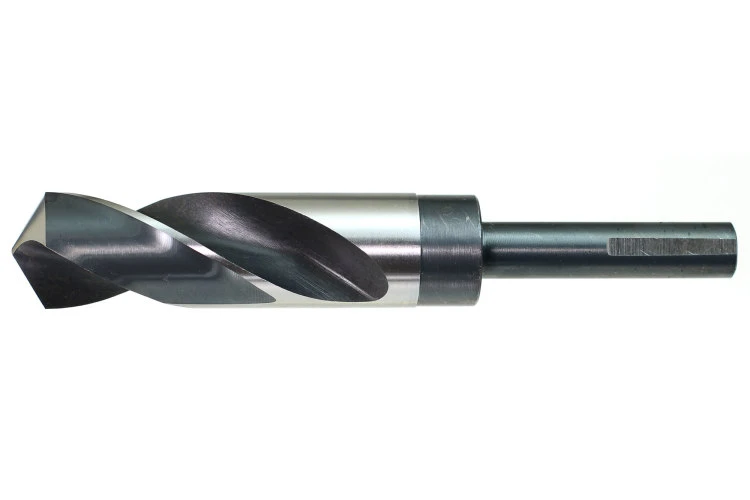

Drillco 1-13/64 S&D Drill, 1/2" Shank (1000E213) (Model 1.00E+216)
Drillco 1000E213 1-13/64" S&D Drill, 1/2" Shank is part of the 1000E series, crafted to increase the drilling range of portable drills using a 1/2" chuck. With a uniform flute and overall length across the series, this drill minimizes setup changes while delivering efficient performance in low to medium tensile strength materials.
1-13/64" diameter with 1/2" reduced shank and 3-flat design for handheld tool compatibility.
Optimized for low to medium tensile strength metals, such as aluminum and mild steel.
Spiral flute design aids in chip removal and coolant flow.
135° split point provides better accuracy and reduces walking.
Black and Gold finish increases lubricity and extends tool life.
6" overall length maintained throughout the series.
Enables larger hole drilling in standard 1/2" chucks without chuck replacement.
Delivers clean, accurate holes with reduced effort and breakage risk.
Streamlines jobsite workflow with standardized tool dimensions.
Versatile for both machine and handheld drilling operations.
Technical Specifications:
Series: 1000E (S&D)
Drill Size: 1-13/64"
Shank Size: 1/2" with 3 flats
Point Angle: 135° Split Point
Surface Treatment: Black and Gold
Overall Length: 6"
Material: High-Speed Steel
Application: Drilling low to medium tensile strength materials
Origin: Made in USA
Product identification
- Brand: Drillco
- Model / MPN: 1.00E+216
