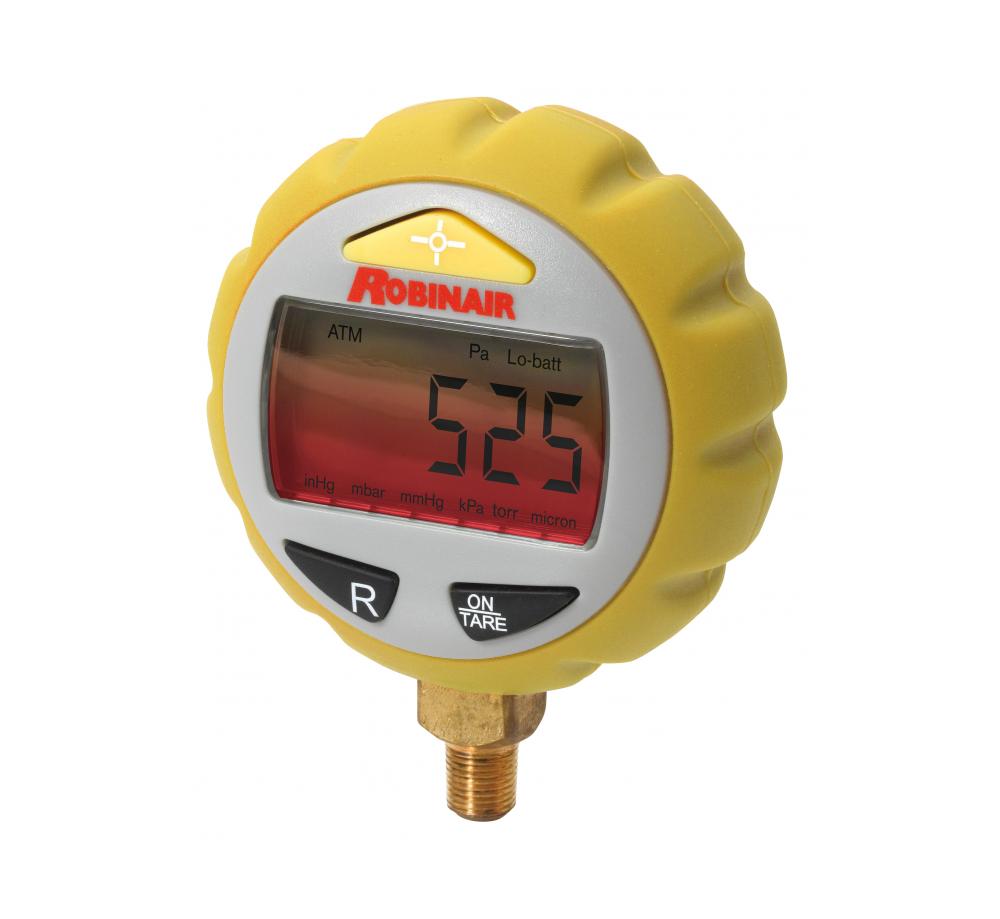

Digital Micron Vacuum Gauge

Connect, Measure, Test

The RAVG-1 employs a sophisticated MEMS Pirani type sensor that directly measures flow. Unlike all other field service gauges on the market, the RAVG-1 is NOT affected by temperature.

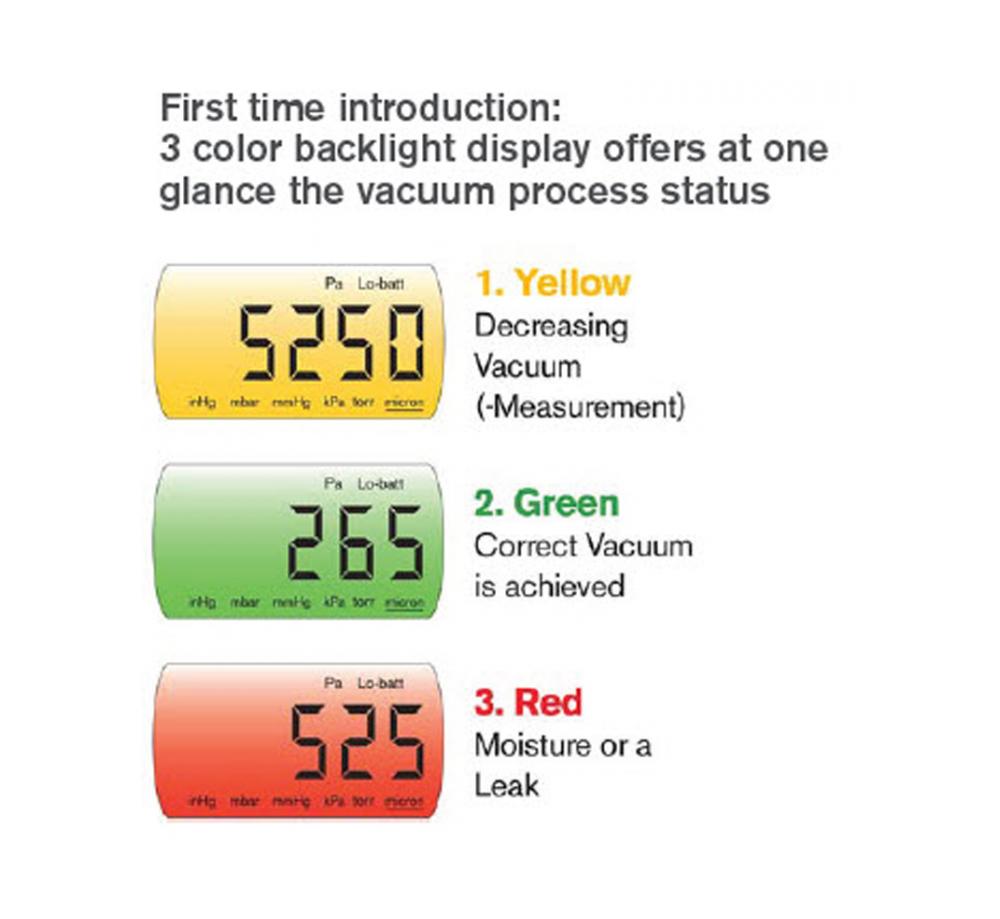

The RAVG-1 measures vacuum from Atmosphere to 10 microns in 6 different scales, and can withstand overpressure beyond 30 bar. The unit employs an industry first multi-color backlight that functions as an instant go/no go indicator of acceptable vacuum or leakage.

Features

High Resolution and unique backlight indicator make precision readings easy
Patent Pending design, employs a sophisticated MEMS Pirani sensor
Range from Atmosphere down to 10 microns
Measure vacuum in Microns, mmHg, inHg, mBar, Pascals or Torr
Extremely accurate at low micron levels
Impact and water resistant case with protective Rubber boot
Rapid response to changes in vacuum
Large easy to read 5 digit display
Auto shut off feature prolongs battery life
Battery powered
Integrated “magnetic” hook
Includes carrying case and tee adapters or in-line connections (1/4" MFL x 1/4" MFL and 1/4" FFL x 1/4" MFL versions)
