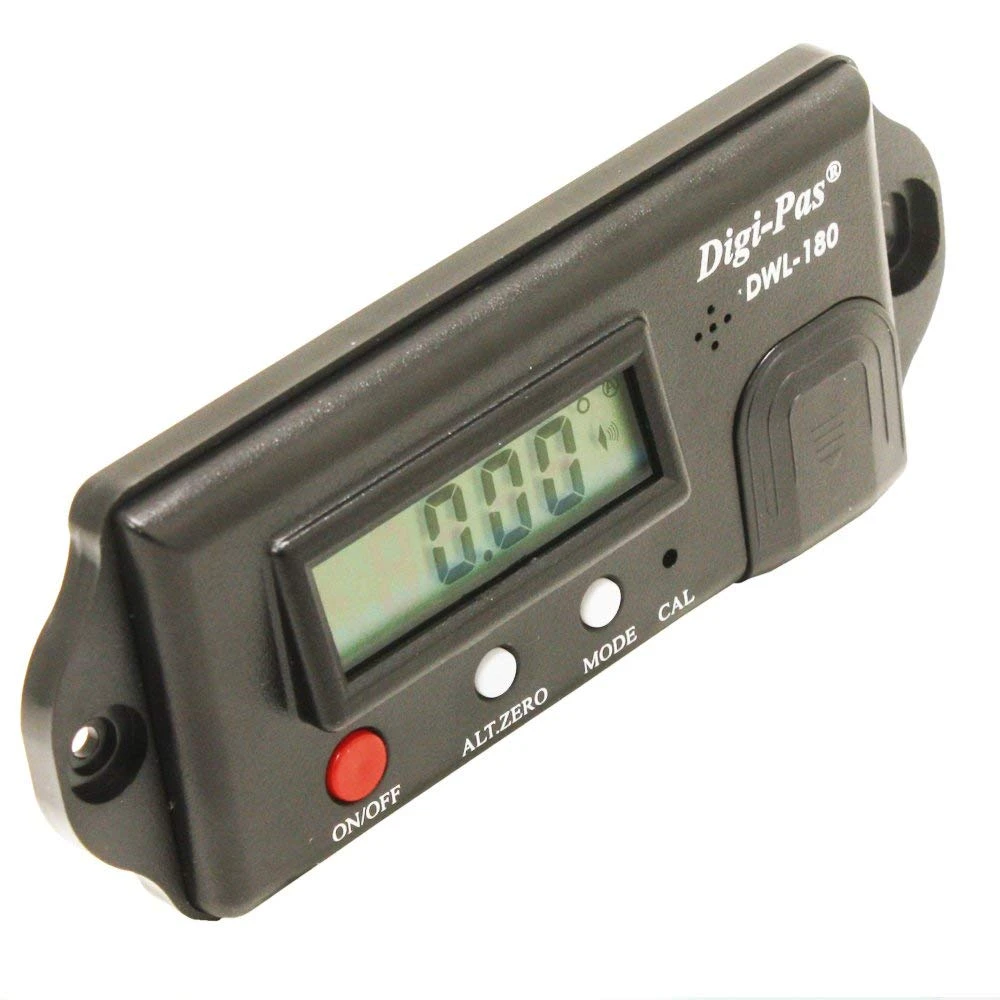

Digi-Pas Digital Level Module Screw-on DWL-180S Precision Measurement Tool (2-00181-S9)

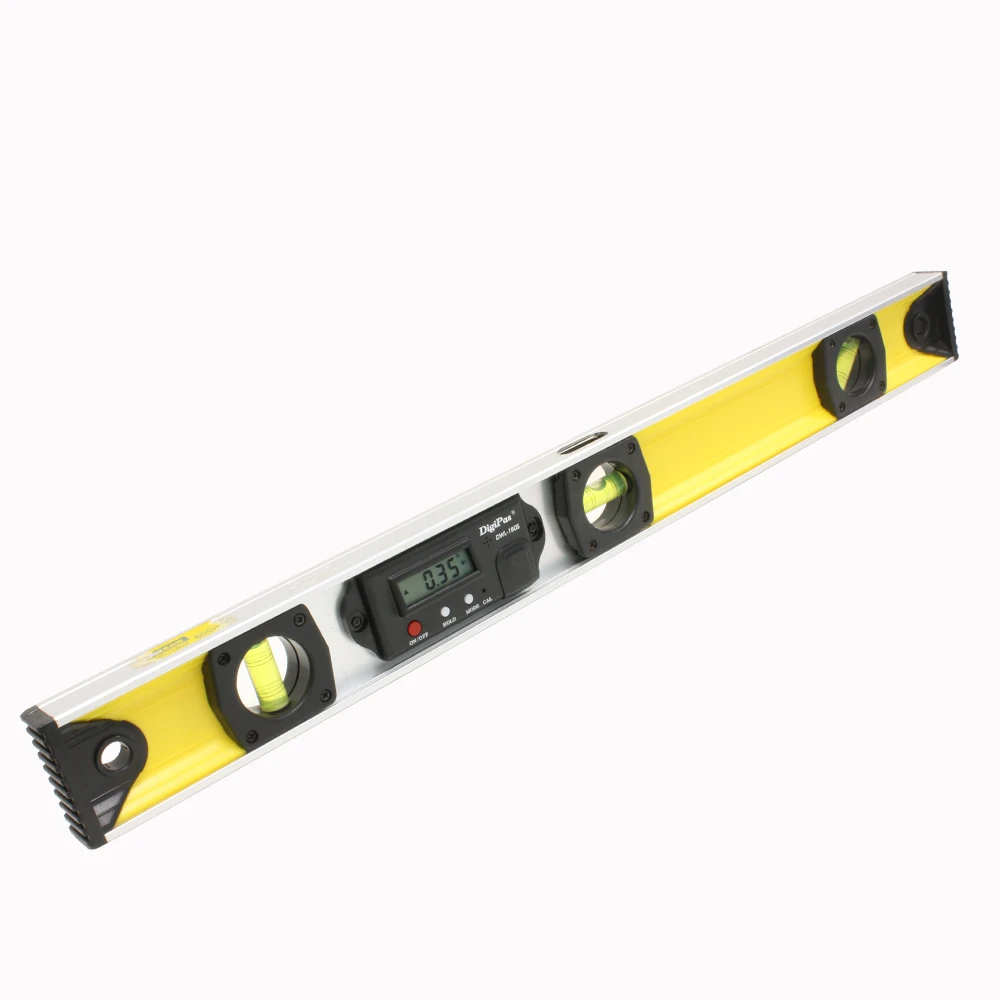

Digi-Pas Digital Level Module Screw-on DWL-180S (2-00181-S9) transforms your traditional spirit level into a high-precision digital level. This module features a measuring range of 0° ~ 90° with a resolution of 0.05° and an accuracy of ± 0.05° at 0° & 90°, ensuring reliable and speedy measurements.
The screw-on design with adjustment holes allows for easy installation on your existing spirit level. The digital display shows angles in degrees, percent slope, mm/M, and in/ft, providing versatile measurement options. The buzzer sound feature aids in achieving perfect leveling.
Specifications and Dimensions
Measuring range: 0° ~ 90°; 4 x 90° (360°)
Resolution: 0.05° (1.0mm/M)
Accuracy: ± 0.05° at 0° & 90°; ± 0.2° at 1°~89°

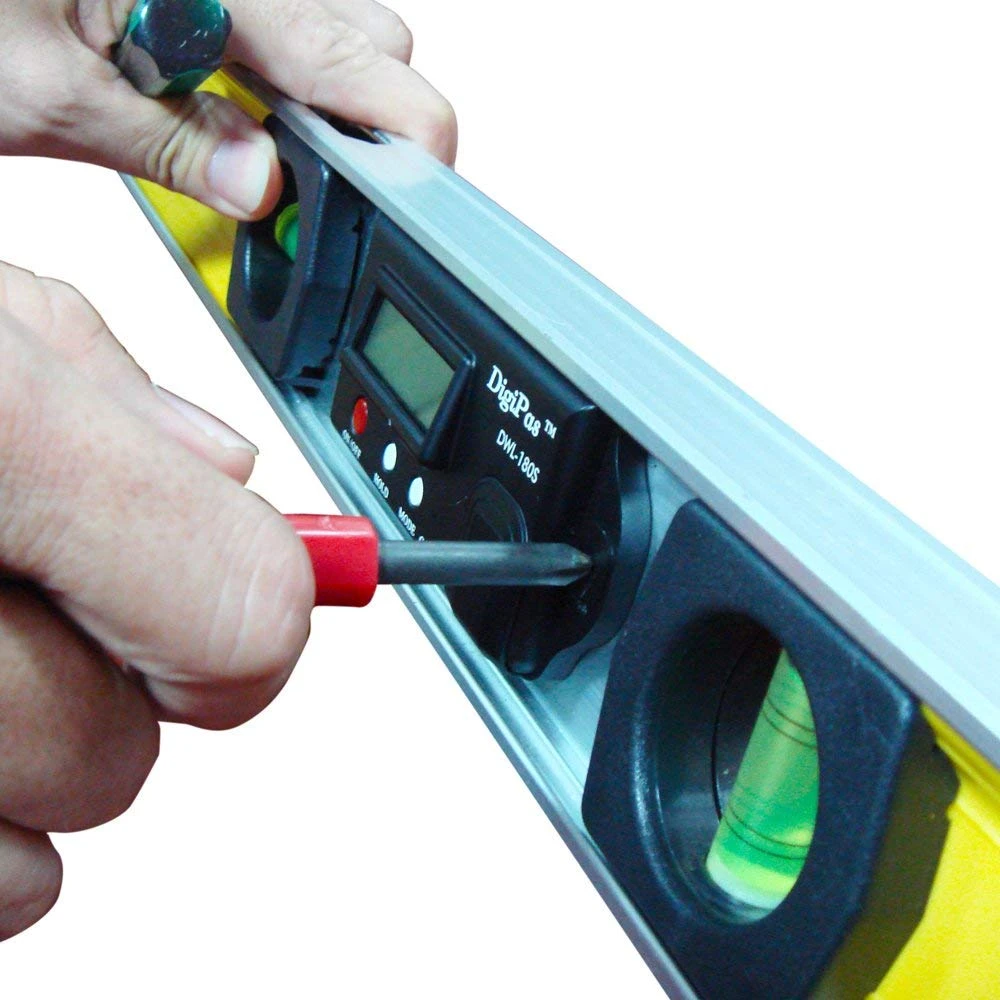

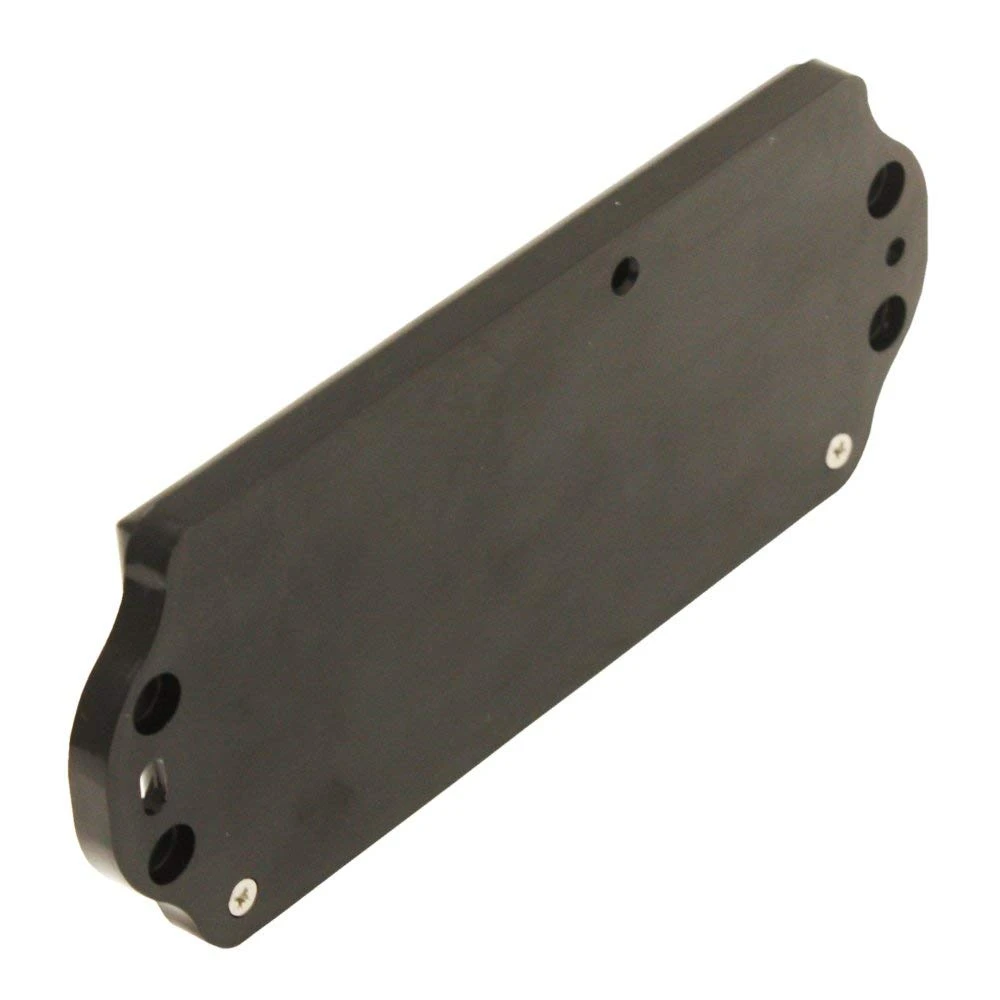

Screw-on design with adjustment holes
Digital display of angle in °(Degree), %(slope), mm/M, in/Ft
Auto-reverse reading of LCD display
Buzzer sound for level indication
Key Features and Benefits
Instantly convert your spirit level into a digital level
High accuracy with self-calibration feature
Versatile measurement display options
Audible buzzer for leveling assistance
Reliable and precise measurements for various applications
Product identification
- Brand: Digi-Pas
- Model / MPN: 2-00181-S9
