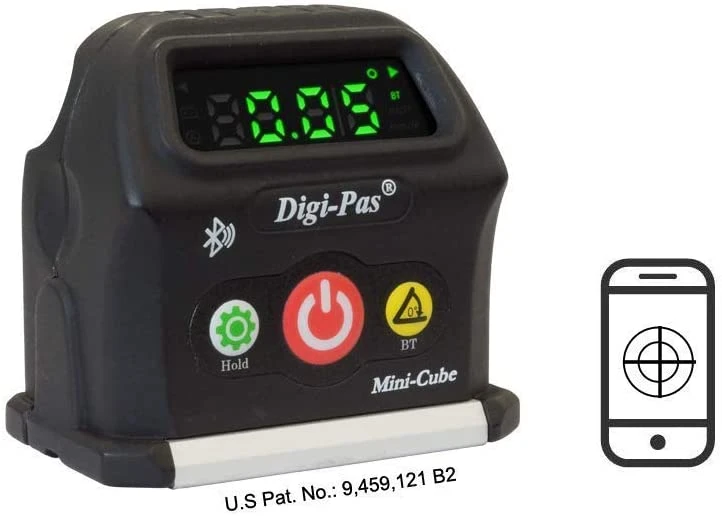

Digi-Pas 2-Axis Smart Cube Level DWL-90Pro Precision Measurement Tool (2-00099-99)
This smart cube digital level features a resolution of 0.05° and an accuracy of ± 0.1° at 0° ~ 1° and ±0.2° at 1° ~ 89°. The built-in magnet at the base allows for hands-free operation on metal surfaces.
Specifications and Dimensions
Measurement Range: 360° (4 x 90°) for X-axis; 0 ~ 5° for X&Y (DUAL Axis)
Resolution: 0.05°
Accuracy: ± 0.1° at 0° ~ 1° & ±0.2° at 1° ~ 89°

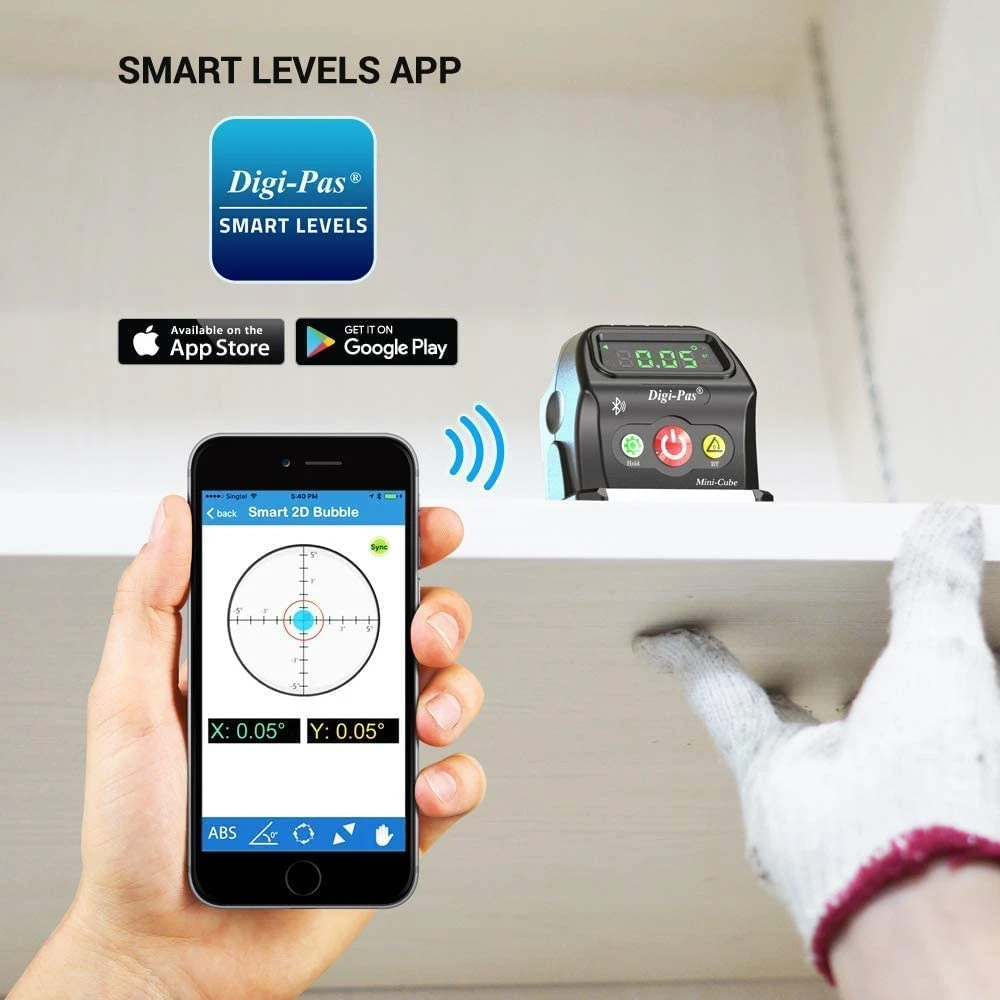

Wireless measurements using Digi-Pas® Smart Levels App
Bluetooth range: approx. 100 feet or 30 meters
Operating Temperature: 32°F to 122°F (0 to +50°C)
Functional features: Alternate zero, Hold, Auto shut-off, Strong built-in magnet, Bluetooth
Key Features and Benefits
Switch angle display between X and Y Axis
Instant unit conversion from °(Degree), mm/M & in/Ft
Alternate zero setting for measuring relative angles

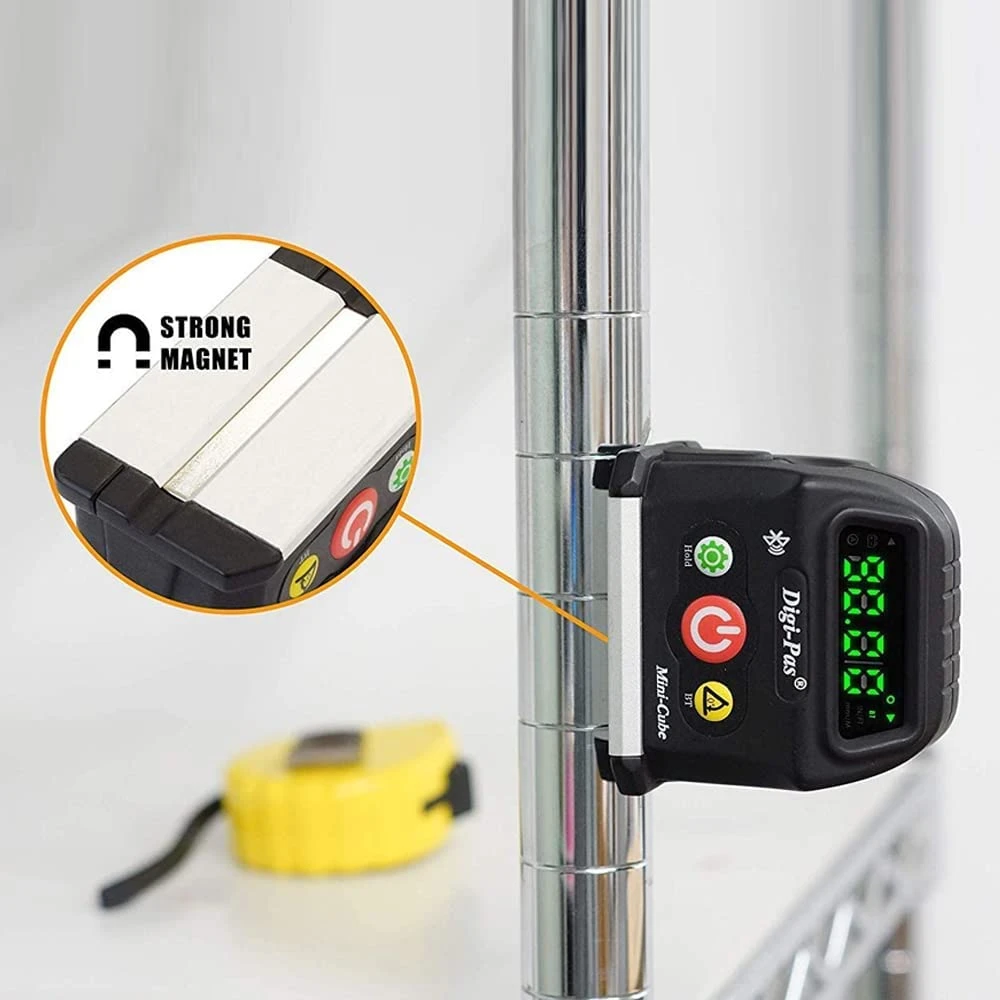

Strong built-in magnet for hands-free operation
Absolute level setting for symmetry readings
User self-calibration for maintaining accuracy
Product identification
- Brand: Digi-Pas
- Model / MPN: 2-00099-99
