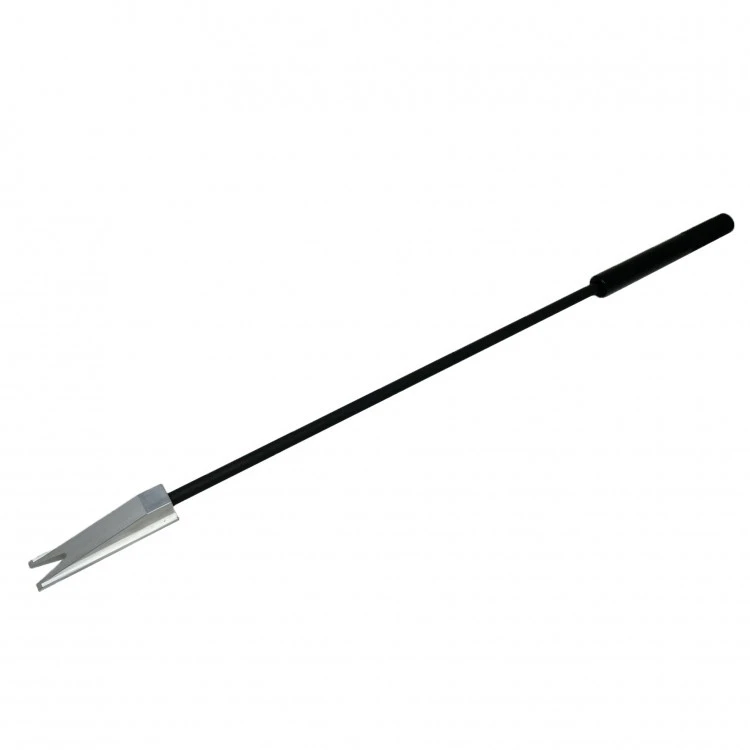

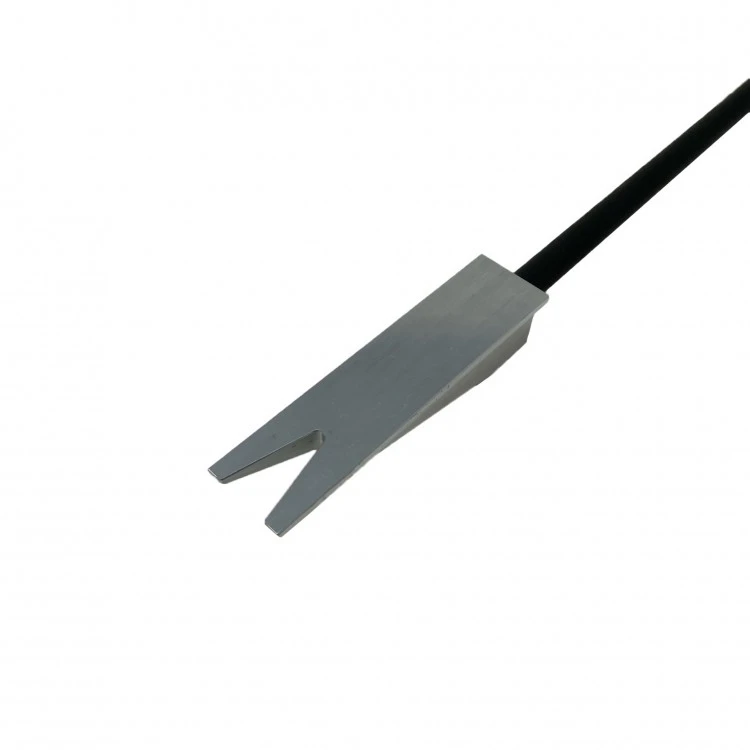

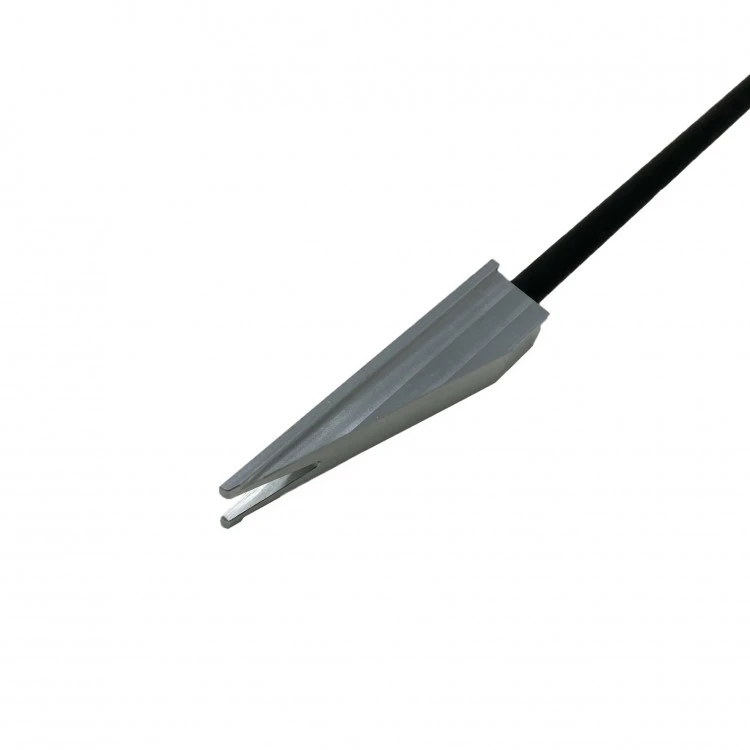

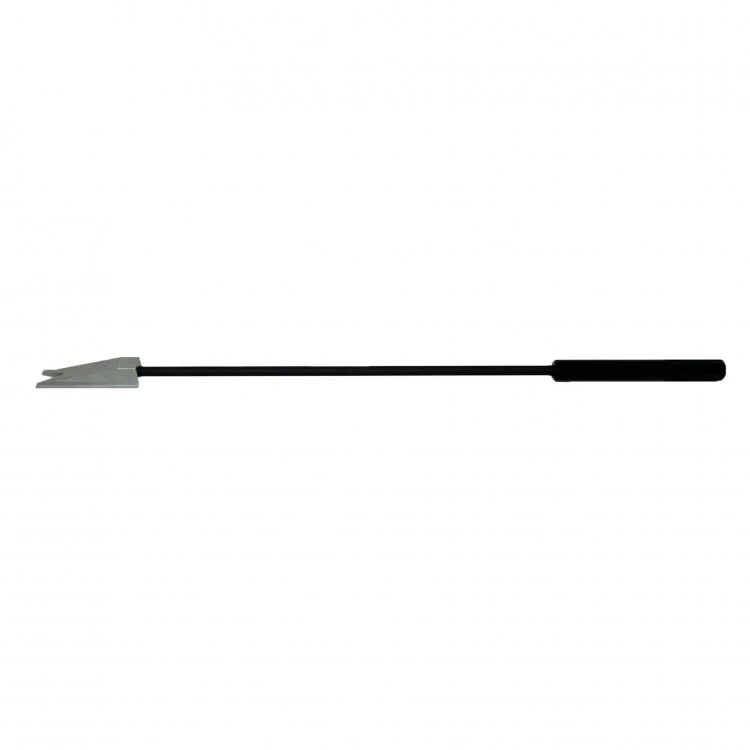

CTA Tools 7459 GM Lower Timing Gear Retainer Wedge – Atlas
Keeps the lower timing gear retainer locked while the cylinder head is removed from engine
Services I4, I5 & I6 (Atlas) engines
Without this tool, the disassembly of the lower portion of the engine will increase labor time by 12hrs+ for cylinder head repair
Make sure to follow the GM Service Bulletin “06-06-01-17C” for using the Lower Timing Gear Retainer Tool
Compare to GM Factory Tool #EN-48464
It is also recommended to use CTA #5047 & GM Factory Tool #EN-46547
Applications: (GM Atlas Engines) Buick, Chevrolet, GMC, Hummer, Isuzu, Oldsmobile & Saab
I6 – LL8 (Vortec 4200)
I5 – L52 (Vortec 3500)
I5 – LLR (Vortec 3700)
I4 – LK5 (Vortec 2800)
I4 – LLV (Vortec 2900)
Product identification
- Brand: CTA Tools
- Model / MPN: 7459
