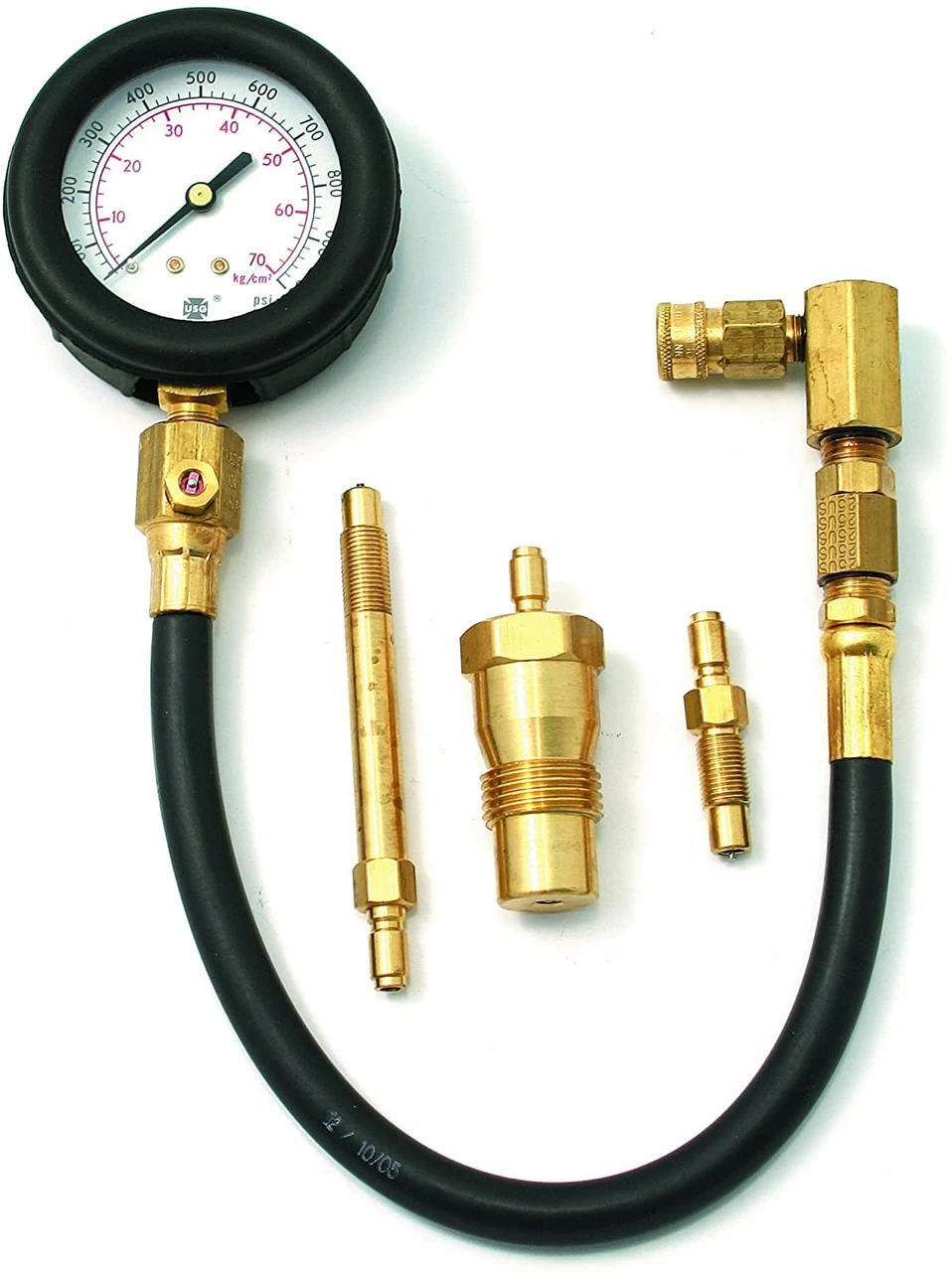

CTA Tools 2800 Diesel Compression Test Kit
Features a 2-1/2-Inch / 63mm-diameter gauge with dual-calibration (0 – 1,000 PIS / 0 – 70kg/cm2) and side-release valve for multiple readings without removing adapter
Kit includes 13-Inch / 33cm flexible hose with swivel end quick coupler
Includes Adapter No 2800×01 for GM 4.3L 6-cyl, 4.3L and 5.7L 8-cyl, Ford/Navistar 6.9L and 7.3L, Int Harvester 6.9L 10mm x 10 Glow Plug applications
Includes Adapter No 2800×02 for VW, Volvo, Audi, Dodge, Mercedes and Cummins 5.9L (24mm x 20) injector applications
Also includes Adaptor No 2800×03 for GM 6.2L V8 10mm x 10 Glow Plug applications
To do a compression test select the proper adapter for the engine to be tested. The adapters are designed to replace either the glow plug or the injector on the engine. Remove the glow plug or injector from the cylinder to be tested and shut off or bypass the fuel to that cylinder.
Turn the engine over for a few revolutions to blow out any carbon or foreign matter from the port area before connecting the adapter.
Always check the engine manufacturer’s recommendations for compression testing before test.
The adapters are designed to be threaded into or clamped into, the glow plug or injector hole in the same way the glow plug or injector is attached to the engine. The top of the adapter has a male quick disconnect to accommodate the compression tester. With the correct adapter in place on the engine, attach the compression tester to the adapter. Make sure the locking sleeve on the quick coupler of the tester slides completely into place.
Run, or turn over the engine to the manufacturer’s specs until the maximum pressure is reached, usually with 8-12 strokes of the engine. The reading is shown and held on the gauge. Push the side release valve to release pressure
Product identification
- Brand: CTA Tools
- Model / MPN: 2800
