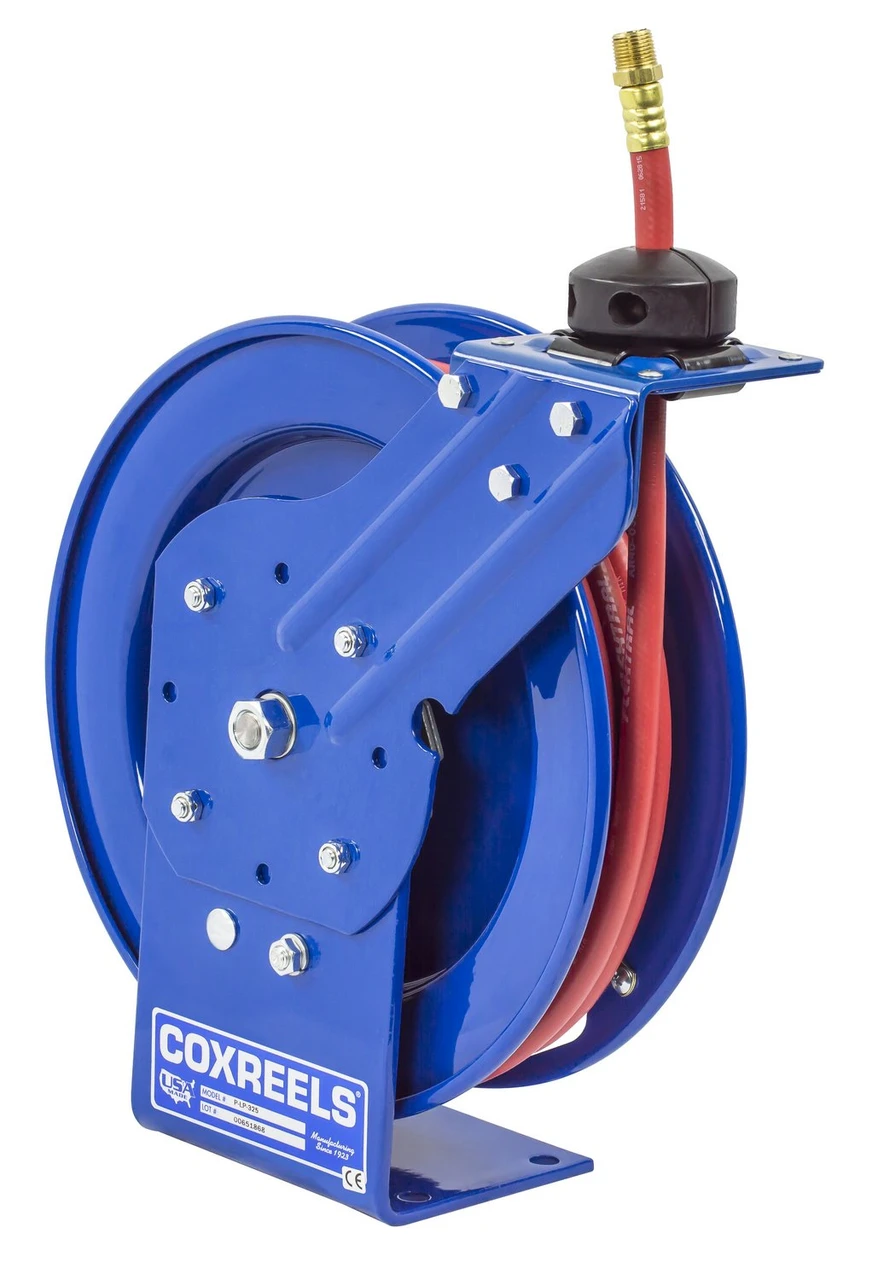

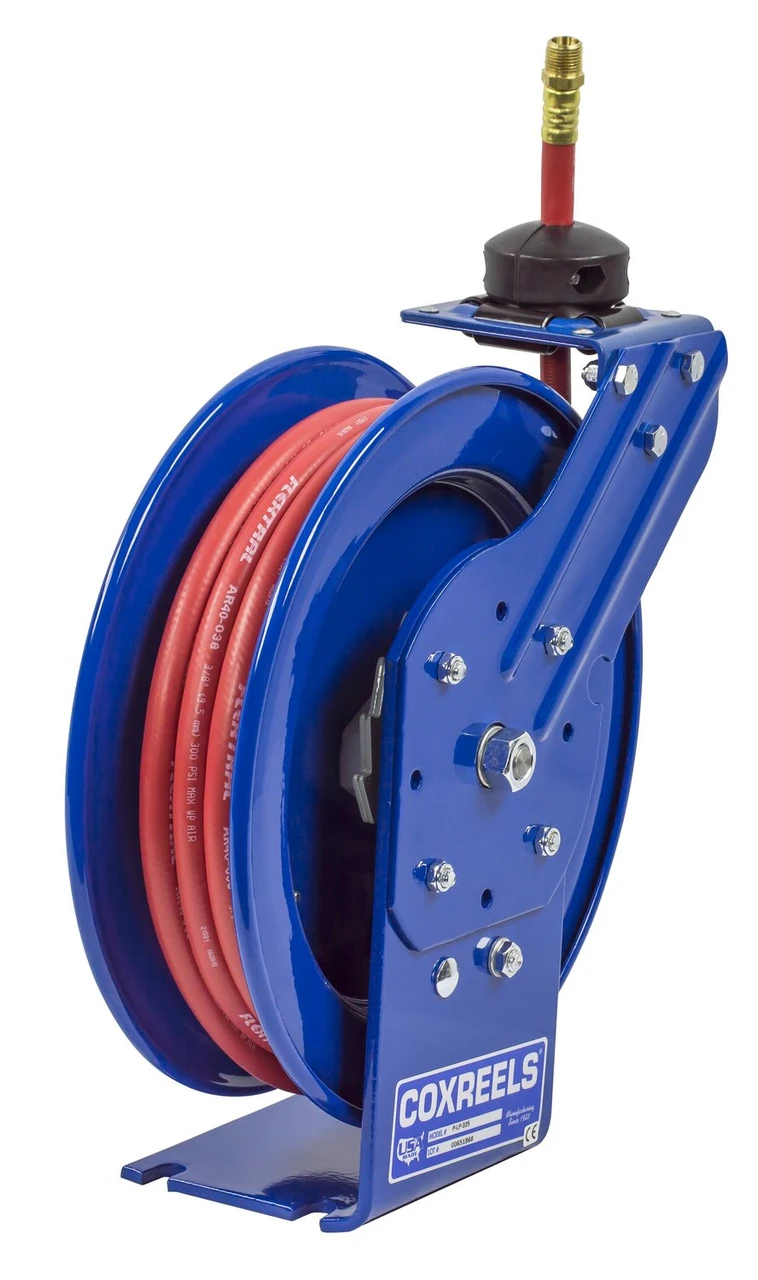

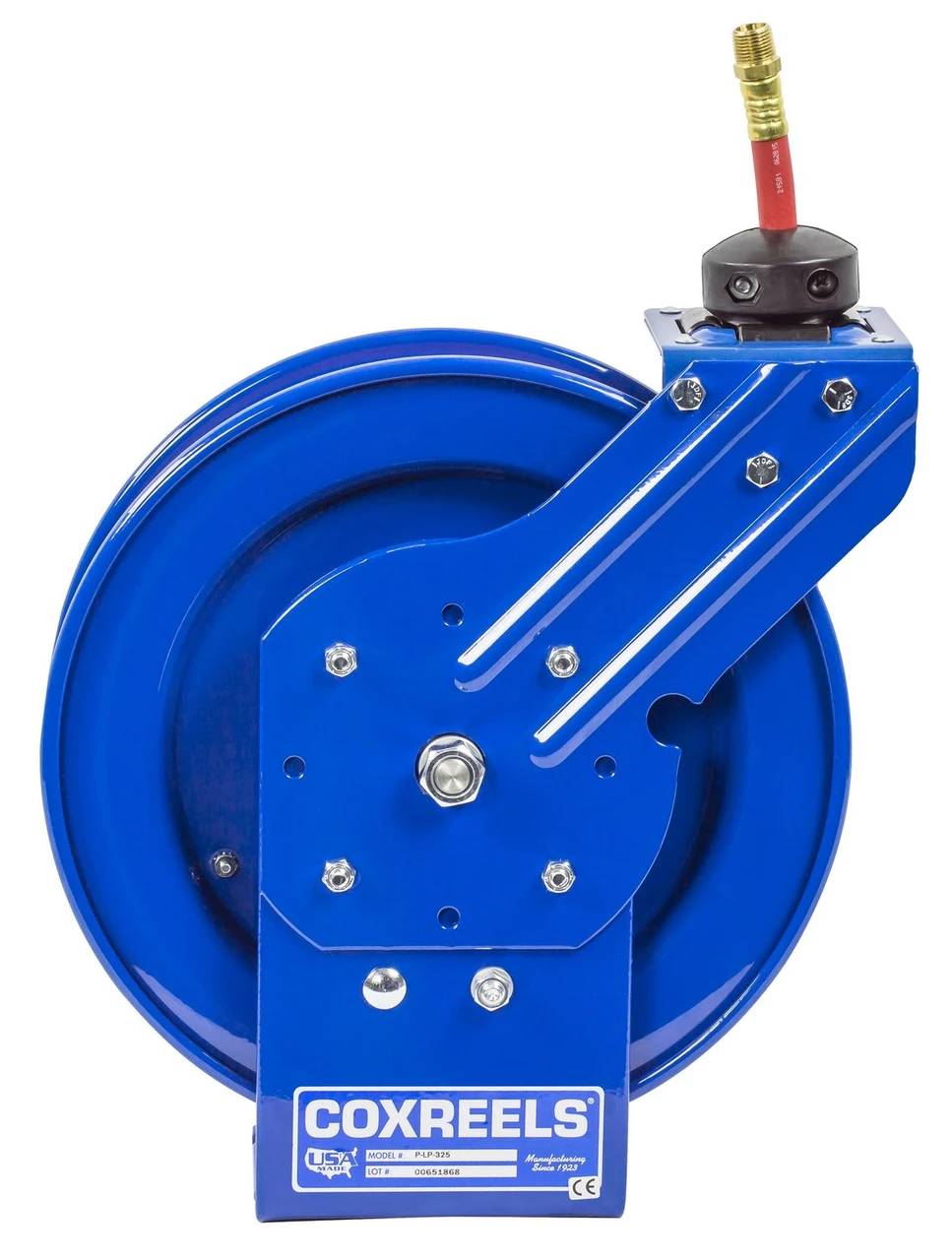

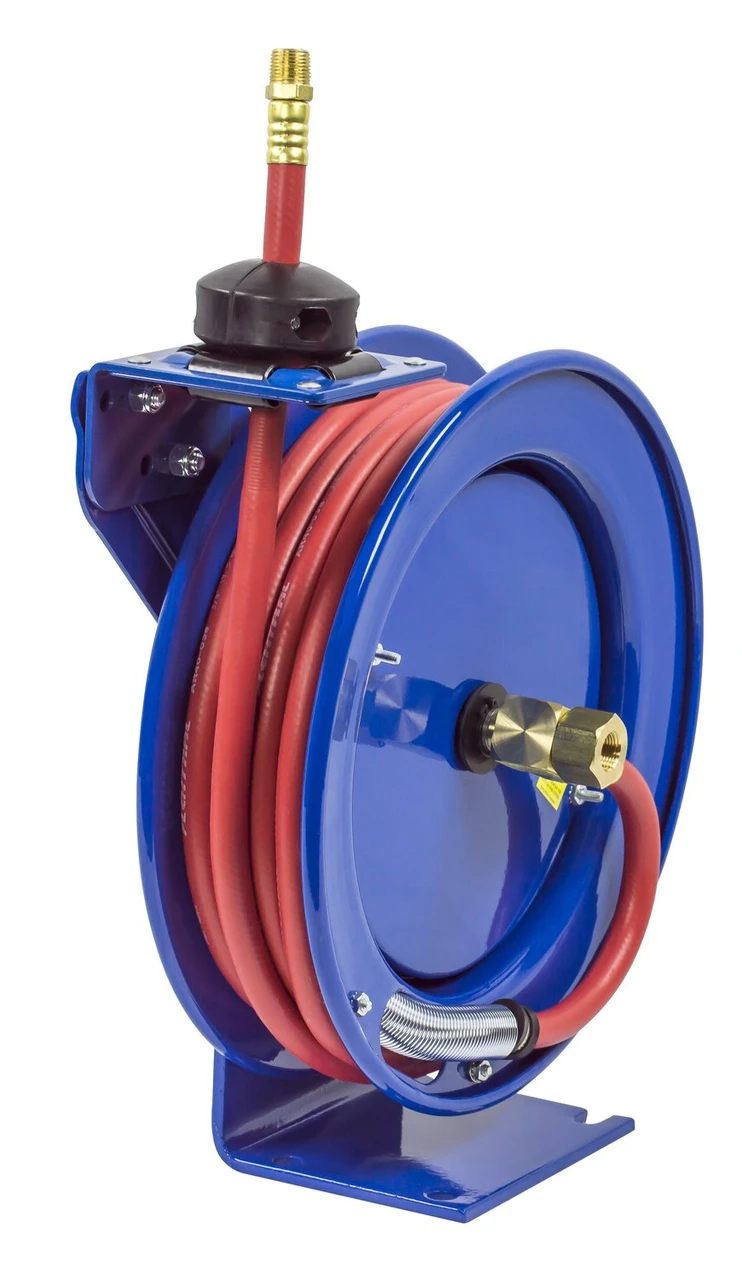

Coxreels P Series “Performance” Spring Driven Hose Reels – 25' Length (P-LP-325)
The Coxreels P-LP-325 Hose Reel is equipped with a factory-tuned cartridge-style spring motor for smooth and consistent hose retraction. The multi-position guide arm allows versatile mounting options for walls, floors, ceilings, and vehicles.
Specifications and Dimensions
Hose Length: 25'
Maximum PSI: 300
Overall Dimensions (W x H x L): 6.5" x 14.88" x 13.5"
Mounting Pattern (M x N): 3" x 5"
Base Dimensions (X x Y): 5" x 6"
Key Features and Benefits
Factory-tuned cartridge-style spring motor for smooth retraction
Multi-position guide arm for wall, floor, ceiling, and vehicle mounting
CNC spun discs with rolled edges enhance strength and protect the hose
Includes adjustable rubber hose stop and corrosion-resistant CPC powder coat finish
Product identification
- Brand: Coxreels
- Model / MPN: P-LP-325
