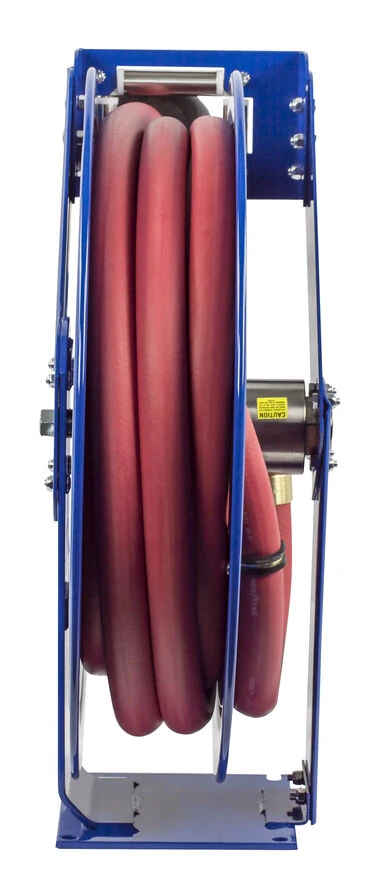

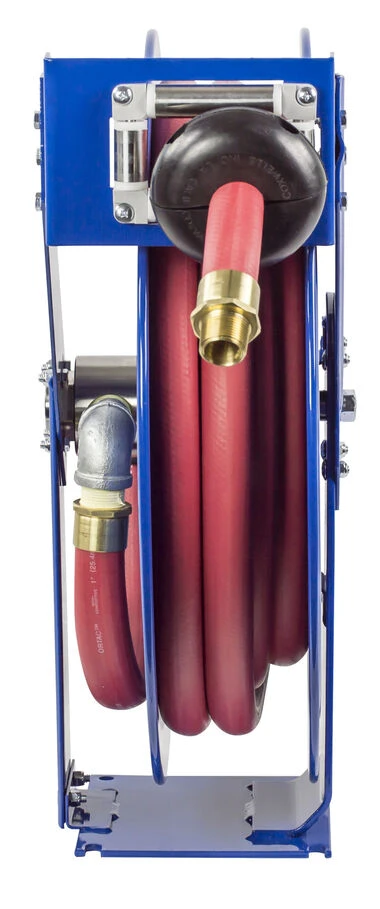

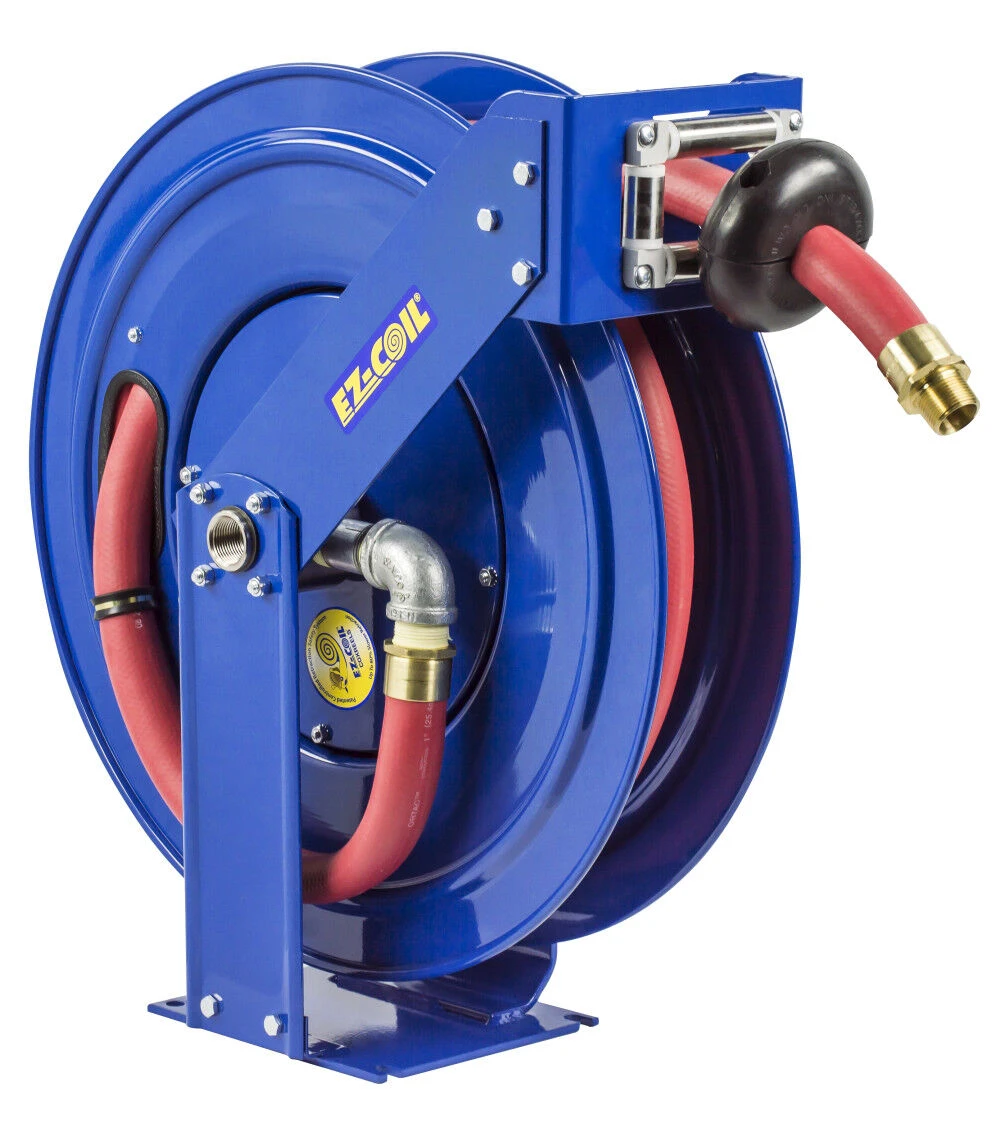

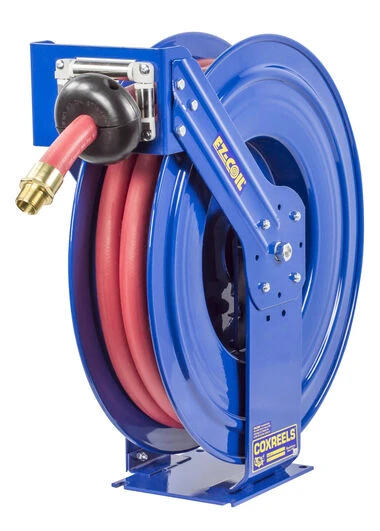

Coxreels EZ-TSHF Series Spring Driven Fuel Hose Reels – 50' Length (EZ-TSHF-550)
Coxreels EZ-TSHF Series Spring Driven Fuel Hose Reels – 50' Length (EZ-TSHF-550) is engineered to handle various non-aromatic fuel applications such as diesel, kerosene, and fuel oil. Designed for professional and industrial use, this reel provides a reliable solution for fuel transfers in utility trucks, aircraft refuelers, and tank systems.
This heavy-duty reel features a dual pedestal design with a solid one-piece steel base for maximum stability. Equipped with Coxreels’ patented EZ-COIL® technology, the reel retracts up to 80% slower than traditional reels, ensuring safe and efficient operation.
Specifications and Dimensions
Model: EZ-TSHF-550
Hose Length: 50'
Material: Steel frame with chip-resistant powder coating
Swivel: Machined solid brass 90° full-flow NPT swivel
Overall Dimensions: 10.5" (W) x 18.63" (H) x 17" (L)
Mounting Pattern: 7" (M) x 8" (N)
Base Dimensions: 8" (X) x 9" (Y)
Key Features and Benefits
EZ-COIL® safety technology slows retraction speed by up to 80%
Heavy-duty dual pedestal design with solid one-piece steel base
Machined brass swivel for superior fuel flow and durability
Multi-position guide arm adjusts for wall, floor, or ceiling mounting
CNC-spun discs with rolled edges enhance strength and safety
Factory-tuned spring motor for smooth and consistent retraction
Chip-resistant CPC powder coating prevents rust and corrosion
Product identification
- Brand: Coxreels
- Model / MPN: EZ-TSHF-550
