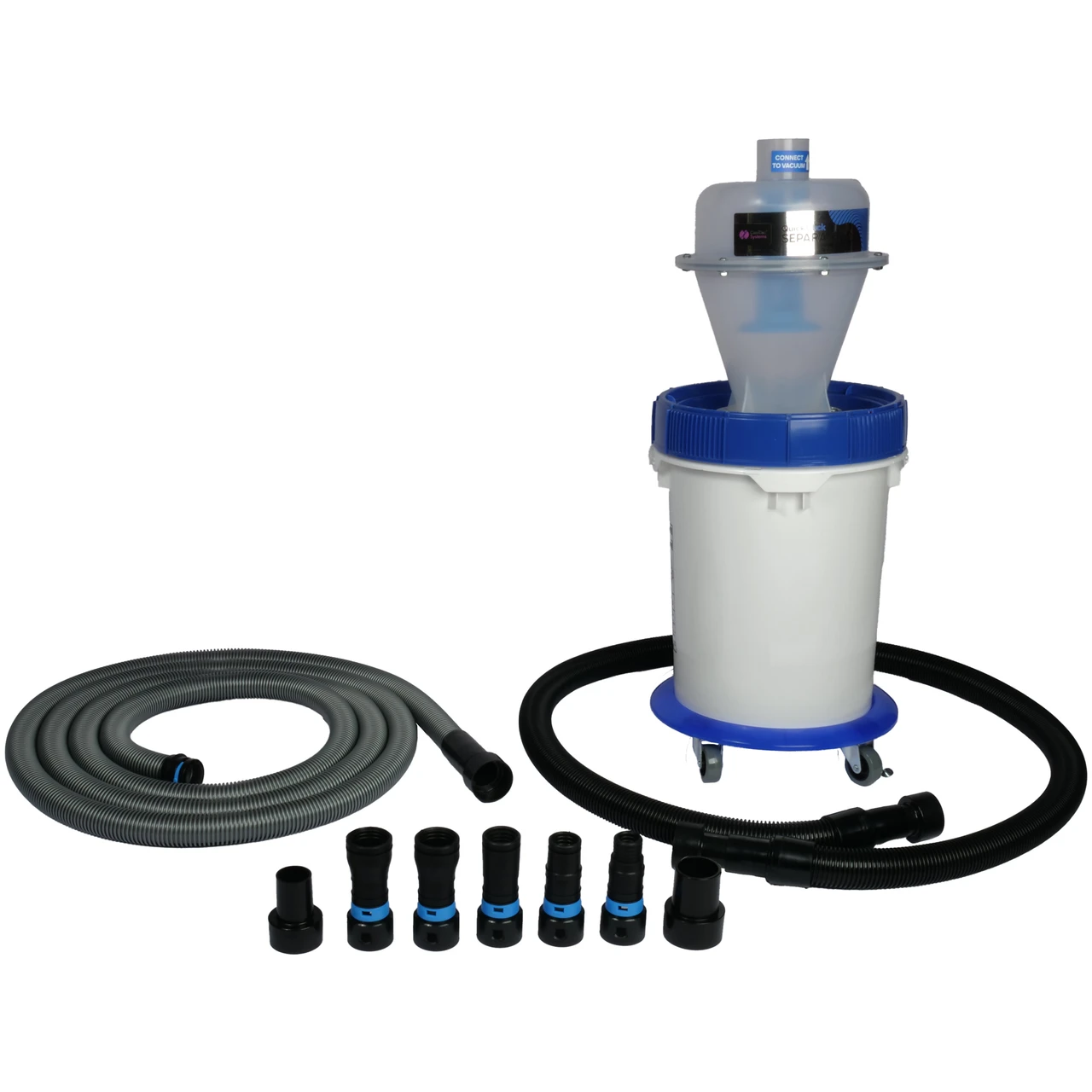

Cen-Tec Systems 16' Quick Click Separator w/Bin & Adapter Set (99472)
The Cen-Tec Systems 16' Quick Click Separator w/Bin & Adapter Set (99472) offers a comprehensive solution for managing dust and debris in workshops and garages. This system is engineered to capture a significant amount of particulate matter directly at the source when using power tools or during general cleanup, preventing it from entering your vacuum. By utilizing advanced cyclonic separation and a thoughtfully designed air path, this separator enhances the efficiency of your dust collection efforts, ultimately leading to a cleaner workspace and prolonged vacuum life. The inclusion of a mobile collection bin, commercial-grade hoses, and a versatile adapter set ensures broad compatibility and ease of use for a variety of tasks.
KEY FEATURES AND BENEFITS:
Quick Click separator: Features a smooth air path and exclusive baffle system to maximize cyclonic separation.
Dust capture efficiency: Captures up to 98% of dust before it reaches your vacuum, reducing filter changes and operating costs.
Inlet and outlet compatibility: Ports with a 2.25" inner diameter and 2.50" outer diameter for standard fitment.
Durable collection bin: Heavy-duty 5-gallon high-density polyethylene (HDPE) pail with a ratcheting threaded lid.
Mobile design: Four-caster wheeled trolley with 360-degree casters, including two locking wheels for stability.
Separator Inlet/Outlet: 2.25" Inner Diameter, 2.50" Outer Diameter
Collection Bin Capacity: 5 Gallons
Tool Connection Hose: 1.25" Diameter x 16 Feet
Vacuum Connection Hose: 1.50" Diameter x 6 Feet
Casters: Four 360-degree urethane overmold casters (two locking)
Included Adapters (Power Tools): 0.75" ID, 1.00" ID, 1.25" ID, 1.50" ID (x2) TPE Quick Click Adapters
Included Adapters (Vacuum/Workstation): 2 x 2.25" Tank/Workstation Adapters, 1 x 2.63" Adapter
Collection Bin Material: High-Density Polyethylene (HDPE)
Lid Type: Ratcheting Threaded Lid
Mobility: Four-Caster Wheeled Trolley
Pre-Assembled: Separator pre-assembled to the lid
Assemble the Trolley (if applicable): If your set includes a trolley that requires assembly, follow the provided instructions to attach the casters to the base.
Mount the Bin and Separator: Ensure the 5-gallon collection bin is placed on the wheeled trolley. The Quick Click separator should already be securely attached to the threaded lid of the bin.
Connect to Your Power Tool: Select the appropriate Quick Click TPE adapter from the five-piece set that best fits the dust port or shroud of your power tool. Push the 1.25" commercial-grade hose onto the chosen adapter, utilizing the Quick Click mechanism for a secure fit. Attach the other end of the 1.25" hose to the inlet port of the separator.
Connect to Your Vacuum: Choose the appropriate adapter (either one of the 2.25" adapters or the 2.63" adapter) that matches the hose or inlet port of your wet-dry or dust collection vacuum. Connect one end of the 1.50" x 6-foot hose to the outlet port of the separator and the other end to the chosen adapter, then connect the adapter to your vacuum. For some vacuums, you might connect the 2.25" adapter directly to the separator outlet and then your vacuum hose to the adapter.
Begin Operation: Ensure all connections are secure. Turn on your power tool and your vacuum. The separator will capture the majority of the dust and debris generated by the tool, depositing it into the collection bin.
Empty the Collection Bin: When the 5-gallon bin is full or nearing capacity, turn off your vacuum. Unscrew the threaded lid from the bin to access and empty the collected material. Securely re-attach the lid before resuming use.
Disconnect and Store: When finished, disconnect the hoses from your power tools and vacuum. The wheeled trolley allows for easy movement and storage of the entire system.
BENEFITS OF USING THE CEN-TEC SYSTEMS 16' QUICK CLICK SEPARATOR W/BIN & ADAPTER SET (99472):
Enhanced dust control: Captures up to 98% of dust and debris before it reaches your vacuum.
Cleaner work environment: Reduces airborne particles for a healthier workspace.
Extended vacuum filter life: Decreases the frequency of filter changes and associated costs.
Preserves vacuum performance: Maintains suction power and prolongs vacuum lifespan.
Versatile compatibility: Works with various power tools and vacuum systems.
Easy mobility: Wheeled trolley allows for convenient maneuvering.
User-friendly design: Pre-assembled system with a simple-to-empty collection bin.
Tool hose connection: 1.25" x 16-foot commercial-grade hose with five-piece Quick Click adapter set.
Flexible adapters: Includes TPE adapters in 0.75", 1.00", 1.25", and two 1.50" sizes with crush rings for secure fit.
Vacuum hose and adapters: 1.50" x 6-foot hose and adapters (2 x 2.25", 1 x 2.63") for compatibility with home and commercial vacuums.
Broad brand compatibility: Supports vacuums and tools from brands like Fein, Festool, Metabo, and Bosch.
Wet/dry use: Suitable for various cleanup applications, increasing system versatility.
Product identification
- Brand: Cen-Tec Systems
- Model / MPN: 99472
