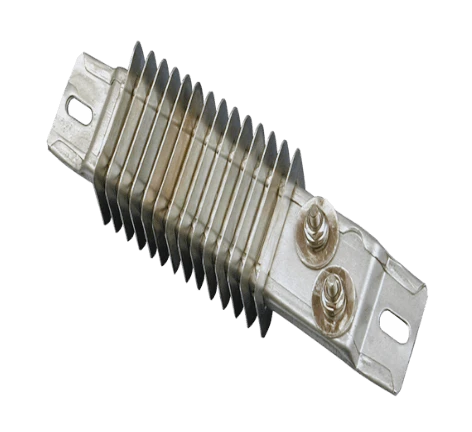

Caloritech 8" 120V 175W SS Series Strip Heater (SS1081)
The Caloritech 8" 120V 175W SS Series Strip Heater (SS1081) is a high-quality industrial electric radiant strip heater designed for efficient and reliable heating across numerous applications. This compact and robust component heater provides consistent heat output, making it an essential tool for maintaining temperatures, preventing freezing, and facilitating various industrial processes. Constructed with an aluminized steel sheath and internal high-temperature alloy resistance wire, the SS1081 is built to deliver effective heat transfer and long-term performance in demanding environments. Its standardized size and mounting options allow for straightforward integration into existing systems or new installations, offering a versatile and economical heating solution for a wide range of industrial and commercial settings.
KEY FEATURES AND BENEFITS:
Efficient Heat Transfer: Delivers 175 watts of power at 120 volts, providing focused and consistent heat for effective temperature maintenance and process optimization.
Versatile Applications: Ideal for surface heating of platens, dies, molds, and tanks, as well as process air heating in drying cabinets and ovens. It also serves effectively for moisture protection in motors and control panels.
Robust Construction: Features an aluminized steel sheath (rated for up to 1000°F / 538°C) that protects the heating element and ensures even heat distribution and durability.
Easy Integration: Designed for surface mounting with slotted holes, allowing for secure and stable installation in various equipment configurations.
Compact Design: At 8 inches in length, its size makes it suitable for applications where space is limited, without compromising on heating capability.
Model Number: SS1081
Power: 175 Watts
Voltage: 120 Volts
Length: 8 inches
Width: 1.5 inches
Sheath Material: Aluminized Steel
Watt Density: 11.7 Watts per square inch
Terminal Type: Two offset bolt-type terminals (#10-32 screw size)
Mounting Holes: Slotted (5/8" L x 9/32" W)
Heat Output: 597 BTU/hour
Identify Mounting Location: Select a clean, stable surface on the equipment or system where heat is required. Ensure adequate space for the 8-inch heater and consider any necessary secondary insulators.
Mount the Heater: Securely attach the strip heater to the chosen surface using appropriate fasteners through the slotted mounting holes. Ensure the heater is firmly in place to prevent movement during operation.
Connect Electrical Wiring: Connect the power supply wires to the two offset bolt-type terminals on one end of the heater. Ensure all electrical connections are secure and comply with local electrical codes and safety regulations. For voltages exceeding 300V to ground, use secondary insulators.
Integrate Temperature Control (Optional): If precise temperature control is desired, integrate an external control device such as a mechanical thermostat or a Caloritech CPA/CPB control panel. Connect the heater to the control device as per the control panel's instructions.
Apply Power: Once connections are verified and secure, apply power to the heater system. Monitor the initial operation to ensure proper function and heat distribution.
BENEFITS OF USING CALORITECH 8" 120V 175W SS SERIES STRIP HEATER (SS1081):
Provides stable and uniform heat distribution, crucial for sensitive processes.
Helps in maintaining desired temperatures in industrial fluids, preventing viscosity issues.
Effective in cold environments for anti-freeze applications in pipes and equipment.
Reduces moisture condensation in sensitive electrical enclosures and motors, prolonging component life.
Offers a cost-effective heating solution for a wide array of industrial needs.
Contributes to operational efficiency by optimizing heating processes.
High-temperature alloy resistance wire heating element.
Special refractory material insulation for optimal heat transfer.
Sheath compressed under high pressure for structural integrity.
Heat-treated assembly for enhanced performance.
Standard without adjustable thermostat for flexible external control.
Can be operated on lower voltages for reduced wattage output.
Designed for easy surface mounting versatility.
Terminals positioned for convenient electrical connection.
Product identification
- Brand: Caloritech
- Model / MPN: SS1081
