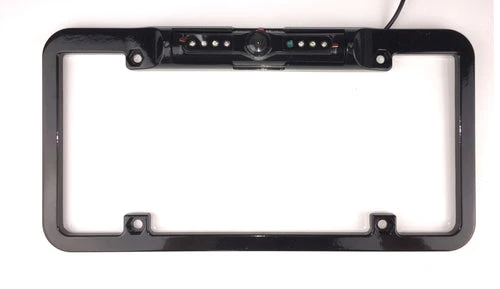

Boyo/Vision Tech Plate Backup Camera w/ Night Vision (BOYVTL300IRTJ)
The Boyo/Vision Tech Plate Backup Camera w/ Night Vision (BOYVTL300IRTJ) is an advanced full-frame license plate camera engineered to enhance reversing safety and precision for any vehicle. Built with a robust zinc metal frame, this camera integrates seamlessly into your license plate mounting area while remaining legal in all 50 U.S. states. It utilizes a high-sensitivity CMOS sensor to deliver video feed with accurate color reproduction.
KEY FEATURES AND BENEFITS:
Active Park Assist Lines: Dynamic guidelines curve in real-time with steering input, providing precise trajectory for safe parking.
Integrated Night Vision: Built-in Infrared (IR) sensors ensure visibility in complete darkness.
Robust All-Weather Construction: Zinc metal frame with IP68 waterproof rating ensures full protection from dust, dirt, and water immersion.
Wide View CMOS Sensor: High-sensitivity CMOS sensor captures a 140° diagonal view to minimize blind spots.
Versatile Mounting and Display: Switchable reverse or normal imaging supports both rear and front mounting options.
50-State Legal Full Frame: Non-obstructive design fully compliant with license plate visibility laws in the United States.
Model Number: BOYVTL300IRTJ
Frame Type: Full-Frame License Plate Mount
Frame Material: Zinc Metal
Image Sensor: CMOS Image Sensor
Resolution: 420 TV Lines (628×586)
Viewing Angle: 140° (Diagonal)
Waterproof Rating: IP68
Operating Voltage: 12V DC
Night Vision: Yes (Infrared Sensors)
Parking Lines: Active Park Assist Lines (Dynamic)
Image Type: Reverse Image Selectable
U.S. Patent: US7,195,405

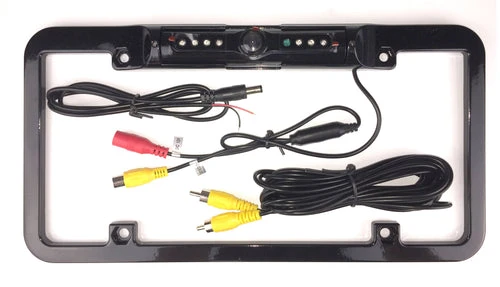

Included in the Box: VTL300IRTJ Camera, Wiring Harness, Mounting Hardware, Extension Cable (approx. 20ft)
Mount the Camera: Secure the full-frame license plate camera using the included hardware, ensuring proper alignment and positioning.
Route the Cable: Run the power and video cables into the vehicle interior (through trunk grommet if applicable) toward the monitor location.
Connect the Power: Attach the power wire to the positive reverse light circuit and ground wire to a chassis ground point.
Connect the Video: Plug the RCA video cable into the monitor or compatible head unit input.
Verify Functionality: Shift the vehicle into reverse to check for proper image display and dynamic guidelines.
Adjust the Angle: Fine-tune the vertical swivel to optimize the field of view and ensure alignment with the ground.
BENEFITS OF USING BOYO/VISION TECH PLATE BACKUP CAMERA W/ NIGHT VISION (BOYVTL300IRTJ):
Eliminates Rear Blind Spots: Wide-angle 140° lens ensures comprehensive coverage behind the vehicle.
Parking Precision: Active Park Assist Lines improve accuracy in tight spaces and parallel parking.
Reliable Low-Light Operation: Infrared night vision provides consistent clarity even in complete darkness.
Long-Term Reliability: Rugged zinc frame and IP68 waterproofing ensure durability in all conditions.
Maintains Vehicle Aesthetics: Full-frame design integrates discreetly without blocking license plate visibility.
Full-Frame Mount: Secure design fits around the license plate without obstruction.
Durable Zinc Construction: Scratch-resistant coated zinc body ensures longevity.
True-Color CMOS Sensor: Provides accurate and vibrant video output.
High Resolution: 420 TV Lines for clear video display.
Selectable Image Mode: Switch between reverse and standard views as needed.
Adjustable Camera Angle: Vertical swivel adjustment allows tailored viewing.
Dynamic Guide Lines: Active trajectory lines respond to steering input for safer reversing.
Weatherproof Protection: IP68 rating guarantees dustproofing and resistance to water immersion.
Automatic White Balance: Maintains true colors under varying light conditions.
Night Vision Capability: Infrared LEDs enhance visibility in low-light environments.
Legal Compliance: Meets U.S. requirements for unobstructed license plate visibility.
Product identification
- Brand: Boyo/Vision Tech
- Model / MPN: BOYVTL300IRTJ
