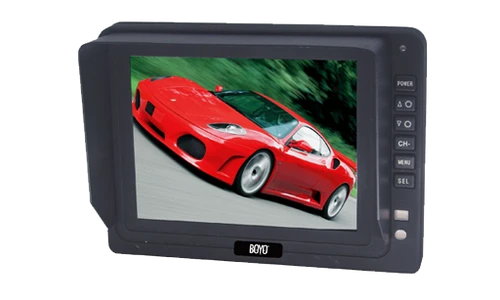

Boyo/Vision Tech 5" TFT-LCD Backup Camera Monitor (BOYVTM5000)
KEY FEATURES AND BENEFITS:
High-Resolution Clarity: The 5-inch TFT LCD screen provides a sharp, wide-angle, high-resolution display, ensuring that drivers have a clear and accurate view of the area behind the vehicle.
Multi-Camera Support: Supports three independent video inputs, allowing for rear, side, or front cameras to be connected simultaneously.
Automatic Reverse Activation: Trigger wires enable the monitor to instantly power on and display the primary camera feed when the vehicle is shifted into reverse.
Flexible Image Orientation: Supports horizontal, vertical, and normal image adjustments for proper display alignment regardless of mounting position.
Universal Video Compatibility: Automatically switches between PAL and NTSC formats for seamless compatibility with most automotive cameras.
Enhanced Control: Comes with a full-function remote control for convenient access to menu options, including brightness, color, and contrast adjustments.
Screen Type: 5” Digital TFT LCD
Video System: Auto/PAL/NTSC
Resolution: 640 x 480 (Native)
Power Supply: 12VDC to 32VDC
Display Format: 16:9
Power Consumption: <7W
Inputs: 3 Video Inputs
Dimensions: 5.81" L x 1.04" W x 4.29" H (Without Flush Mount)
Included in Shipment: Monitor, Power Wire/Harness, Full Function Remote Control, Base Support Mount, Flush Mount Kit, Sun Shield
Mounting: Choose a suitable location (dashboard or console) and use either the included base support or flush mount kit to secure the monitor.
Power Connection: Connect the red power wire and black ground wire to a switched 12V–32V power source.
Camera Connection: Connect the cameras to the monitor's video inputs using RCA connectors.
Trigger Wire Setup: Connect the designated trigger wire to the reverse light circuit to enable automatic activation in reverse gear.
Manual Operation: Power on the monitor manually using the remote or side buttons to switch between video inputs.
Automatic Operation: Shift into reverse to automatically activate the monitor and display the backup camera feed.
Adjustments: Use the remote control to access the On-Screen Display (OSD) menu for brightness, contrast, color, and image orientation adjustments.
BENEFITS OF USING BOYO/VISION TECH 5" TFT-LCD BACKUP CAMERA MONITOR (BOYVTM5000):
Improved Reversing Safety: Reduces blind spots and enhances awareness of obstacles, pedestrians, or pets behind the vehicle.
Versatile Vehicle Application: Supports both 12V and 32V DC systems, making it suitable for cars, trucks, vans, and RVs.
Clean, Integrated Look: Flush-mount kit allows for factory-style installation for a seamless appearance.
All-Weather Reliability: Automatic PAL/NTSC switching and durable design ensure consistent performance in varied conditions.
Streamlined User Experience: Remote control and automatic button backlighting simplify operation, even in low-light conditions.
Supports a wide operating voltage range from 12 volts to 32 volts DC.
Automatic backlighting for button visibility in low-light conditions.
Built-in audio speaker for use with cameras featuring microphones.
Three distinct video inputs for multiple camera configurations.
Remote control operation for input selection and menu navigation.
Includes a protective sun shield to reduce glare and improve daytime viewing.
Adjustable picture settings for brightness, color, and contrast via the OSD menu.
Comes with both a base support stand and flush-mount kit for flexible installation.
Product identification
- Brand: Boyo/Vision Tech
- Model / MPN: BOYVTM5000
