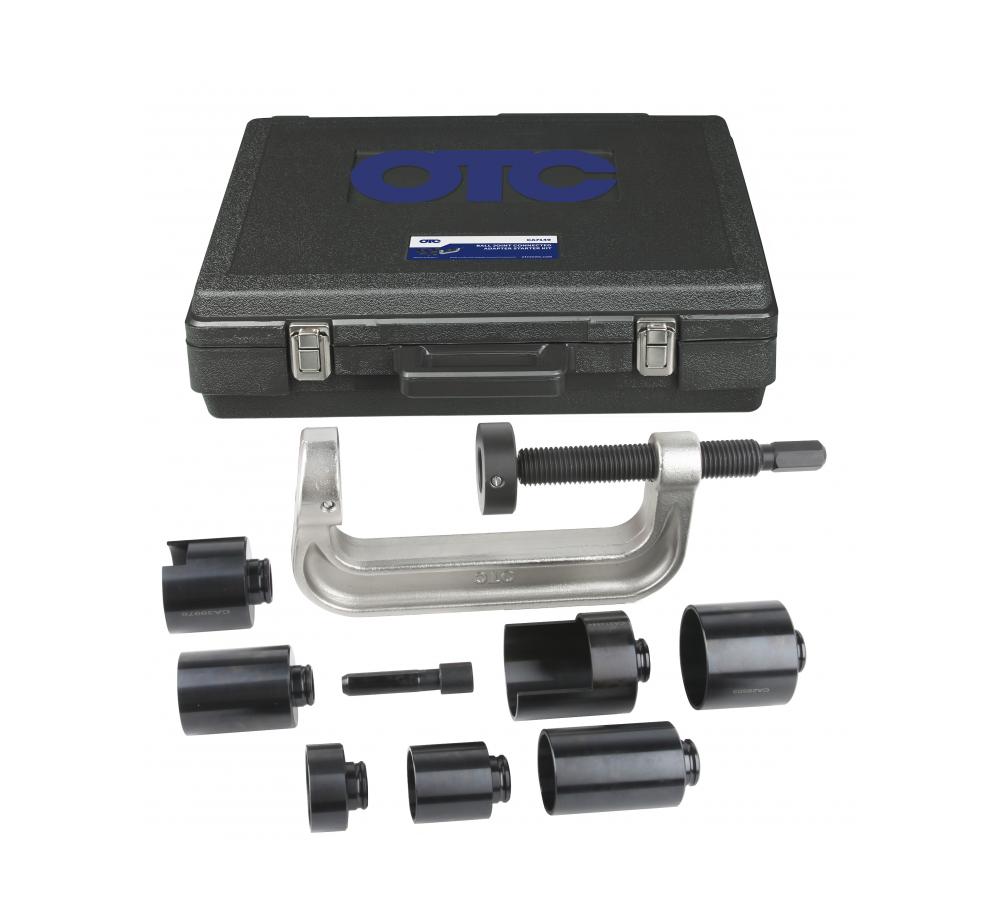

Ball Joint Connected Adapter Starter Kit

A new solution, building on the legendary OTC 7249 C-frame ball joint kit. This extra-large C-frame uses stainless steel ball bearings to securely hold cups and adapters, making it easier to setup your press to remove and install ball joints, U-joints, wheel studs and more. The starter kit includes 7 cups and adapters for more than 230 vehicle applications, 38% more vehicle models than competitive C-frame kits.

Fully compatible with existing OTC ball joint kits, expand your vehicle applications and make R&I of ball joints and suspension components faster and easier. Starter kit comes with a 17-page manual with YMME information and adapter part numbers based on vehicle application.

The impact-rated forcing screw pushes with up to 10 tons of force and features a striking cap to shock ball joints loose. Striking cap also helps align components for installation. A proprietary coating helps extend forcing screw durability and lifespan, for years of trouble-free service.

Add up to 18 available connected adapters, purchased individually or as the CA6630 Professional Kit, to cover more than 600 vehicle models. Available CA6630MAN-18 manual features fully illustrated diagrams and how-to instructions by YMME, adapter and vehicle-specific applications.

Add CA580523, purchased separately, for Ford Track Bar Ball Joint Replacement. See Downloads section for operating instructions.

The OTC CA7149 is:

Easier to handle: Patented connection and adapter design uses spring-loaded stainless steel ball bearings to securely attach all cups and adapters to the C-frame

Available as a Professional Kit for more coverage: 25 cups and adapters work on more than 600 vehicle models (CA6630 Professional Kit), 76% more vehicle models than the competition

Backwards compatible: Works with most OTC ball joint kits, cups and adapters

Faster to use: Locking cups and adapters set up faster on the vehicle and leave one hand free

Hassle-free: No O-rings or removable fasteners to lose, damage or replace

Multi-function: For R&I of ball joints, U-joints, wheel studs and more

Connected adapter C-frame with patented secure-locking ball bearings to hold adapters in place (CA6636-1)

Forcing screw with proprietary coating and heat-treated for long life (CA6636-2)

7 connected cups and adapters, covering more than 230 vehicle models

CA204508B, CA313444, CA222305, CA39976, CA29503, CA29505, CA555379 adapters

Connected adapter forcing screw plug to securely hold connected adapters (CA6636-3)

Flat-top forcing screw plug for ball joint removal (29501A)

Blow-molded case to keep all components organized

Features

Patented connection and adapter design uses spring-loaded stainless steel ball bearings to securely attach connected cups and adapters to the C-frame and forcing screw
Works with most OTC ball joint kits, cups and adapters
Locking cups and adapters set up faster on the vehicle and leave one hand free
No O-rings or removable fasteners to lose, damage or replace
For R&I of ball joints, U-joints, wheel studs and more
Professional Kit (CA6630) option for more coverage includes 25 cups and adapters to work on more than 600 vehicle models (CA6630 Professional Kit), 76% more vehicle models than the competition
Application range from Honda Civic to F-550 and in-between

Included components

CA6636-1 Connected adapter C-frame with patented secure-locking ball bearings to hold adapters in place
CA6636-2 Forcing screw with proprietary coating and heat-treat for long life

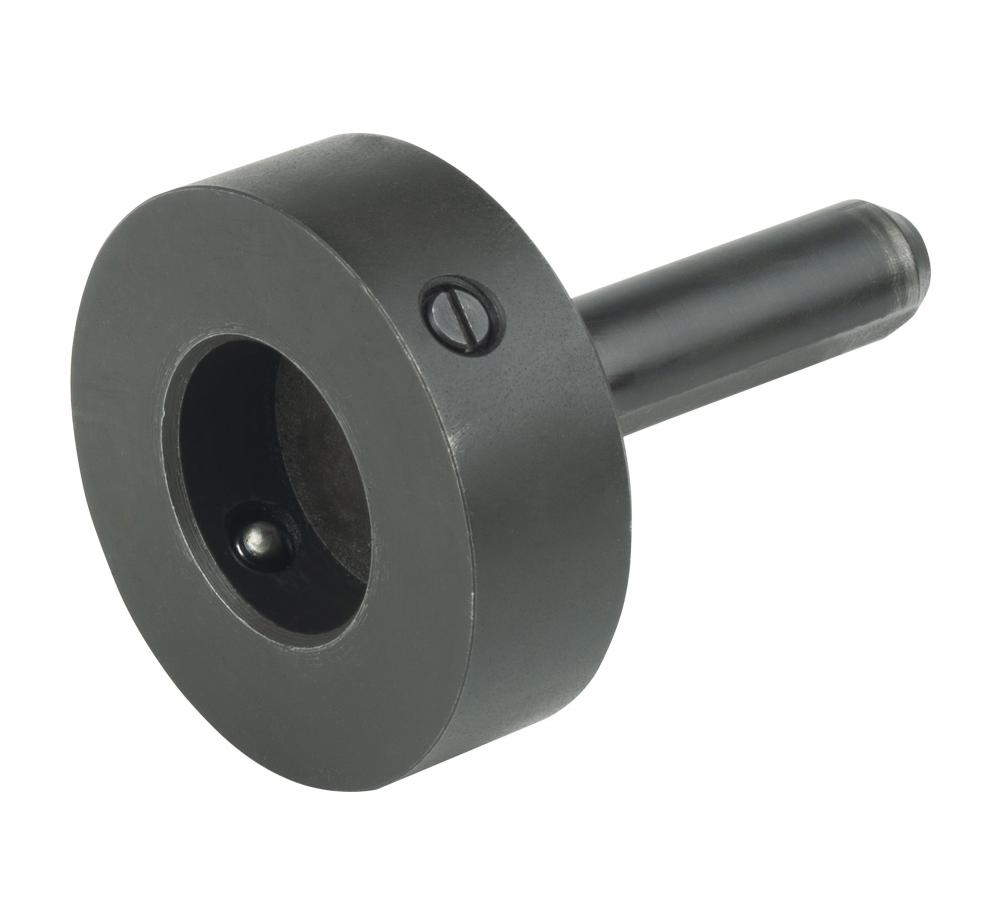

CA6636-3 Connected adapter forcing screw plug to securely hold connected adapters
29501A Flat-top forcing screw plug for ball joint removal
CA204508B adapter

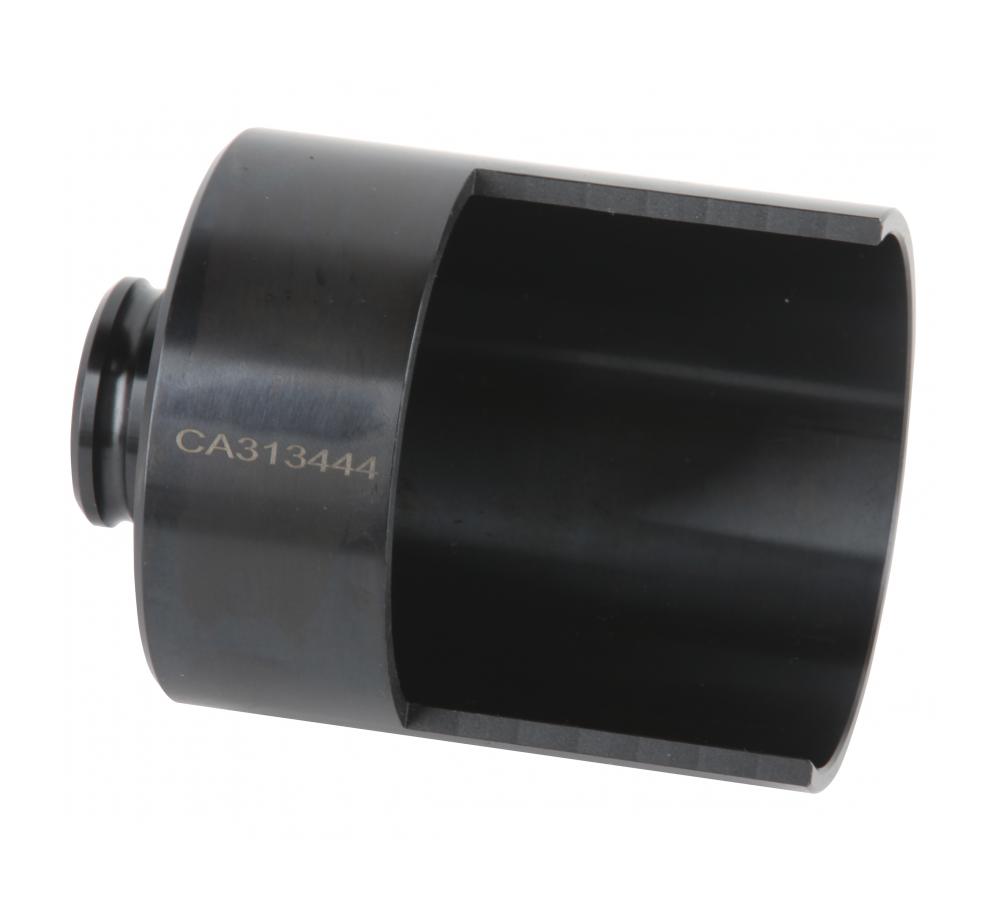

CA313444 adapter
CA222305 adapter
CA39976 adapter
CA29503 adapter
CA29505 adapter
CA555379 adapter
Blow-molded case to keep all components organized
17-page guide with YMME and part number by vehicle model
