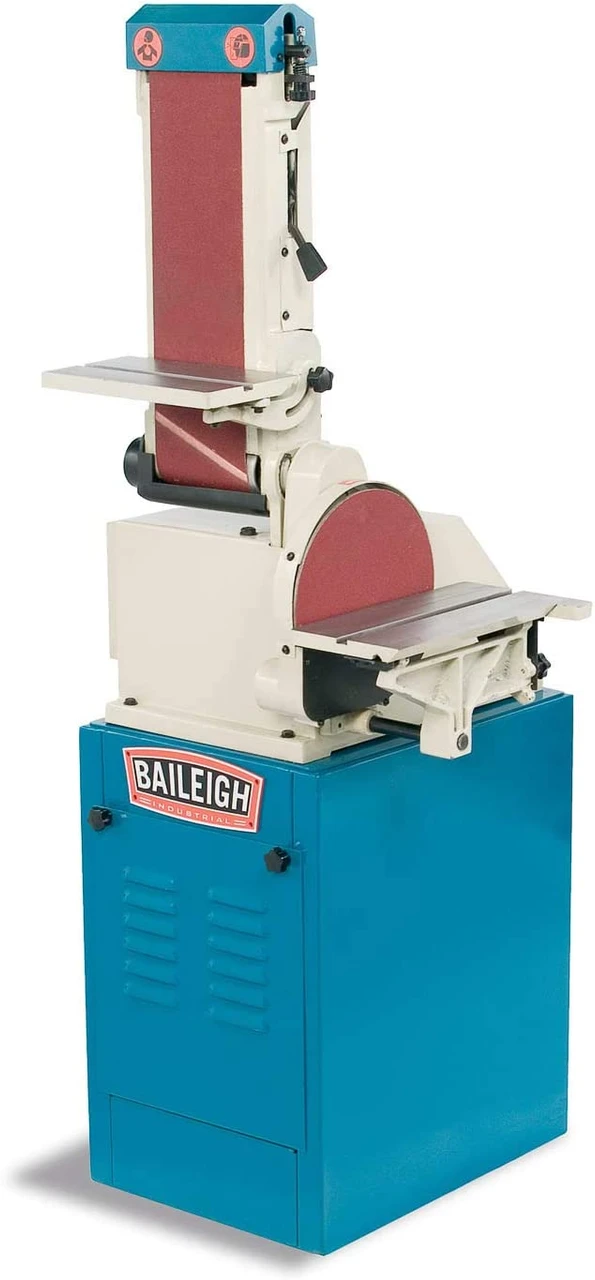

Baileigh JET 110V Combination Disk and Belt Grinder 10" Disk (1002644)

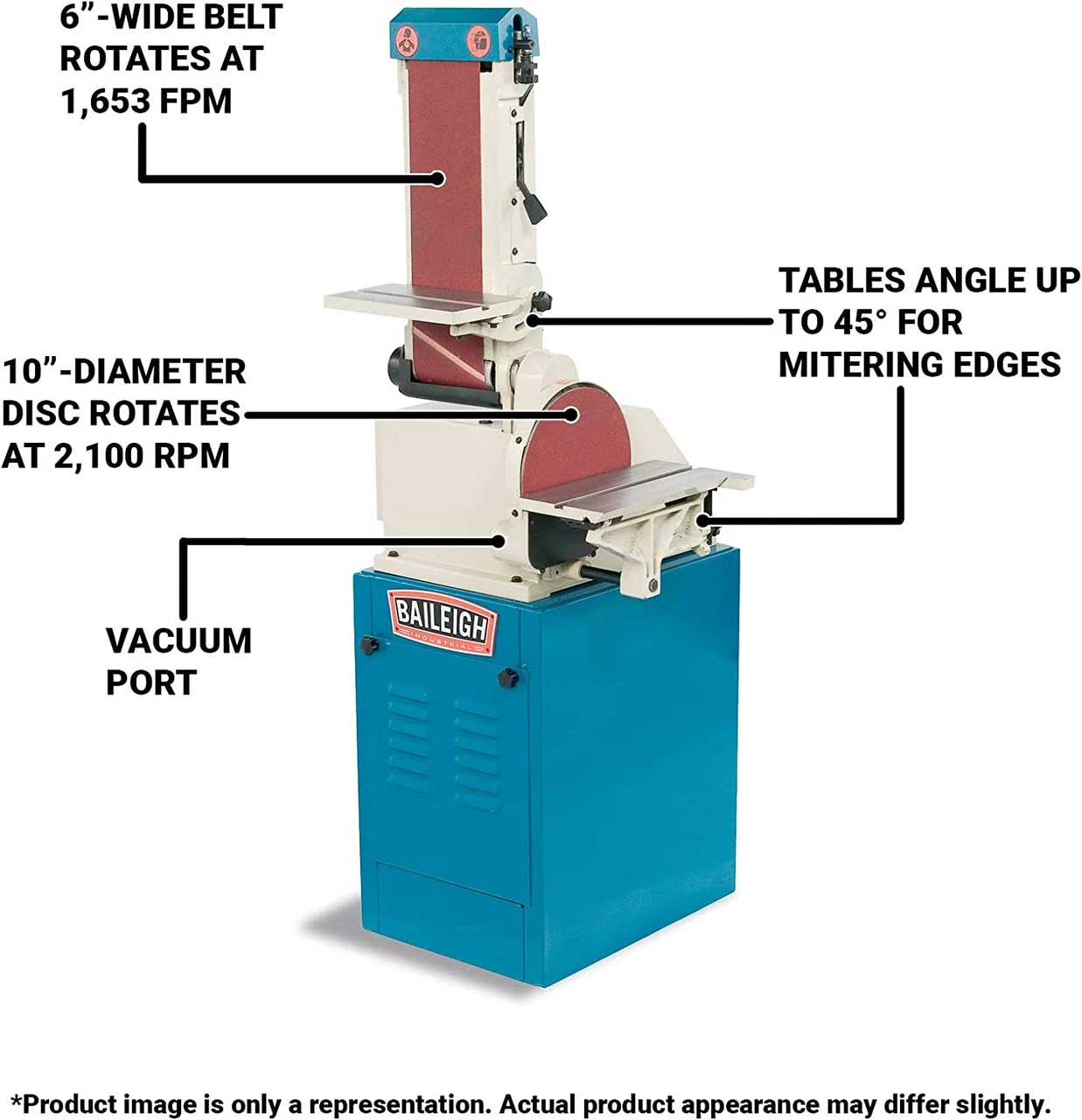

Baileigh JET 110V Combination Disk and Belt Grinder 10 Inch Disk Diameter (1002644) combines a powerful abrasive disc grinder and an abrasive belt grinder into one efficient unit. Ideal for metalworking tasks, this grinder enhances productivity and saves floor space in any fabrication shop.

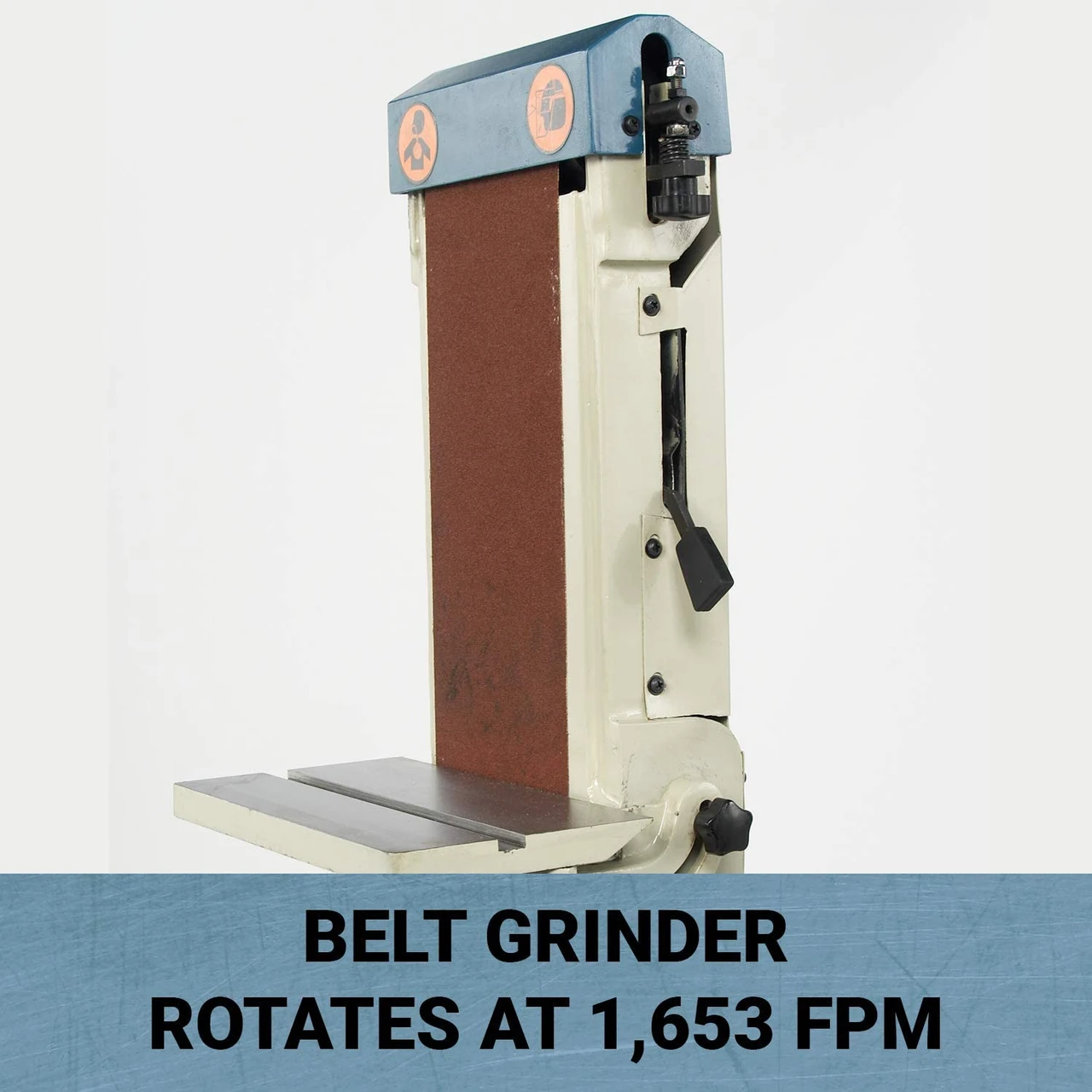

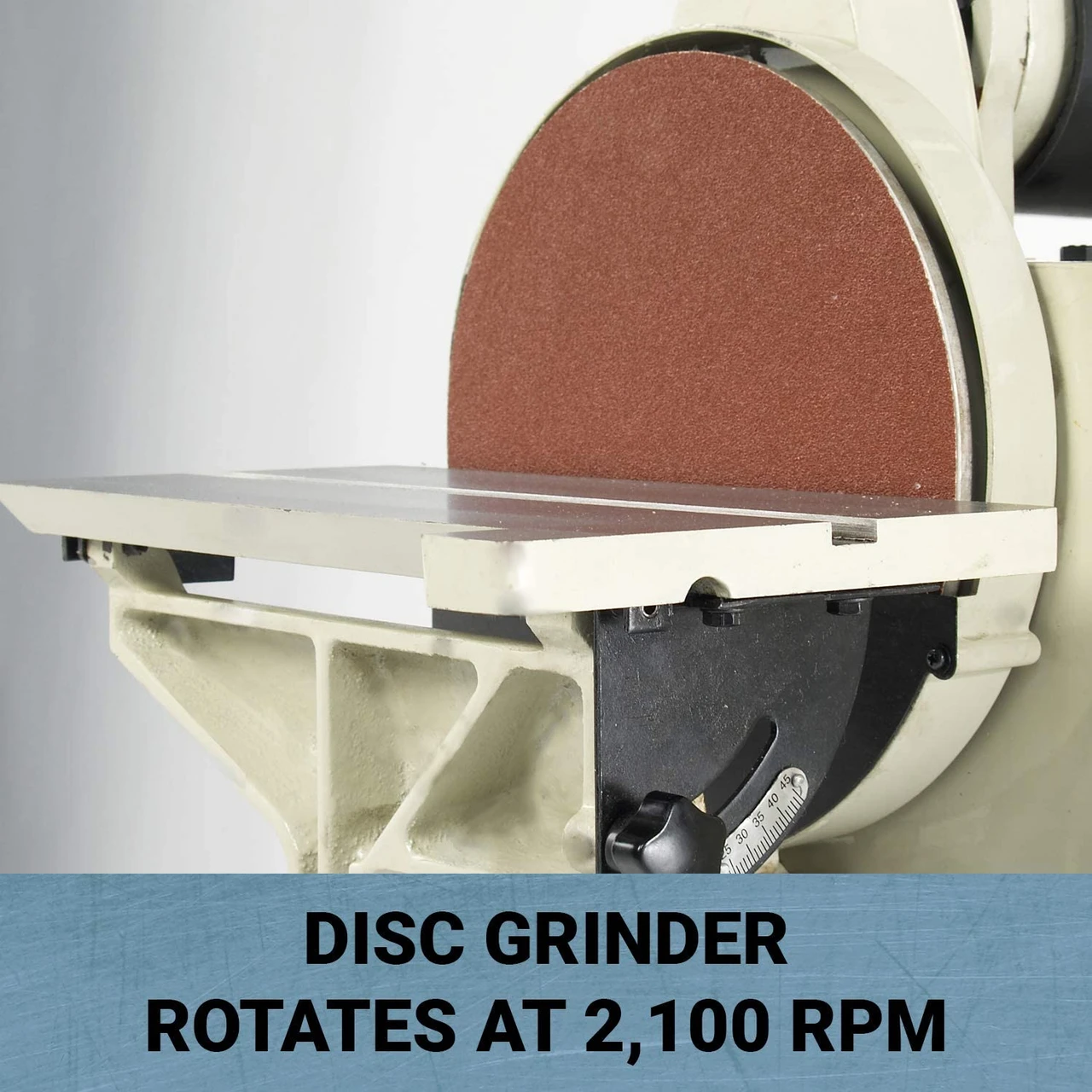

This Baileigh 1002644 combination grinder features a robust 1-1/2 hp motor that operates on 110 volts of single-phase power. It includes a belt grinder rotating at 1653 FPM and a disc grinder at 2100 RPM, ensuring versatile and precise grinding.
Specifications and Dimensions
Table Angle Adjustment: 45°
Chamfer Angle: 15°
Belt Size (L x W): 48" x 6"
Belt Speed: 1,653 FPM
Max Chamfer: 15 .177"
Disc Diameter: 9.84"
Disc Speed: 2,100 RPM
Power: 110V / 1-phase
Belt Table Dimensions: 6" x 10.5"
Disc Table Dimensions: 7.5" x 13"
Key Features and Benefits
Combines disc and belt grinding in one unit
Powerful 1-1/2 hp motor for efficient performance
Versatile applications: metal burrs, chamfering, and casting cleanup
Adjustable tables for precise mitering

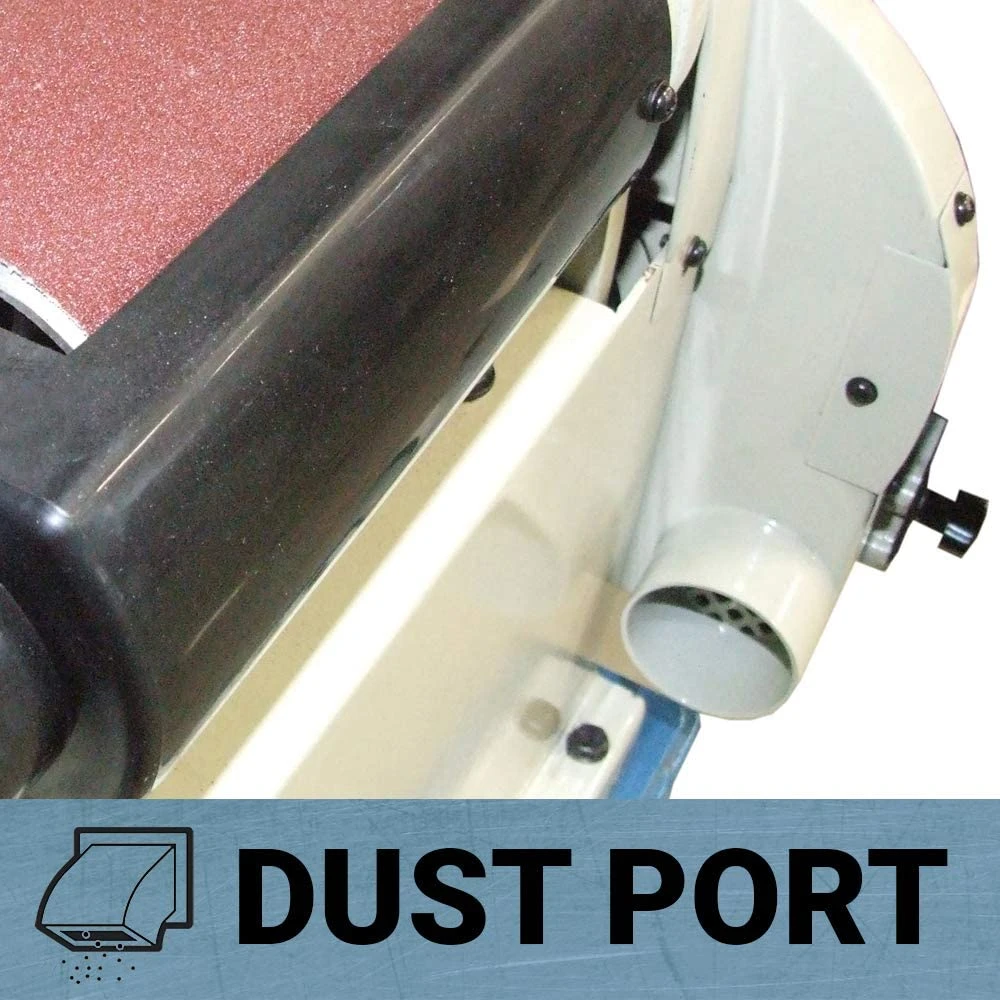

Vacuum port for dust collection compatibility
Tension control and tracking adjustments for the belt grinder
Product identification
- Brand: Baileigh
- Model / MPN: 1002644
