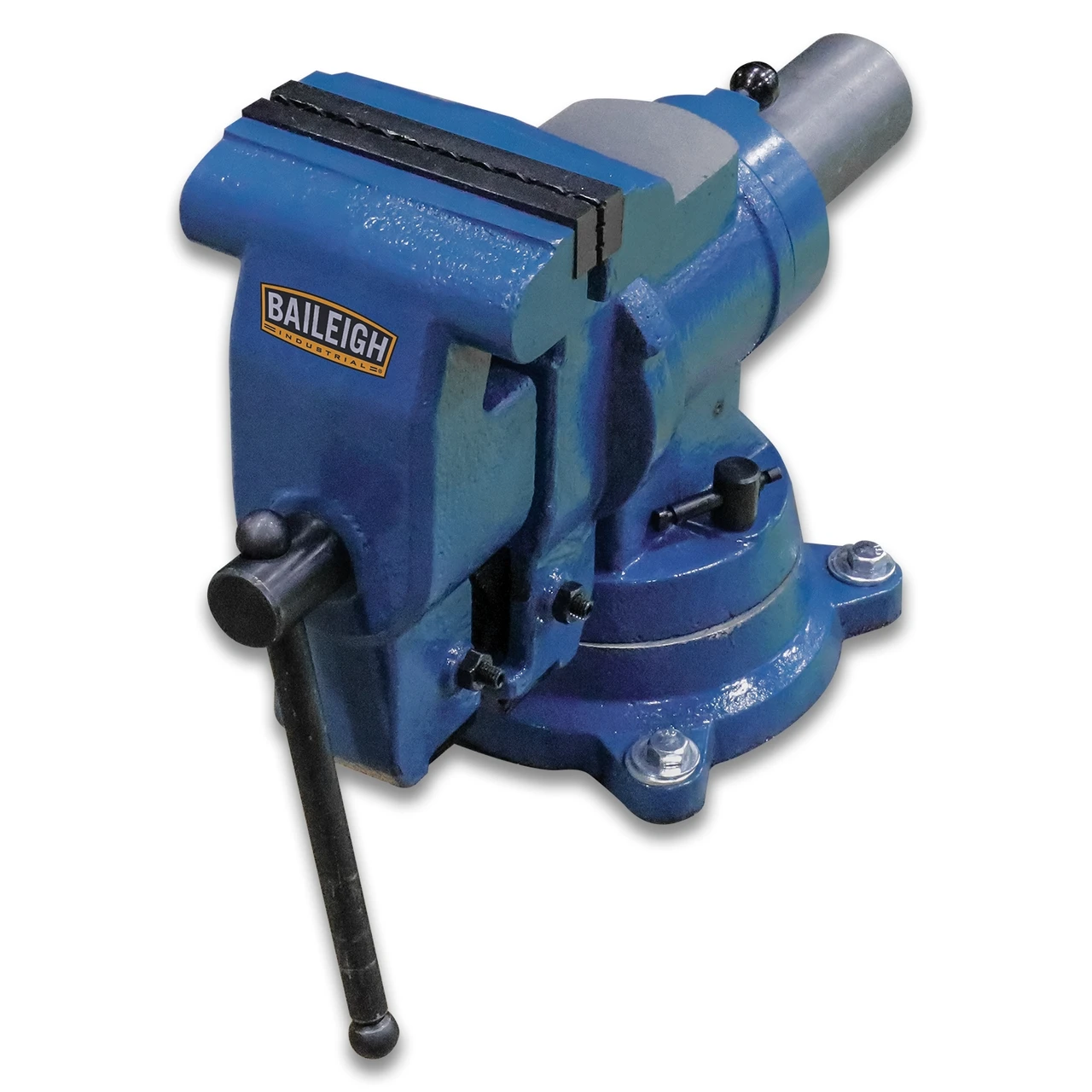

Baileigh BV-5P 1019128 Rotating Bench Vise, 5-1/8 Inch
The Baileigh BV-5P 1019128 has two positioning movements: the base swivels and the head rotates. Its parallel, pipe and V-jaws have separately listed openings, so the 5-1/8 inch jaw width is not a universal opening limit for every jaw arrangement.
Specifications and included details
- BV-5P, part 1019128, with 5-1/8 inch jaw width.
- Listed openings: 4 inches parallel, 3-1/2 inches pipe and 4-1/2 inches V-jaw.

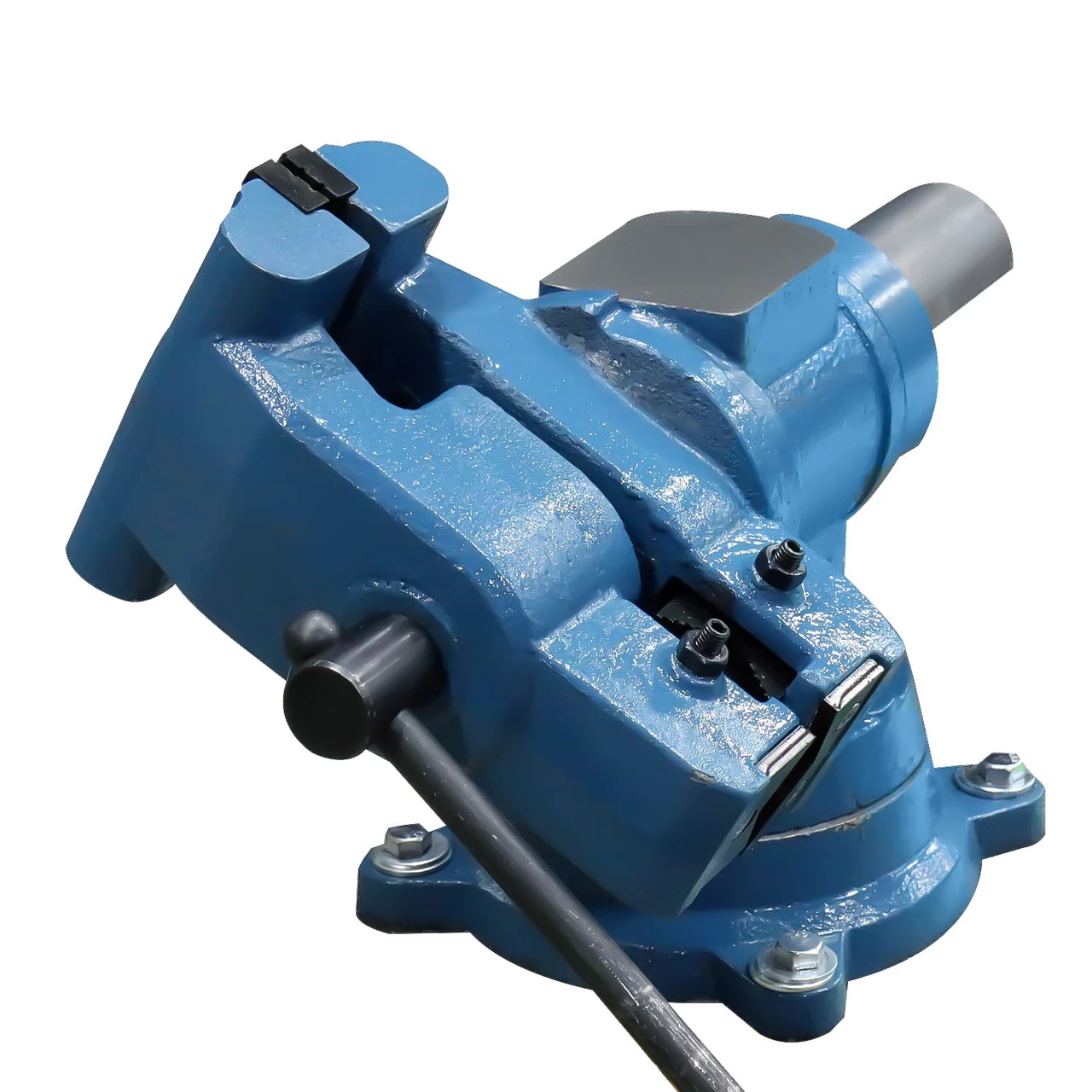

- 360-degree swiveling base and 360-degree rotating head.

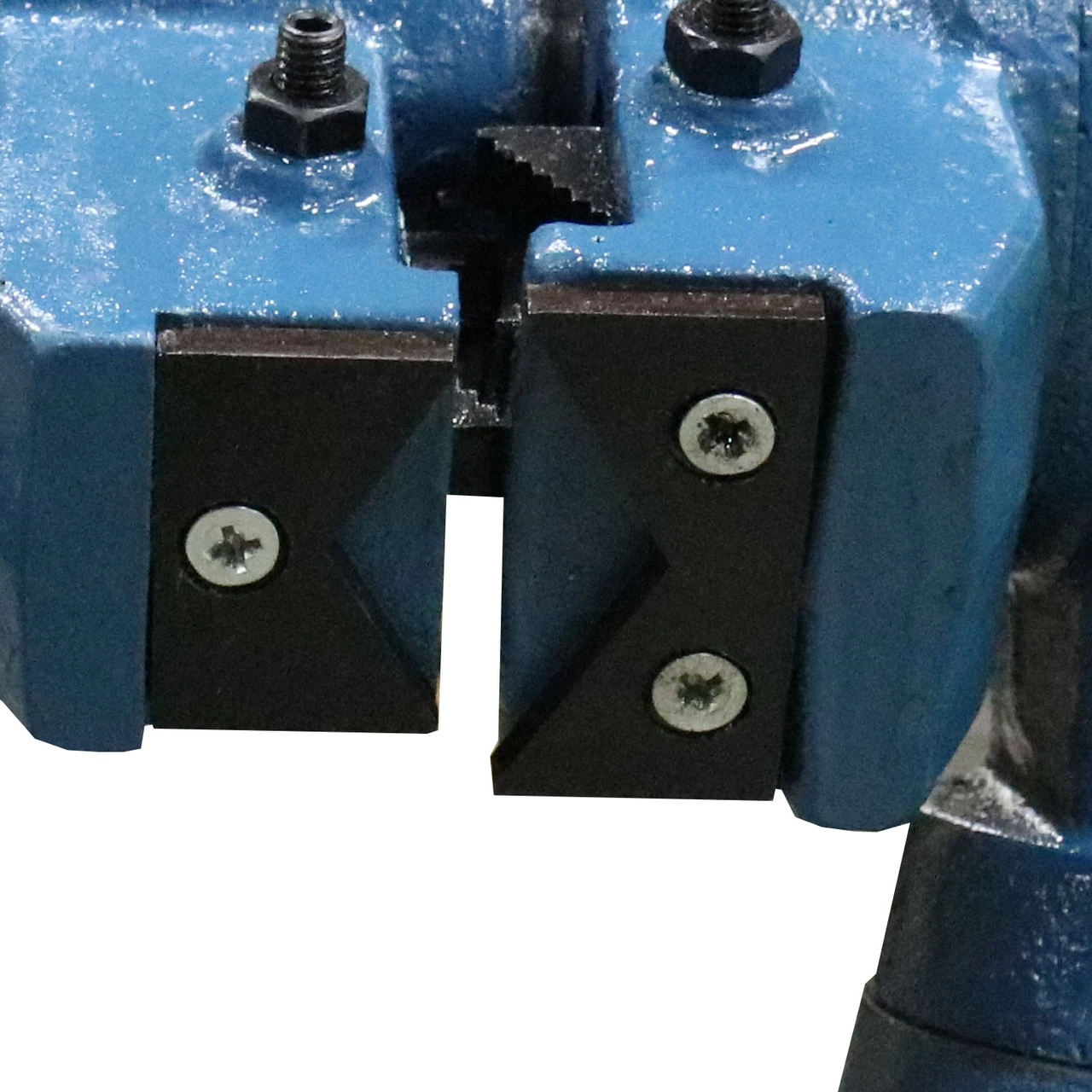

- Parallel, pipe and V-jaws are listed.
- Cast iron construction with listed net weight of 93 pounds.
Before ordering
Match the jaw arrangement and seating to the workpiece. Confirm mounting footprint, rotation clearance and bench suitability for the 93 lb vise. Listed pipe-jaw opening is not a universal pipe outside-diameter range; verify the actual grip geometry and manufacturer setup requirements.
Product questions and answers
Can every jaw arrangement open to 5-1/8 inches?
No. That is the jaw width. The listed openings are 4 inches parallel, 3-1/2 inches pipe and 4-1/2 inches V-jaw.
Are swivel base and rotating head the same movement?
No. The base changes the vise orientation on the bench; the rotating head changes the jaw orientation. Check clearance for both.
Does the pipe-jaw opening establish every suitable pipe diameter?
No. An opening measurement alone does not establish a universal diameter range or correct seating. Confirm the manufacturer's pipe-gripping limits for the workpiece.
