Baileigh 1008036 Hole Saw Tube Notcher, 3/4-2 Inch OD

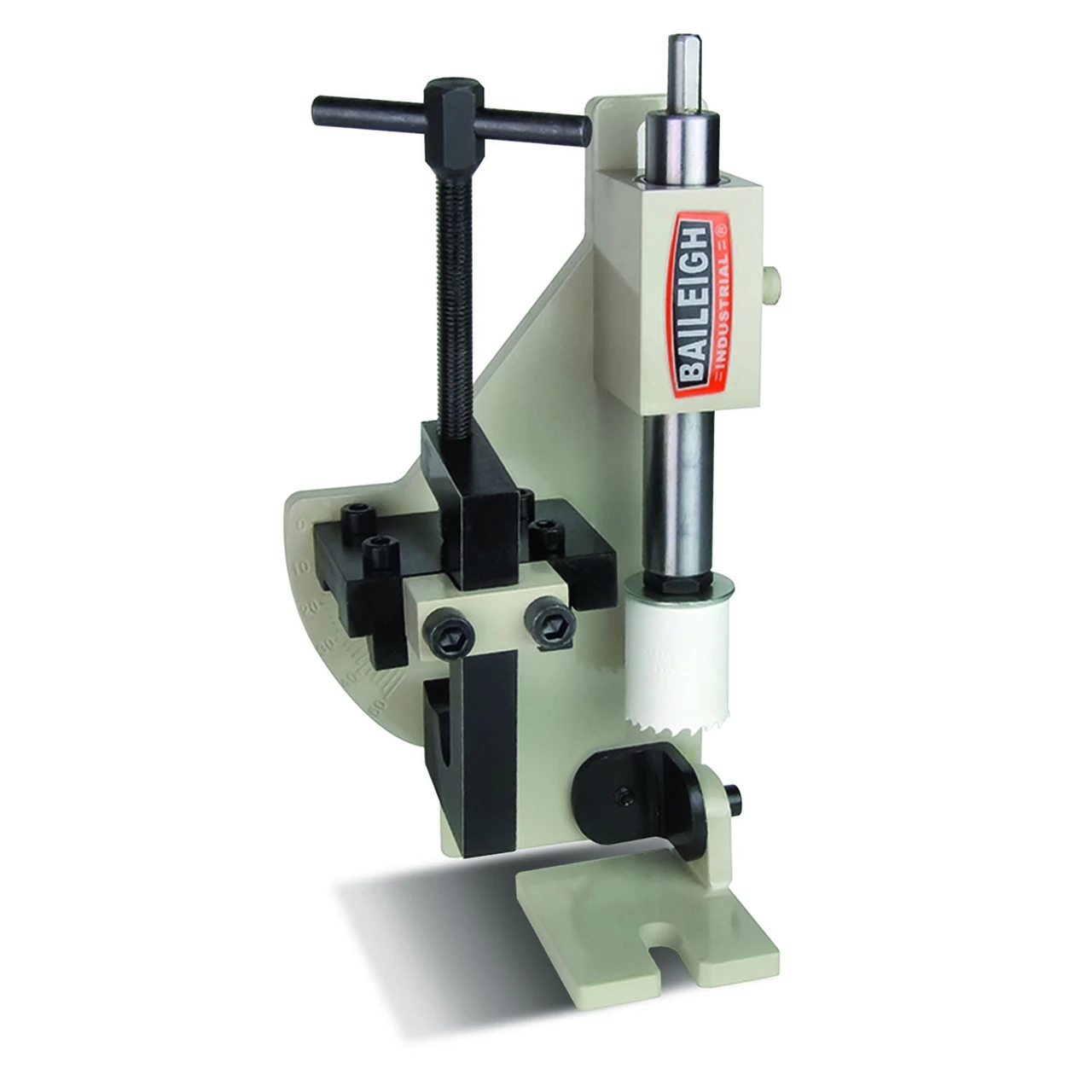

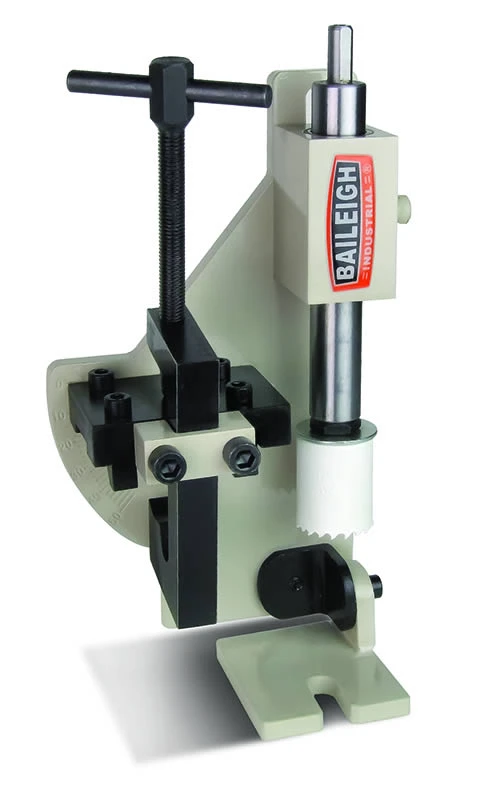

Baileigh 1008036 is a hole-saw tube-notching fixture for preparing tube joints, rather than a complete motorized drill press. It holds tubing from 3/4 to 2 inches outside diameter and offers notch angles up to 50 degrees, with mounting options for drill-press or portable-drill work.
Specifications and included details
- Tubing capacity: 3/4-2-inch outside diameter; notch angles up to 50 degrees.
- Listed mounting options include vertical drill-press mounting and horizontal bench or vise mounting with a portable drill.
- 1/2-inch plate-steel construction and 1-inch ground/polished spindle shaft.
- Listed spindle adapters: 1/2 and 5/8 inch.
- Replaceable needle bearings; listed net weight 10 lb.
Before ordering
Use tube outside diameter rather than nominal pipe designation to compare capacity. Confirm mounting clearance, drill connection and a suitable hole saw for the intended mating tube. A drill, vise or specific hole saw is not itemized as included, and this fixture does not itself weld the joint.
Product questions and answers
Is 1008036 a standalone powered drill press?
No. It is a tube-notching fixture used with a drill press or a portable-drill mounting setup.
Does 3/4-2 inches mean tube inside diameter?
No. The listed tubing capacity is outside diameter, abbreviated OD. Compare the actual outside measurement.
Are the drill and hole saw included?
The supplied details list 1/2- and 5/8-inch spindle adapters but do not itemize a drill or hole saw. Verify those components and their connections for your setup.
