AutoMeter rc 300 battery tester details

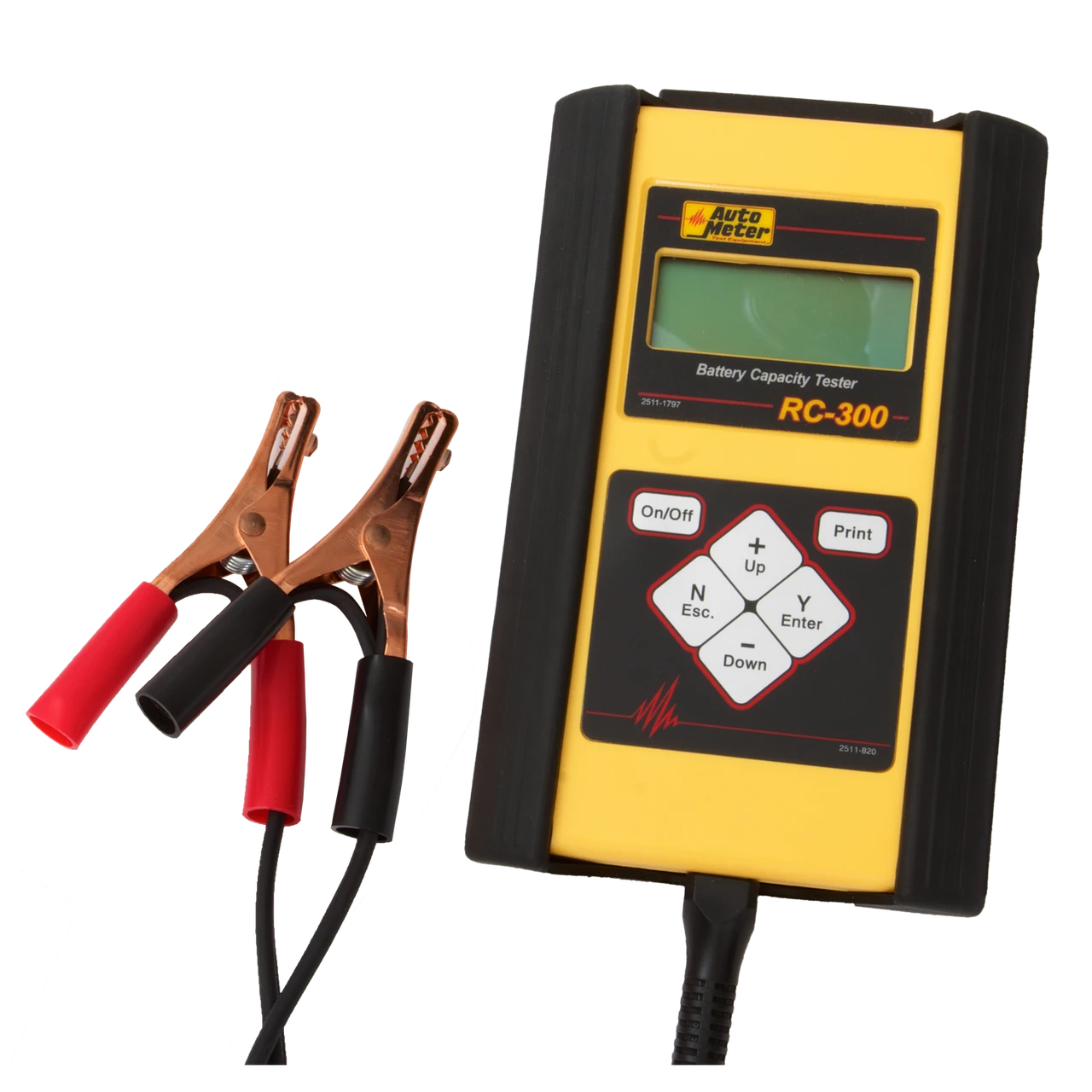

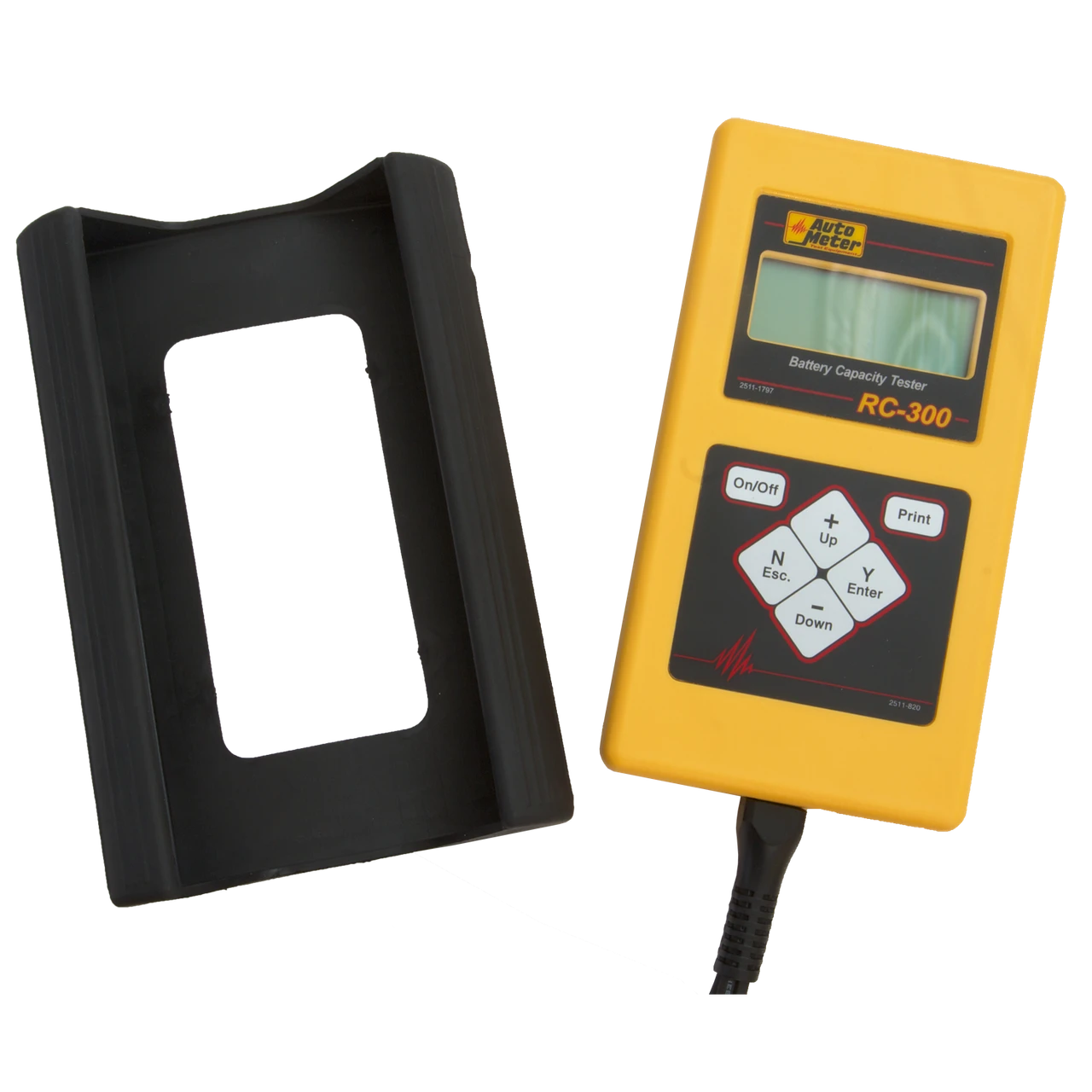

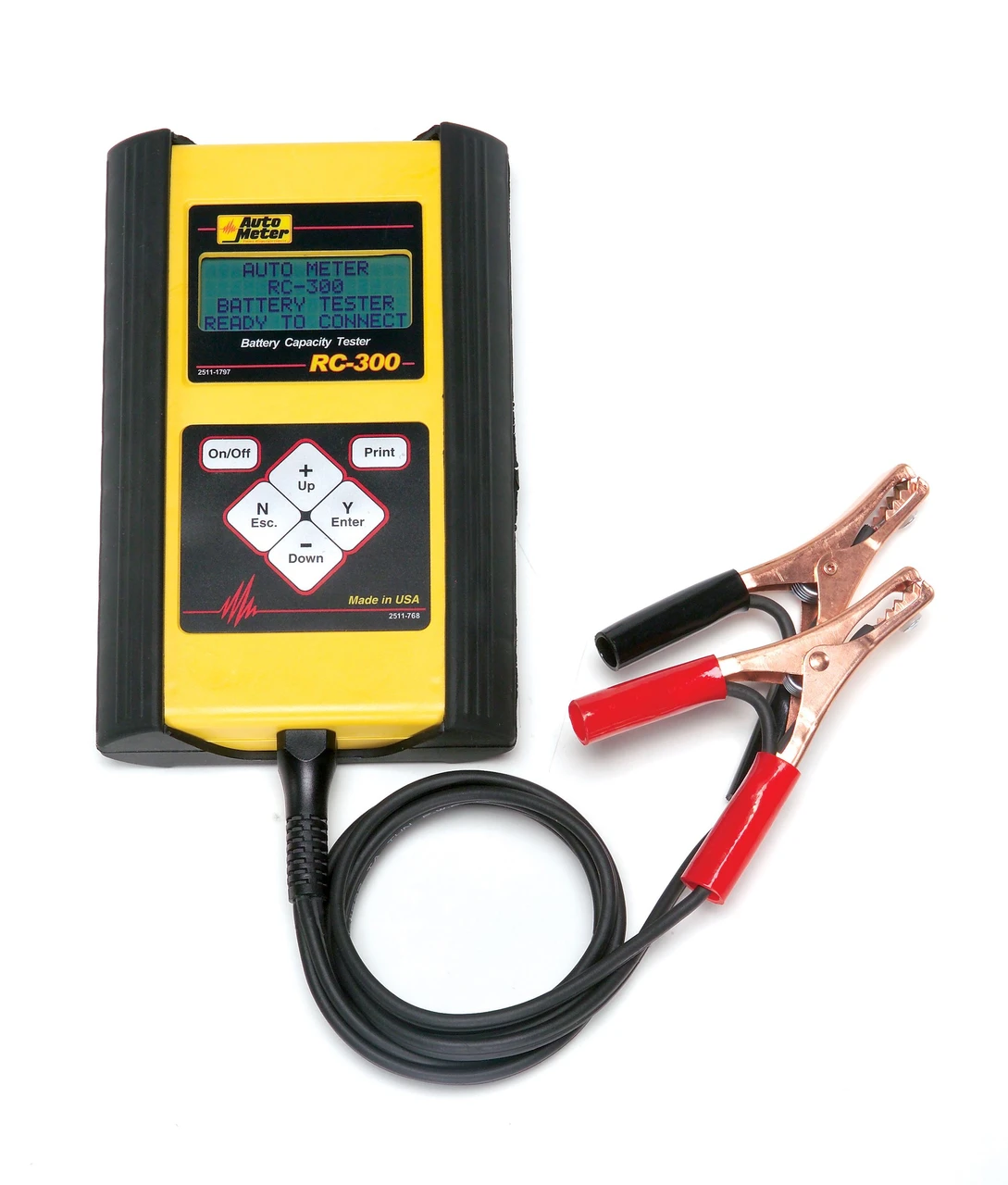

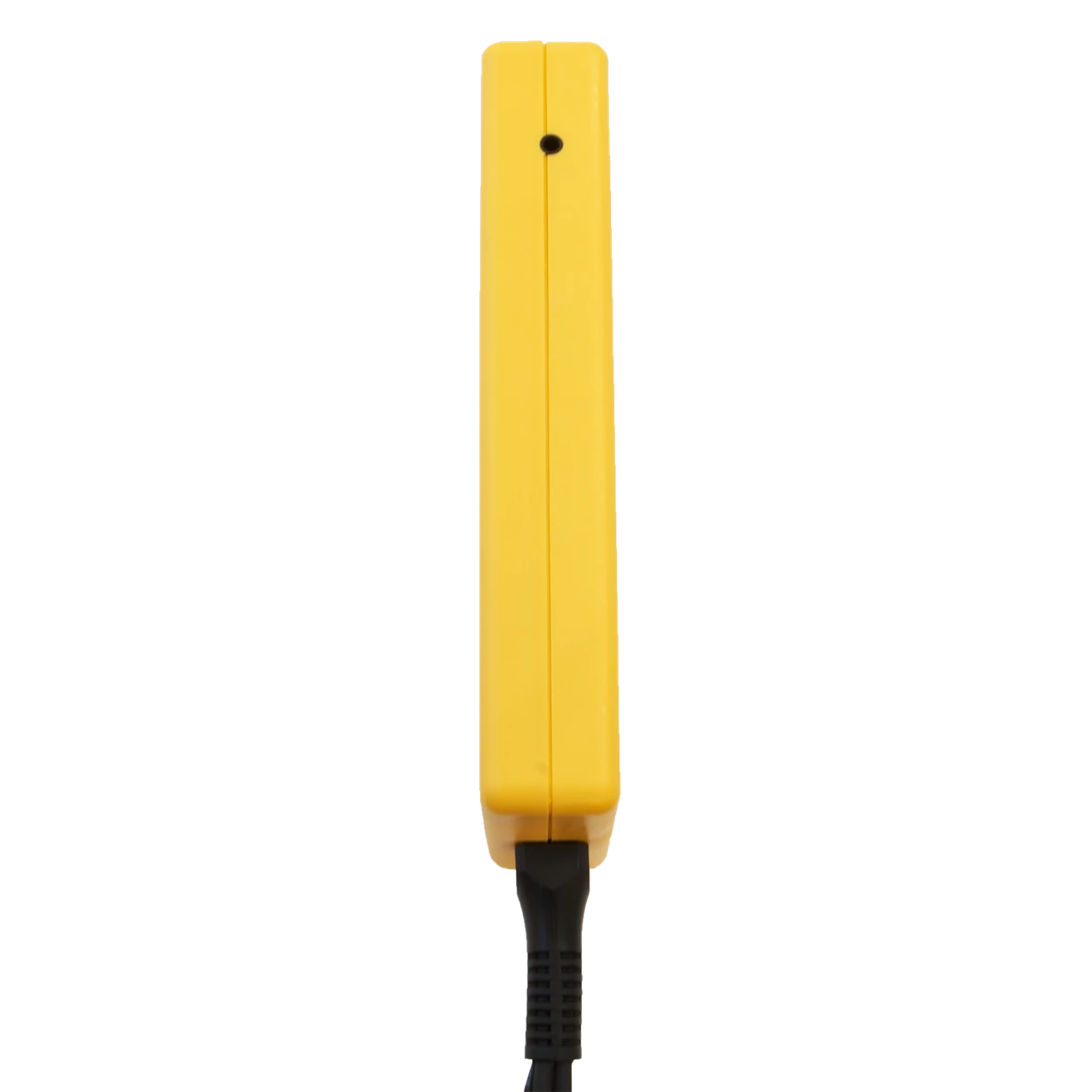

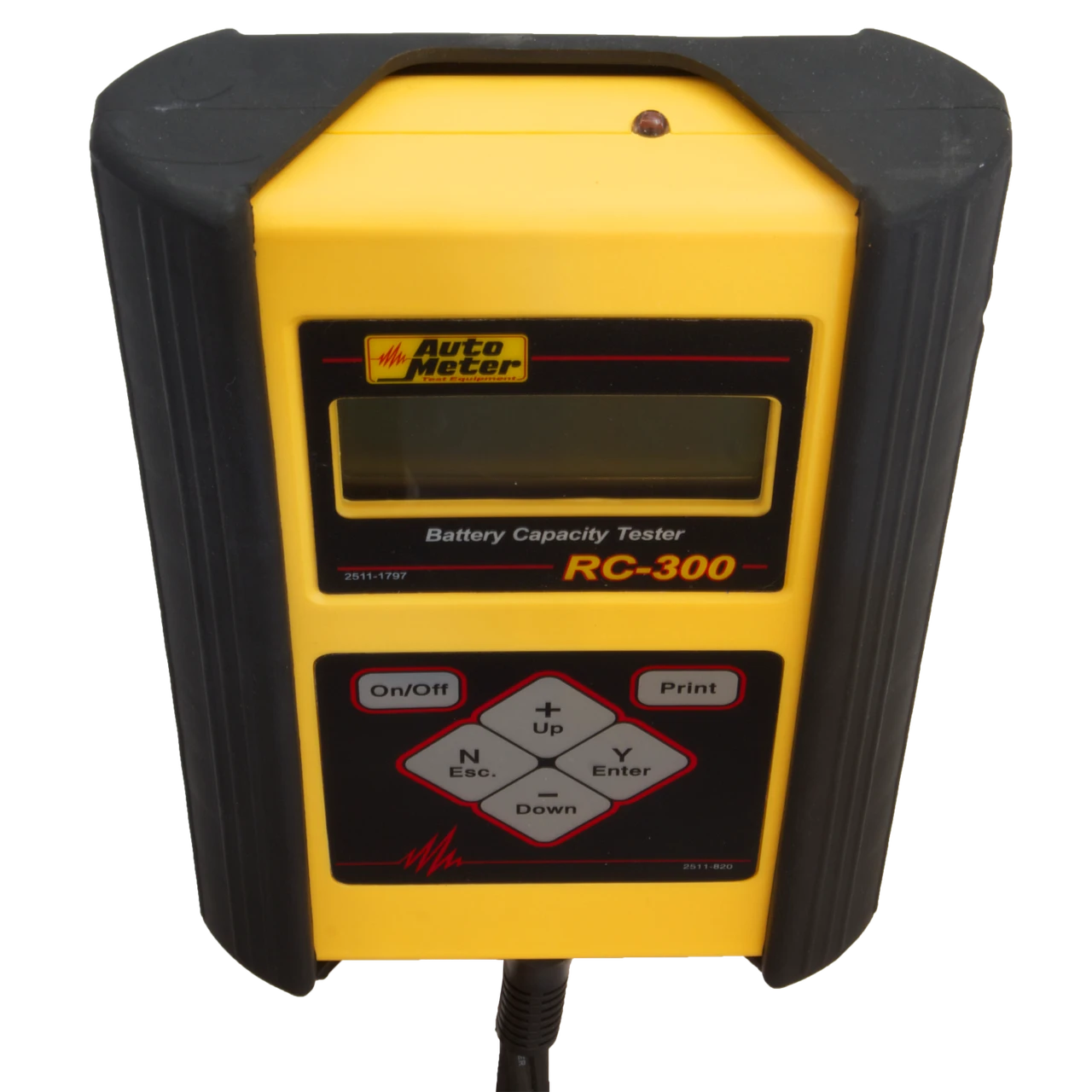

AutoMeter Technician Grade Handheld Battery Tester for 6V & 12V Applications (RC-300)
AutoMeter Technician Grade Intelligent Handheld SLA and Standby Battery Tester (RC-300) offers fast, accurate testing for 6V and 12V applications. Featuring AutoMeter's award-winning Digital Pulse Load technology, this tester simulates real-world conditions by applying a true 40-amp load during testing, providing reliable and professional results every time.
It can test multiple battery types, including SLA, Flooded, Gel Cell, and AGM batteries, as well as store up to 50 previous test results in memory for future reference. Customize your testing with the blueprinting feature, allowing you to store up to 40 different battery types for precise, repeatable results.
Specifications and Dimensions
Tests 6V and 12V batteries rated between 4AH – 50AH
True 40-amp load applied during testing
30" – 16 gauge leads for easy connection
Stores the last 50 test results in memory
Supports multiple battery types: SLA, Flooded, Gel Cell, AGM
Built-in memory for custom battery settings and blueprints
Key Features and Benefits
Tests discharged batteries and detects bad cells
Impact-resistant housing with rubber grip for durability
Optional customer communication via external or bolt-on printers
Customizable pass/fail settings based on user requirements
Product identification
- Brand: AutoMeter
- Model / MPN: RC-300
