Autel AUTBE100 Tire Tread and Brake Disc Wear Examiner TBE100
The MaxiTPMS TBE100 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data in real-time. TBE100 can provide detailed replacement & maintenance suggestions for quick tire service, document tire wear and damage, and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.
Laser measurement with 0.1mm accuracy

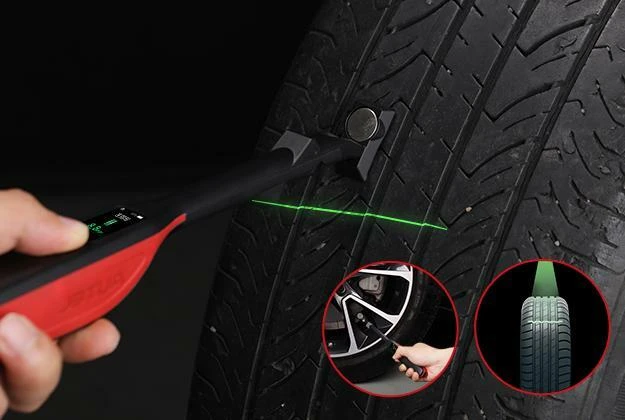

No need to remove the wheel during measurement

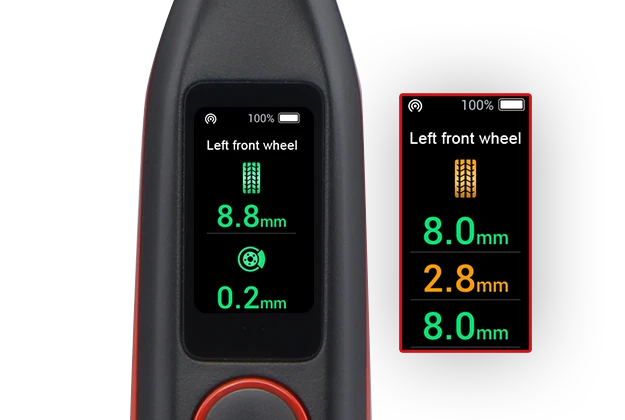

Real-time measurement data on touchscreen
Full tread measurement
Quick Check both tire tread & brake disc
Uneven wear analysis
Replacement & maintenance suggestions
Recommended Use: Indoor
Processor: 4x ARM Cortex-A35 (1.5 GHz)
Memory: 1GB RAM LPDDR3 & 4GB ROM
Display: 1.65" AMOLED super retina touchscreen with 120×240 resolution
Connectivity: Wi-Fi – USB 2.0, Type C
Camera: CMOS WXGA, 1 megapixel macro, 30fps
Audio output: Output: Beep
Power and Battery: 3.8 V/3000 mAh lithium-ion battery – Charges via 5 V AC/DC power supply
Battery Charging Input: 5 V/1.5 A
Power Consumption: 200 mA (AMOLED on with default brightness) @3.7 V
Operating Temp.: -10 to 45°C(14 to 113°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D): 283 mm (11.1”) x 38.9 mm (1.53”) x 33.5 mm (1.32”)
Net Weight: 138 g (0.31 lb.)
Product identification
- Brand: Autel
- Model / MPN: AUTBE100
