Astro Pneumatic XL Blind Rivet Adapter Kit 1/4 Inch Capacity (ADR14)

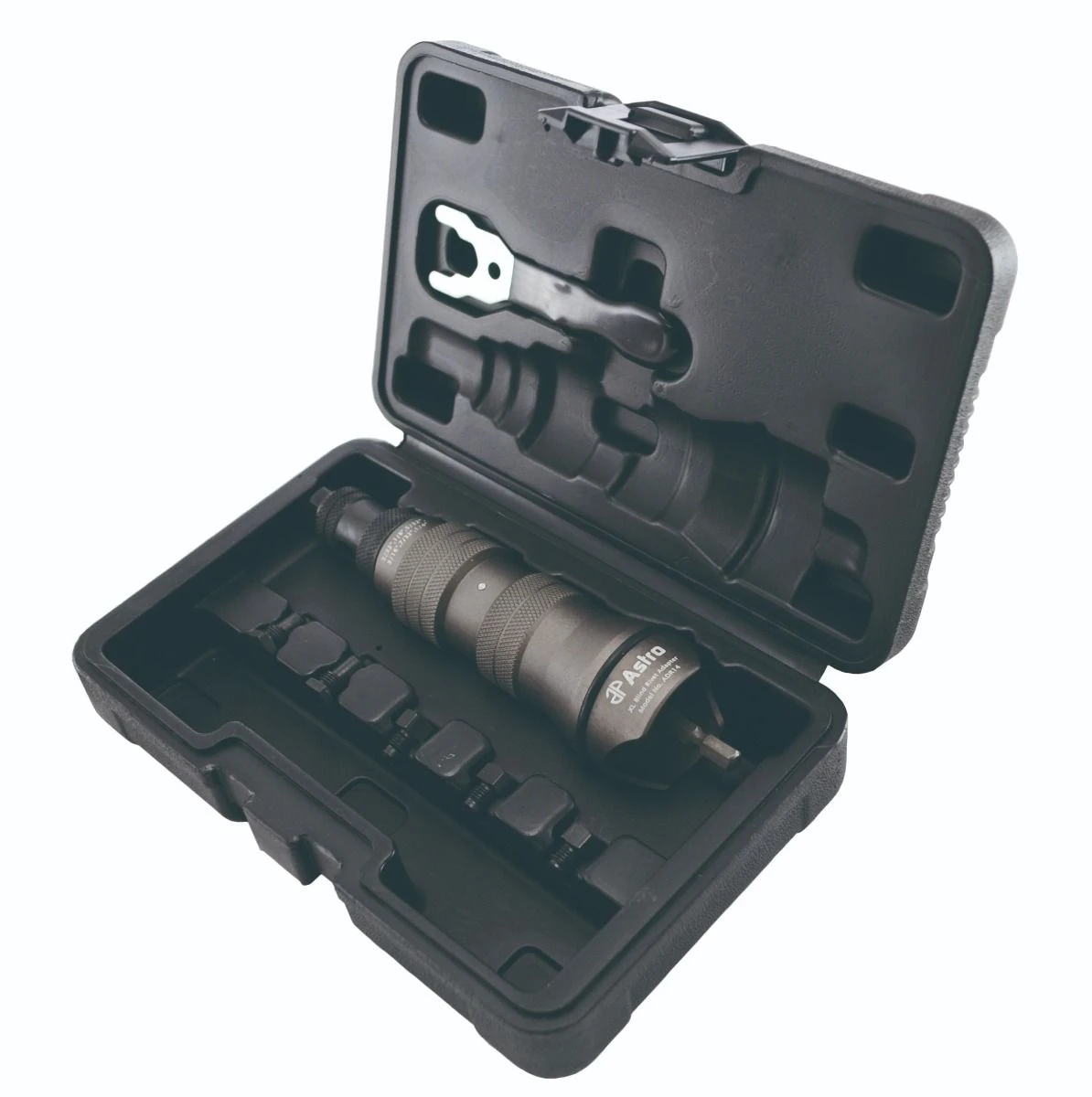

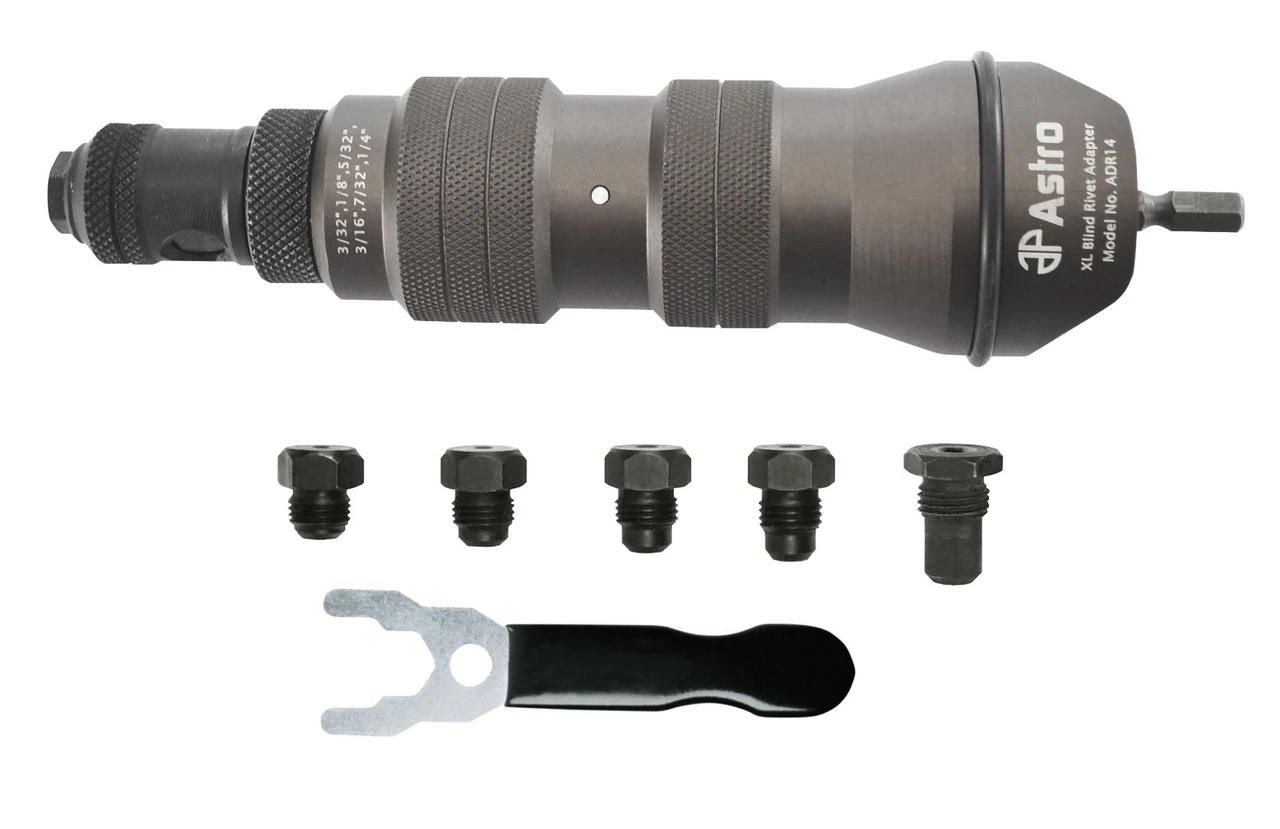

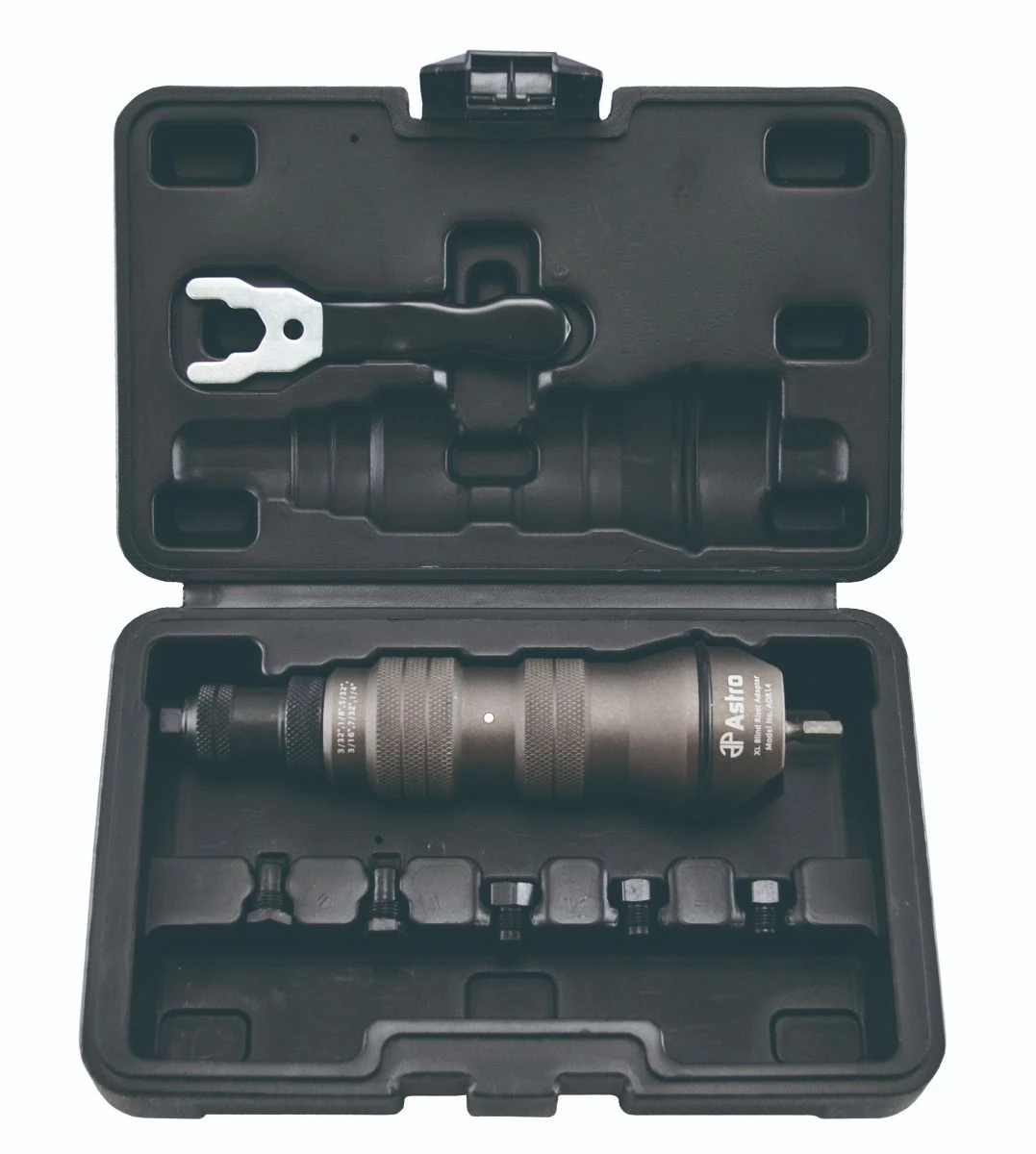

Astro Pneumatic XL Blind Rivet Adapter Kit 1/4 Inch Capacity for Cordless Pneumatic Drill (ADR14) allows you to easily convert your cordless, pneumatic, or corded drill into a powerful pop riveter. This kit includes nose pieces for 3/32", 1/8", 5/32", 3/16", 7/32", and 1/4" rivets, suitable for steel, aluminum, copper, and stainless steel materials.
CNC machined from solid billet aluminum and featuring Japanese bearings, this ADR14 blind rivet adapter kit ensures durability and precision. It works on rivet bodies up to 0.65" with a maximum stroke of 0.7".
Specifications and Dimensions
Material: CNC machined billet aluminum
Bearings: Japanese
Rivet Sizes: 3/32", 1/8", 5/32", 3/16", 7/32", 1/4"
Maximum Stroke: 0.7"
Rivet Body Capacity: Up to 0.65"
Chuck Capacity: Hex 6.35 mm (1/4") shank
Requirements for Cordless Driving Tool:
Adjustable torque setting
Min. 12V for aluminum and steel rivets up to 3/16"
Min. 14.4V for stainless steel rivets up to 3/16" and thru 1/4" in aluminum
Min. 16V+ for 7/32" in steel and stainless and 1/4" in steel
(1/4" stainless mandrel and body is not recommended and may overheat the tool)
Requirements for Electric or Pneumatic Driving Tool:
Chuck capacity of hex 6.35 mm (1/4") shank
Maximum torque > 190 in/lbs for aluminum and steel rivets up to 3/16" and 7/32" + 1/4" in aluminum
Maximum torque > 330 in/lbs for stainless steel rivets up to 3/16" and 7/32" + 1/4" in steel
Key Features and Benefits
Easily converts drills into power pop riveters
Includes nose pieces for multiple rivet sizes
Suitable for steel, aluminum, copper, and stainless steel
Durable construction with CNC machined billet aluminum
Features Japanese bearings for precision
Works on rivet bodies up to 0.65" with a maximum stroke of 0.7"
Ideal for both professional and DIY use
Product identification
- Brand: Astro Pneumatic
- Model / MPN: ADR14
