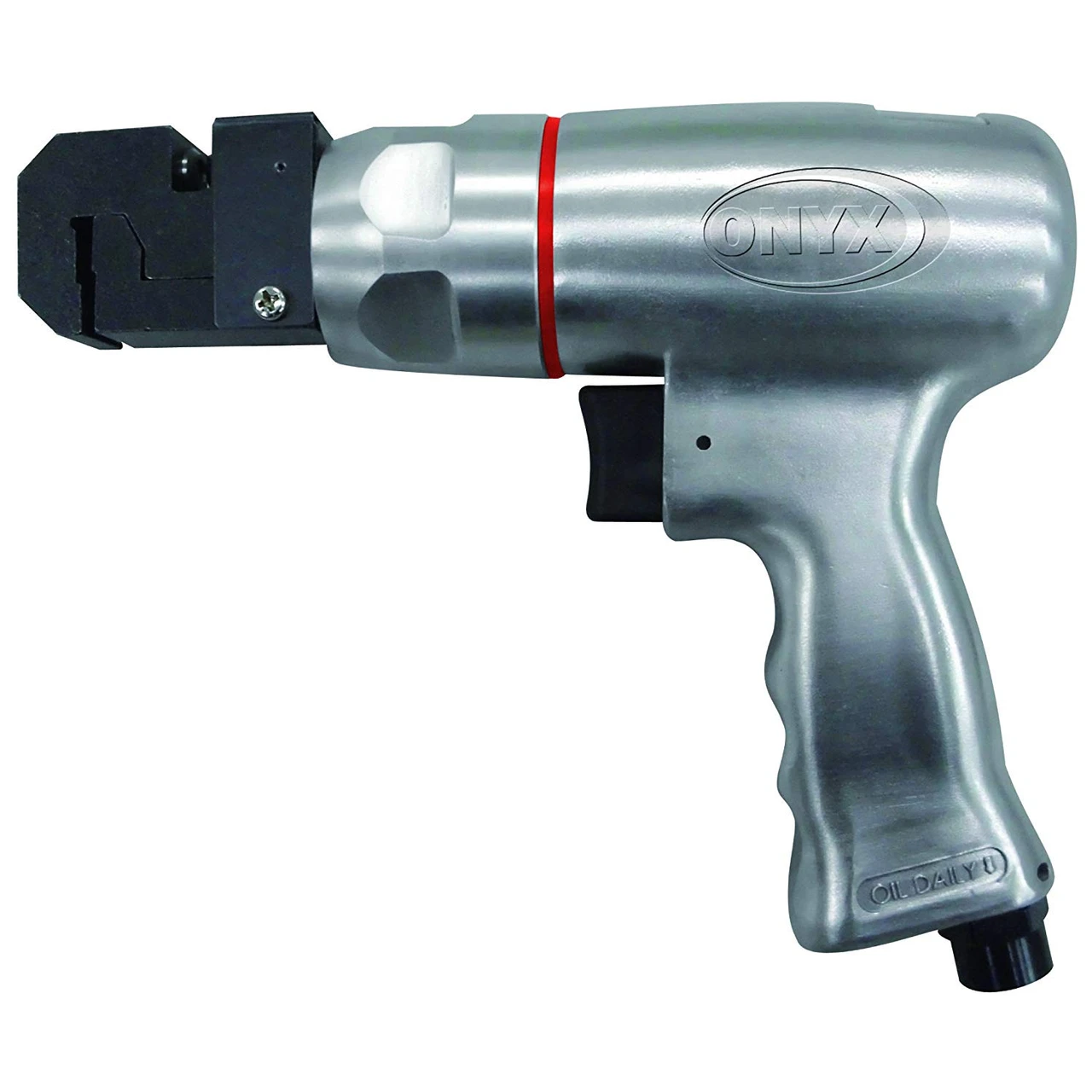

Astro Pneumatic Pistol Grip Punch Flange Tool 5.5mm Punch Capacity (605PT)
Astro Pneumatic Pistol Grip Punch Flange Tool 5.5mm Punch Capacity (605PT) is designed for efficient hole punching and panel crimping. This versatile tool features a rotating head for convenient use, ensuring precision control with every pull of the lever.
The Astro Pneumatic 605PT pistol grip punch tool forms an offset crimped edge on sheet metals, enabling no-bump lap welds. This reduces metal fabrication time significantly. The tool is designed with a replaceable punch for easy maintenance and provides a powerful performance, handling both flat and curved surfaces with ease.
Specifications and Dimensions
Punch Diameter: 5.5mm (7/32")
Punch Capacity: 1.6mm (1/16")
Crimping Capacity: 1.6mm (1/16")
Piston Stroke: 5/32" (4mm)
Overall Length: 7.87" (200mm)
Net Weight: 2.47lbs. (1.12kg)
Air Inlet Thread NPT: 1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption: 4cfm
Air Pressure: 90-120psi (6.21-8.28 Bar)
Key Features and Benefits
Punch designed for easy replacement
Performs hole punching and panel crimping
Rotating head for convenient use
Precision control with every lever pull
Forms an offset crimped edge on sheet metals
Lightweight and durable construction
Reduces metal fabrication time in half
Product identification
- Brand: Astro Pneumatic
- Model / MPN: 605PT
