Astro Pneumatic spray gun details

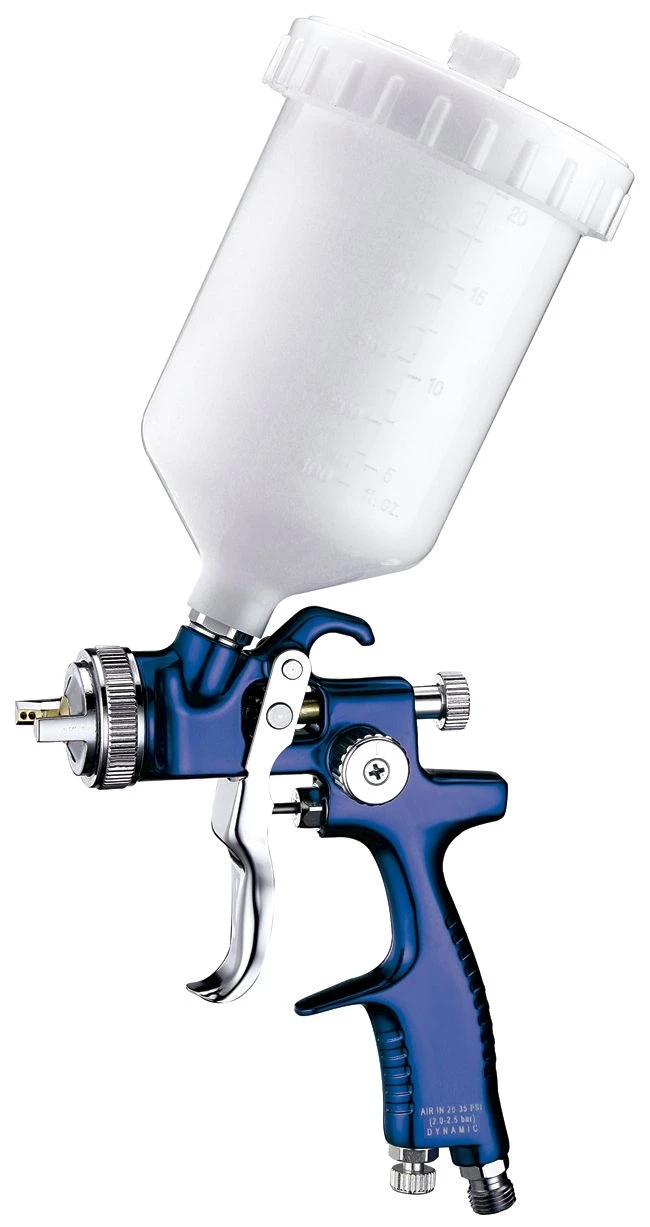

Astro Pneumatic High Efficiency Transfer Spray Gun 1.9mm Nozzle (EUROHE109)
The innovative CNC machining and quick thread technology make this EuroPro high efficiency spray gun easy to use and maintain. With features like a soft trigger pull and precise adjustment knobs, it ensures smooth operation and reduces user fatigue.
Specifications and Dimensions
Nozzle Size: 1.9mm
Cup Capacity: 600ml
Operation Pressure: 29psi
Weight: 0.7lbs. (325g)
Gun Dimensions W x H: 7" x 5-34" (175mm x 145mm)
Air Consumption: 10.5 – 12.5cfm
Air Inlet Thread NPT: ¼”
Required Compressor: 3 – 5hp
Pattern at 6" to 8" Distance: 11" – 13" (280-330mm)
Air Hose I.D. Size: 6 – 8mm
Compatible Adapters:
3M Adapter: 9, 16016
Norton Paint System Adapter: 21664 9A
DeVilBiss DeKups: DPC-10
SATA’s Adapter #13 Part #150136
Key Features and Benefits
Forged body for longer tool life
Anodized body for corrosion protection
Slick finish for faster and easier cleaning
Internal coated passages for durability
Stainless steel needle and fluid tip
High transfer efficiency with low overspray
Superior atomization for a smooth finish
Quick thread technology for easy maintenance
Soft trigger pull to reduce fatigue
Precise lubricated adjustment knobs for better control
Product identification
- Brand: Astro Pneumatic
- Model / MPN: EUROHE109
