Astro Pneumatic Heavy-Duty Grade 9 Master Fwd Bearing Adapter W/ Thrust Bearing (78825HD)

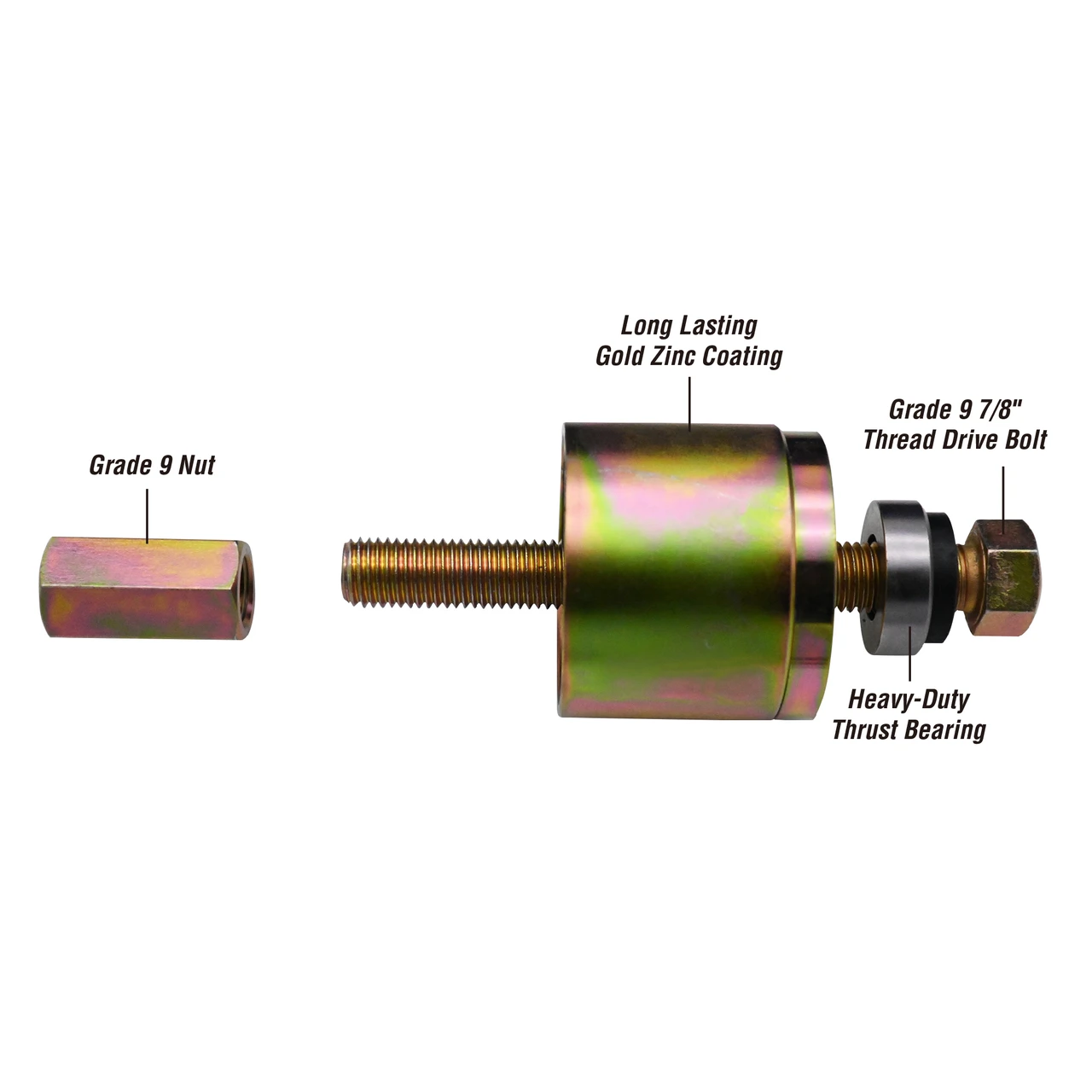

• All new HD set includes forged cups and adapters and instead of traditional washers, a 7/8″ HD thrust bearing originally designed for use on 18-wheelers
• Thrust bearing cuts down on friction and makes your impact wrench work dramatically more effectively
• Zinc-chromate plated for a longer lasting finish
• Replace wheel bearings without the need for alignment after by keeping the strut assembly and steering knuckle in place during service

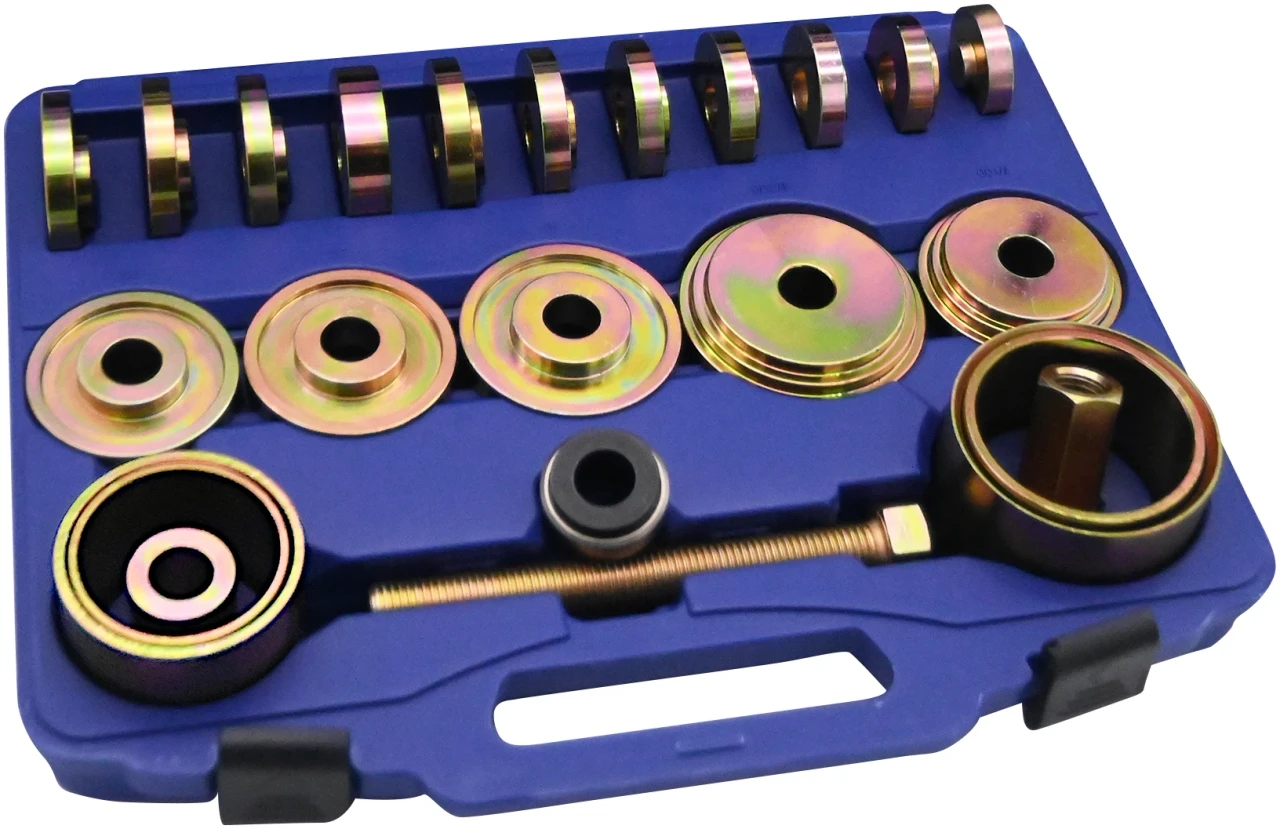

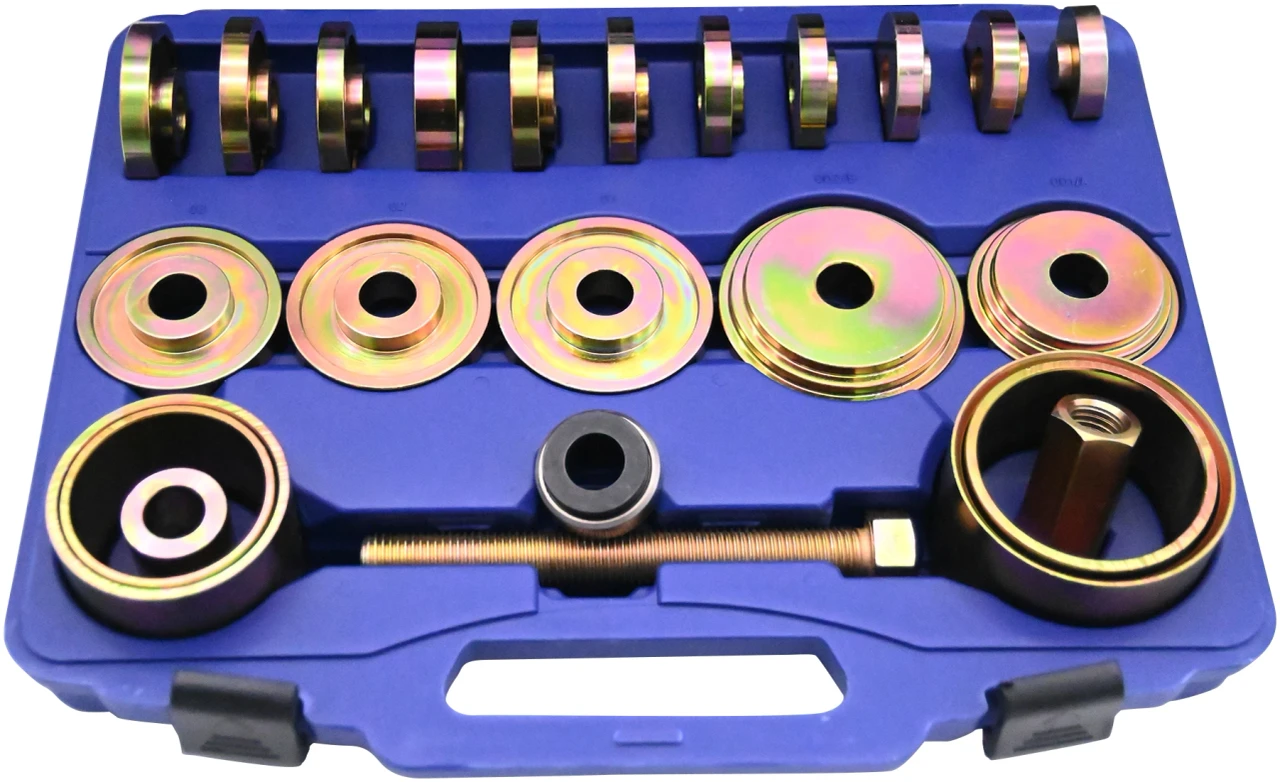

• Master set for a wide range of applications, spray lubricate bearing and grease bolt before use
Bushing Range(Outside Diameter):
Sleeve Sizes: 2.18", 2.5", 2.62", 2.78", 2.82", 2.88",
2.9", 2.96", 3.05", 3.21", 3.28", 3.48"
Sleeve Plate Sizes: 3"O.D. × 2.5" Long
3.25" O.D. × 2.53" Long
3.63" O.D. × 2.53" Long
4" O.D. × 2.53" Long
3.25"O.D. × 2.72" Step
4" O.D. × 3.2" Step
Bearing size Size: 7/8" I.D.
Sliding Screw Size/Type: GR9 7.5" Long × 0.875" D x 1.25" Hex
Nut Size: Grade 9 3" Long × 0.875" ID x 1.25" Hex
Product identification
- Brand: Astro Pneumatic
- Model / MPN: 78825HD
