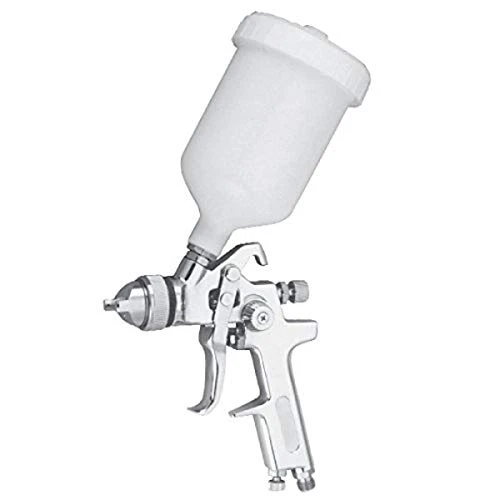

Astro Pneumatic Gravity Feed Spray Gun with 2mm Nozzle (GF20S)
Astro Pneumatic Gravity Feed Spray Gun with 2mm Nozzle General Purpose Air Cap (GF20S) is designed for professional use, offering precise control and efficient performance. The gravity feed action allows fluid to flow downward, using less air and providing better control over atomization and fluid output.
This GF20S gravity feed spray gun is versatile, handling a range of viscosities from fine surface finishes to heavy body coatings. It features a forged aluminum gun body and air cap for durability and long-lasting performance.
Specifications and Dimensions
Nozzle Size: 2.0 mm
Operation Pressure: 30-70 psi
Net Weight: 2-1/2 lbs. (1.1 kg)
Dimensions (W x H): 6" x 13-1/2"
Average Air Consumption: 6-12 cfm
Air Inlet Thread NPT: 1/4"
Required Compressor: 3 hp
Max. Pattern at 8" Distance: 8-1/4" (210 mm)
Key Features and Benefits
Gravity feed action for efficient fluid flow and control
General purpose air cap for spraying enamels, lacquers, metallics, and urethane
Handles various viscosities from fine finishes to heavy coatings
Forged aluminum gun body and air cap for durability
One-pint nylon cup with "drip check" device to prevent spillage
Product identification
- Brand: Astro Pneumatic
- Model / MPN: GF20S
