Astro Pneumatic spray gun details

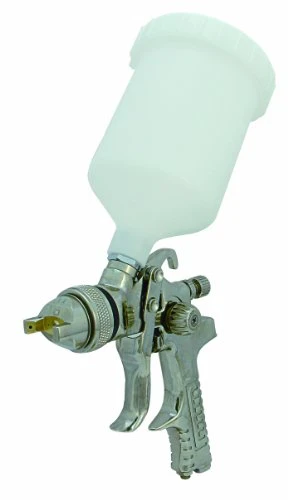

Astro Pneumatic Gravity Feed Spray Gun 1.4mm Nozzle (GF14S)
Astro Pneumatic Gravity Feed Spray Gun 1.4mm Nozzle (GF14S) delivers professional-grade performance for a variety of painting tasks. The gravity feed action ensures efficient fluid flow, using less air and providing precise control over atomization and fluid output.
This versatile spray gun features a general-purpose air cap that can handle a wide range of viscosities, making it suitable for everything from fine surface finishes to heavy body coatings. The one-pint nylon cup includes a "drip check" device to prevent spillage, making the 1.4mm nozzle spray gun perfect for professional use.
Specifications and Dimensions
Nozzle Size: 1.4 mm
Operation Pressure: 30-70 psi
Net Weight: 2-1/2 lbs. (1.1 kg)
Dimensions (W x H): 6" x 13-1/2"
Average Air Consumption: 6-12 cfm
Air Inlet Thread NPT: 1/4"
Required Compressor: 3 hp
Max. Pattern at 8" Distance: 8-1/4" (210 mm)
Key Features and Benefits
Gravity feed action for efficient fluid flow and control
General purpose air cap for spraying enamels, lacquers, metallics, and urethane
Handles various viscosities from fine finishes to heavy coatings
Forged aluminum gun body and air cap for durability
One-pint nylon cup with "drip check" device to prevent spillage
Product identification
- Brand: Astro Pneumatic
- Model / MPN: GF14S
