Astro Pneumatic spray gun details

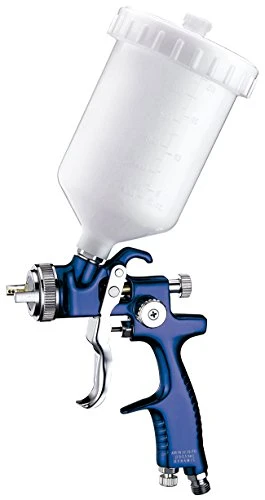

Astro Pneumatic EuroPro High Efficiency Spray Gun 1.5mm Nozzle (EUROHE105)
Astro Pneumatic EuroPro High Efficiency High Transfer Spray Gun 1.5mm Nozzle Plastic Cup (EUROHE105) offers advanced technology to improve your painting projects. This spray gun cuts down on spray time and requires less overlap than traditional HVLPs, making it perfect for professional use.
This EUROHE105 1.5mm spray gun nozzle features a unique pattern for great coverage and optimal overlapping, providing superior atomization. The durable and lightweight design includes an anodized body for corrosion protection and a slick finish for faster cleaning.
Specifications and Dimensions
Average Air Consumption: 10.5-12.5 cfm
Max. Pattern at 6" to 8" Distance: 11"-13" (280-330mm)
Nozzle Size: 1.5mm
Cup Capacity: 600ml
Operation Pressure: 29psi
Weight: 0.7lbs. (325g)
Gun Dimensions W x H: 7" x 5-34" (175mm x 145mm)
Air Inlet Thread NPT: �����
Required Compressor: 3 – 5hp
Air Hose I.D. Size: 6 – 8mm
Key Features and Benefits
Forged body for longer tool life
Anodized body for corrosion protection
Slick finish for faster & easier cleaning
Internal coated passages
Stainless steel needle and fluid tip
Unique pattern design for optimal coverage
Low overspray and superior atomization
Soft trigger pull to reduce fatigue
Innovative CNC machining for gasket-free operation
Product identification
- Brand: Astro Pneumatic
- Model / MPN: EUROHE105
