Astro Pneumatic europro forged hvlp spray gun details

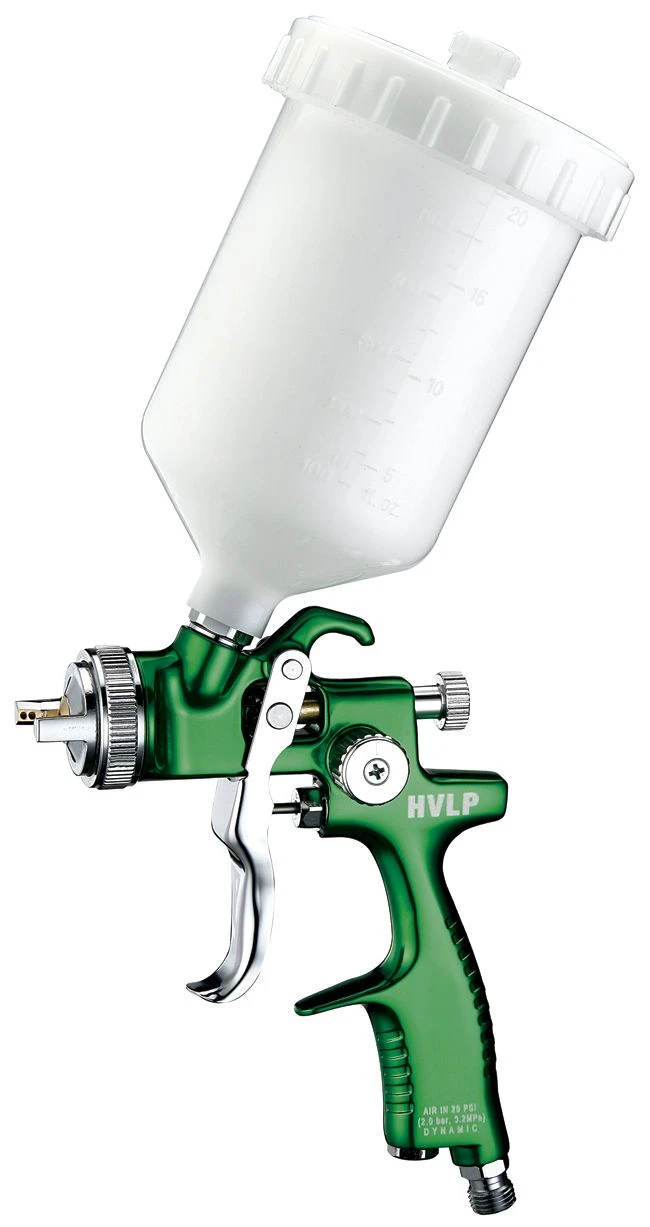

Astro Pneumatic EuroPro Forged HVLP Spray Gun 1.9mm Nozzle (EUROHV109)
Astro Pneumatic EuroPro Forged HVLP Spray Gun 1.9mm Nozzle (EUROHV109) provides a durable and lightweight solution for professional painting applications. The forged body ensures a longer tool life, while the anodized body offers corrosion protection. Internal coated passages, stainless steel needle, and fluid tip enhance the overall performance.
This EuroPro HVLP spray gun features a unique pattern designed for great coverage and optimal overlapping, reducing overspray and increasing transfer efficiency. The innovative, advanced HVLP technology ensures superior atomization.
Specifications and Dimensions
Nozzle Size: 1.9mm
Cup Capacity: 600ml
Operation Pressure: 29psi
Weight: 0.7lbs (325g)
Gun Dimensions W x H: 7" x 5-34" (175mm x 145mm)
Air Consumption: 9-10cfm
Air Inlet Thread NPT: 1/4"
Required Compressor: 2-5hp
Pattern at 4" to 7" Distance: 9" – 10-14" (230-260mm)
Air Cap Output: 10psi
Air Hose I.D. Size: 6-8mm
Compatible Adapters: 3M Adapter: 9, 16016; Norton Paint System Adapter: 21664 9A; DeVilBiss DeKups: DPC-10; SATA’s Adapter #13 Part #150136
Key Features and Benefits
DURABLE & LIGHTWEIGHT
Forged body provides longer tool life
Anodized body for corrosion protection
Internal coated passages
Stainless steel needle and fluid tip
Slick finish for faster & easier cleaning
Lightweight: 325 grams (0.7 lbs)
Unique pattern designed for great coverage, optimal overlapping
Low overspray (bounce back)
Great transfer efficiency
Superior atomization
Innovative, advanced HVLP technology
QUICK THREAD TECHNOLOGY
1 Turn to lock/unlock the air cap
3 Turns to lock/unlock the fluid tip
Wide threads for easy cleaning
M16*P1.5 female thread fluid joint
Compatible with most traditional and disposable cup systems
SMOOTH OPERATION
Soft trigger pull to reduce fatigue
Precise lubricated adjustment knobs for better control
Innovative CNC machining to avoid the need for gaskets behind the fluid tip
Product identification
- Brand: Astro Pneumatic
- Model / MPN: EUROHV109
